Power Harness - Polaris Hilux Maxx User Manual

What's in the Box & Wiring Diagram
1) Hilux Maxx Unit.
2) Toyota Hilux Patch Loom
3) GPS External Antenna.
4) External Bluetooth Microphone.
5) RR,RL,FR,FL Aud Out & SUB / VID out 1&2 cable.
6) VID in / AUX L / AUX R cable.
7) CAM in / Front CAM IN cable.
8) 2 x USB cables / Bluetooth mic input cable.
9) Polaris Reverse Camera with RCA adaptor.

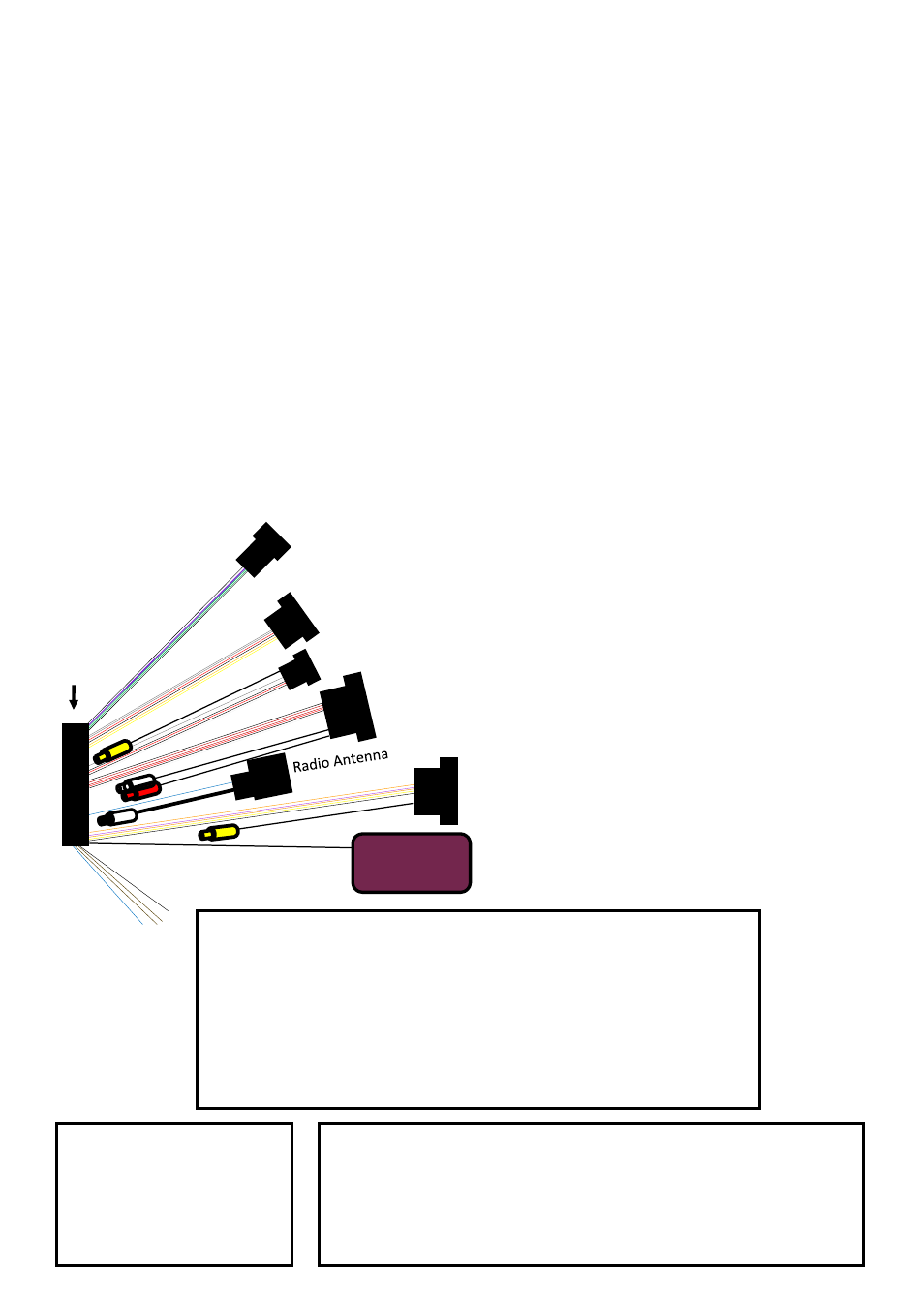

Power Harness

Connects to
Hilux Maxx
Brown Wire—Key 1
Brown Wire with black stripe—Key 2
Black wire—Ground
Blue wire with white stripe—Amp Control
Notes:
steering wheel controls. Otherwise the steering wheel controls all run through the
canbus module and do not need programming in.
RCA plugs
Red RCA: AUX in R
White RCA: Aux in L
Yellow RCA plugs: Cam in
5 pin plug— Rear Speakers: plugs into OEM Harness
8 pin plug— Main power + Front speakers: plugs into OEM harness
7 pin plug— Older style Toyota Reverse Camera input (generally not used for current model Hilux)
15 pin plug—steering wheel controls, reverse trigger + more: plugs into OEM harness.
Canbus Module
Key 1, Key 2 and Gnd wire not needed unless you want to program in your
Notes about wiring in the OEM Toyota Reverse Camera:
Just plugging the Original Toyota reverse camera into the 6 pin plug is not
enough to get the camera working. Please make sure you ALSO plug the Cam in
RCA plug coming from that particular plug into the Cam in RCA input that plugs
into the back of the Hilux Maxx.
6 pin plug— Hilux OEM Reverse Camera input (generally used for current model Hilux)
