MuchMoreWater BlueBox 150 RO Wall Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BlueBox 150 RO Wall
Operating manual
PURE WATER –
ANYTIME
–
ANYWHERE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueBox 150 RO Wall and is the answer not in the manual?

Questions and answers

Related Manuals for MuchMoreWater BlueBox 150 RO Wall

Summary of Contents for MuchMoreWater BlueBox 150 RO Wall

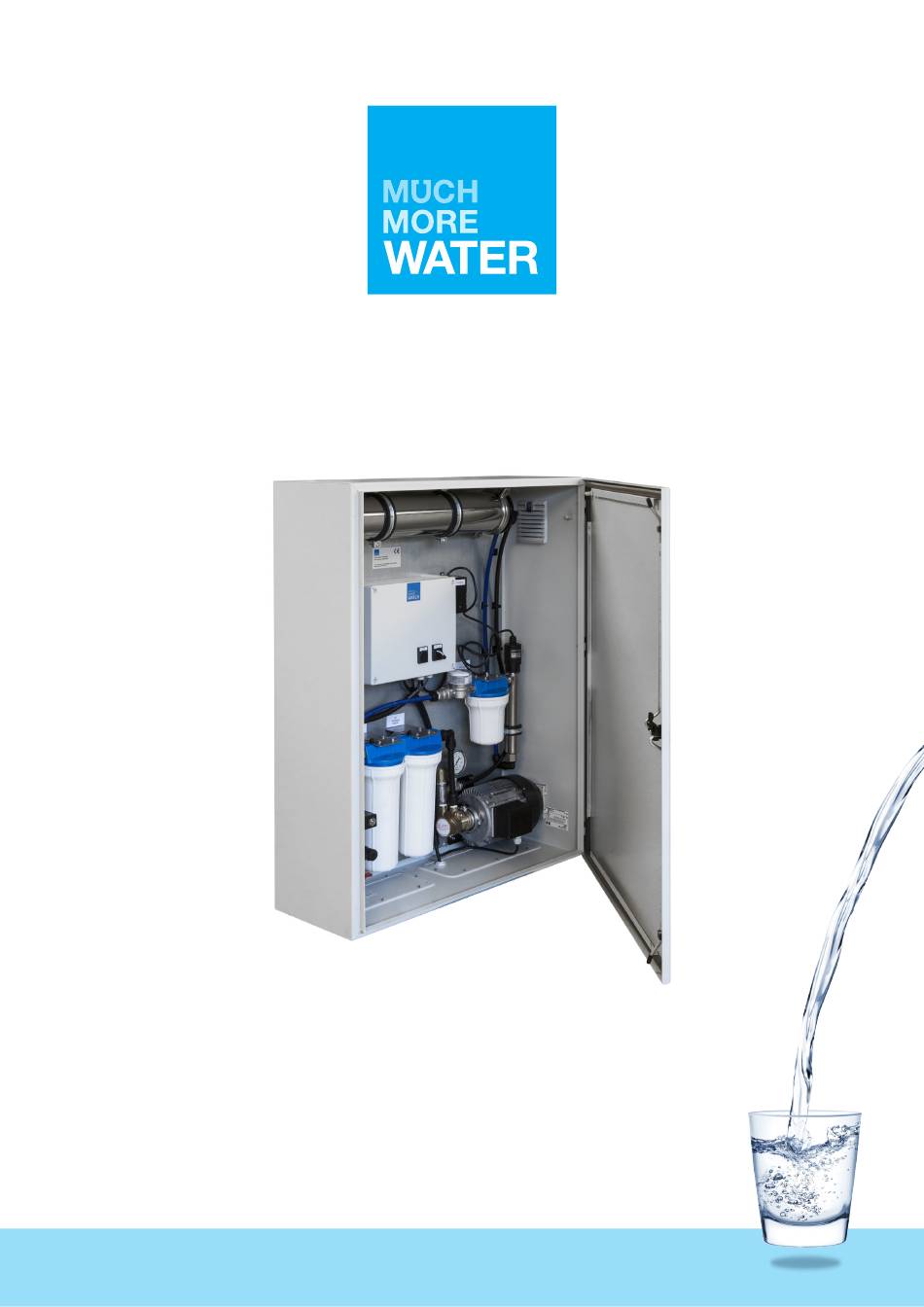

  • Page 1 BlueBox 150 RO Wall Operating manual PURE WATER – ANYTIME – ANYWHERE...
  • Page 2 BlueBox 150 RO Wall RO membrane ON / OFF UV-LIGHT Solenoid valve/ System primer button 0 BAR 8 BAR SOLENOID VALVE Adjustment valve UV-light Pressure valve Water meter 100 150 Activated Carbon filter housing Pressure gauge Motor Pump Clean Flush...
  • Page 3 The BlueBox 150 RO Wall will provide approximately 150 litres per hour of pure drinking water. The unit is delivered ready for operation; only leaving wall-mounting, connection to power and water inlet, as well as water outlet.
  • Page 4 UV-LIGHT PART 1 STARTING THE BLUEBOX 0 BAR 8 BAR SOLENOID VALVE Mount correct electrical plug to the supplied mains wire. Connect the unit to a 230 V power supply. 100 150 UV-LIGHT UV-LIGHT Pressure valve Before starting the pump, the 0 BAR 8 BAR blue pressure valve must be...
  • Page 5 Pressure valve Let the pump run for 1-2 minutes 0 BAR 8 BAR until no more bubbles are SOLENOID VALVE detected from the red hose. Turn the blue pressure valve clockwise until pressure is approximately 8 bars. UV-LIGHT UV-lamp Check that the UV lamp is active, indicated by the LED light located at the top of the UV-light housing.

  • Page 6: Part 4 Maintenance

    PART 4 MAINTENANCE Daily OE ring Cleaning of the three filters cartridges: a) Screw off the three filters housings using the supplied tool. b) Remove the filter from the UV-LIGHT housing and rinse both with clean water. IMPORTANT 0 BAR 8 BAR The filters must NOT be wrought SOLENOID...

  • Page 7: Every Month

    EVERY MONTH • Check that all the connections and clamps are tightened correctly. • Ensure that filter cartridges, membranes and UV-light bulb are fittet correctly. • Check that the drainage pipes in the container are not blocked. • Check all hoses for holes, tears and other signs of damage and water leakage. •...
  • Page 8 PUMP CLEAN WATER After more than 14 days of standstill and before storing, the BlueBox 150 RO Wall must undergo a complete cleaning process. To clean the unit, plug in an external pump to the black hose as indicated in this illustration.
  • Page 9 Cleaning procedure with Sodium Hydroxide and Nitric Acid (For example RoClean P303 and RoClean P111) Un-screw the three filter housings and pull out OE ring the filter cartridges. Screw the filter housings back onto the mounts without the filters in. Acid Cleaning (RoClean P303) Dilute 200 gsm of RoClean P303 in 10 litres of water.

  • Page 10: Part 6 Uv-Lamp

    PART 6 UV-LAMP Potential Hazard Safety Measures UV Exposure Never illuminate UV Lamp outside of the UV Chamber. Never look directly at illuminated UV Lamp, even when using protective gear. Always use protective gear, including gloves and UV safety glasses. If accidental exposure occurs, immediately cool affected area and consult physician.
  • Page 11 Display Lamp timer display Counts down from 365 days to show time for annual lamp replacement. Lamp timer reset After installing a new lamp, press and hold for five seconds to reset Lamp timer to 365. Alarm Press to silence audible alarm. When the alarm is due to the lamp’s age, the mute button will silence the audible alarm for 7 days;...
  • Page 12 If any faults should occur… SYMPTOM REASON SOLUTION Pump cannot Absorption tube is not filled with water. Dismantle black absorption hose and fill with water. produce any pressure Contra vent in absorption tube is stuck. Take apart contra vent and clean inside. Membranes in pump are defective.

  • Page 13: Important Note

    For long term storage in freezing temperatures, please contact Much More Water at info@muchmorewater.com. • As an industrial standard for Reverse Osmosis, the output of the membranes decreases in proportion with the temperature of the raw water: 3 % reduction per 1 ºC measured from 25 ºC.
  • Page 16 PURE WATER – ANYTIME – ANYWHERE Much More Water A/S Staerkendevej 43 DK-4000 Roskilde • phone: +45 8020 8020 info@MuchMoreWater.com www.MuchMoreWater.com...
