Technical Note
Active Camera Link Cable Options For sCMOS Platforms
This tech note details the accessory required to extend the maximum cable distance between the Neo or Zyla
sCMOS camera and the frame grabber card, by using active Camera Link cable. An active cable contains circuitry
separately powered that augmenting the carried signals

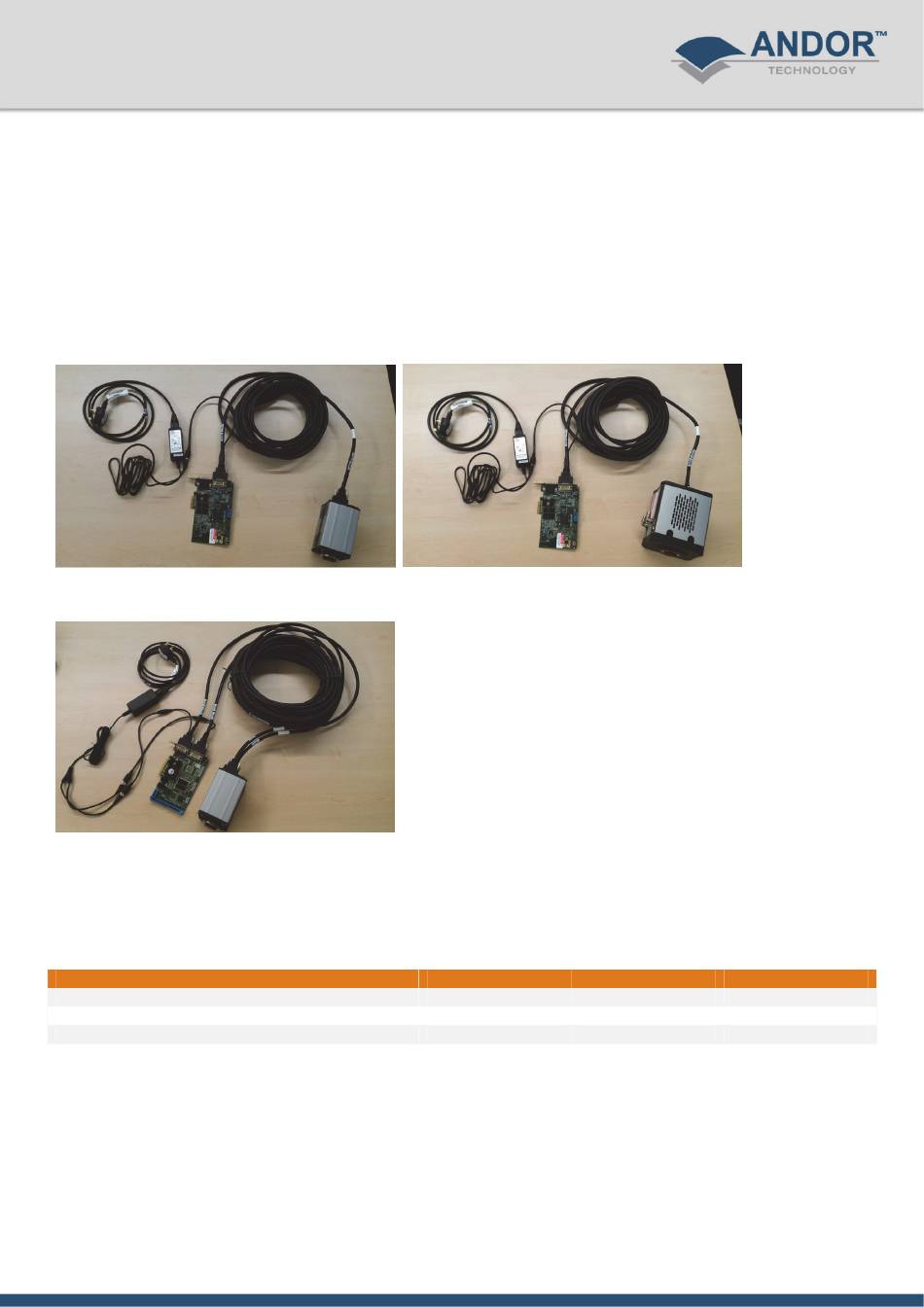

ACC-ASE-06931 With Zyla 3 Tap
ACC-ASE-06969 With Zyla 10 Tap
The sCMOS platforms use Camera Link format cable(s) to transfer the image data from the camera head to the PC.
The maximum distance which can be achieved with a standard Camera Link cable between the camera and the
frame grabber is 5 meters, due to the high bandwidth requirements of the Camera Link protocol. When using an
active cable it is possible to extend this distance. Active cables with lengths up to 10 meters have been verified for
all the sCMOS camera systems.
Cable Type
Standard Camera link cable [ACC-ASE-02992]
Active Camera link cable [ACC-ASE-06931]
Active Camera link cable [ACC-ASE-06962]
ACC-ASE-06931 With Neo 3 Tap
Interface Option
3 Tap & 10 Tap
3 Tap Only
10 Tap Only
Platform
Max. Distance
Neo & Zyla
5 meters
Neo & Zyla
10 meters
Zyla Only
10 meters
Advertisement
Related Manuals for Andor Technology ACC-ASE-06969
Summary of Contents for Andor Technology ACC-ASE-06969
- Page 1 ACC-ASE-06931 With Zyla 3 Tap ACC-ASE-06931 With Neo 3 Tap ACC-ASE-06969 With Zyla 10 Tap The sCMOS platforms use Camera Link format cable(s) to transfer the image data from the camera head to the PC. The maximum distance which can be achieved with a standard Camera Link cable between the camera and the frame grabber is 5 meters, due to the high bandwidth requirements of the Camera Link protocol.
- Page 2 Active Cable Setup The following diagram illustrates the ‘BitMaxx’ 10 meter active Camera Link cable used in both ACC-ASE-06931 and ACC-ASE-06962. Figure 1 – Active Cable used in both ACC-ASE-06962 and ACC-ASE-06962 The cable(s) only require a single power source which can be plugged into the power connector on the PC/Frame Grabber end of each of the cables.
-
Page 3: Important Notes
Ordering Information Accessory Cables & Power Unit Platform, Interface Option ACC-ASE-06931 1 x 10 meter Active Camera Link Cable & Single PSU Neo, 3 Tap or Zyla, 3Tap ONLY 2 x 10 meter Active Camera Link Cable & Single PSU ACC-ASE-06962 Zyla, 10 Tap ONLY for both cables...
