Summary of Contents for Vizi-tec SBT-4K

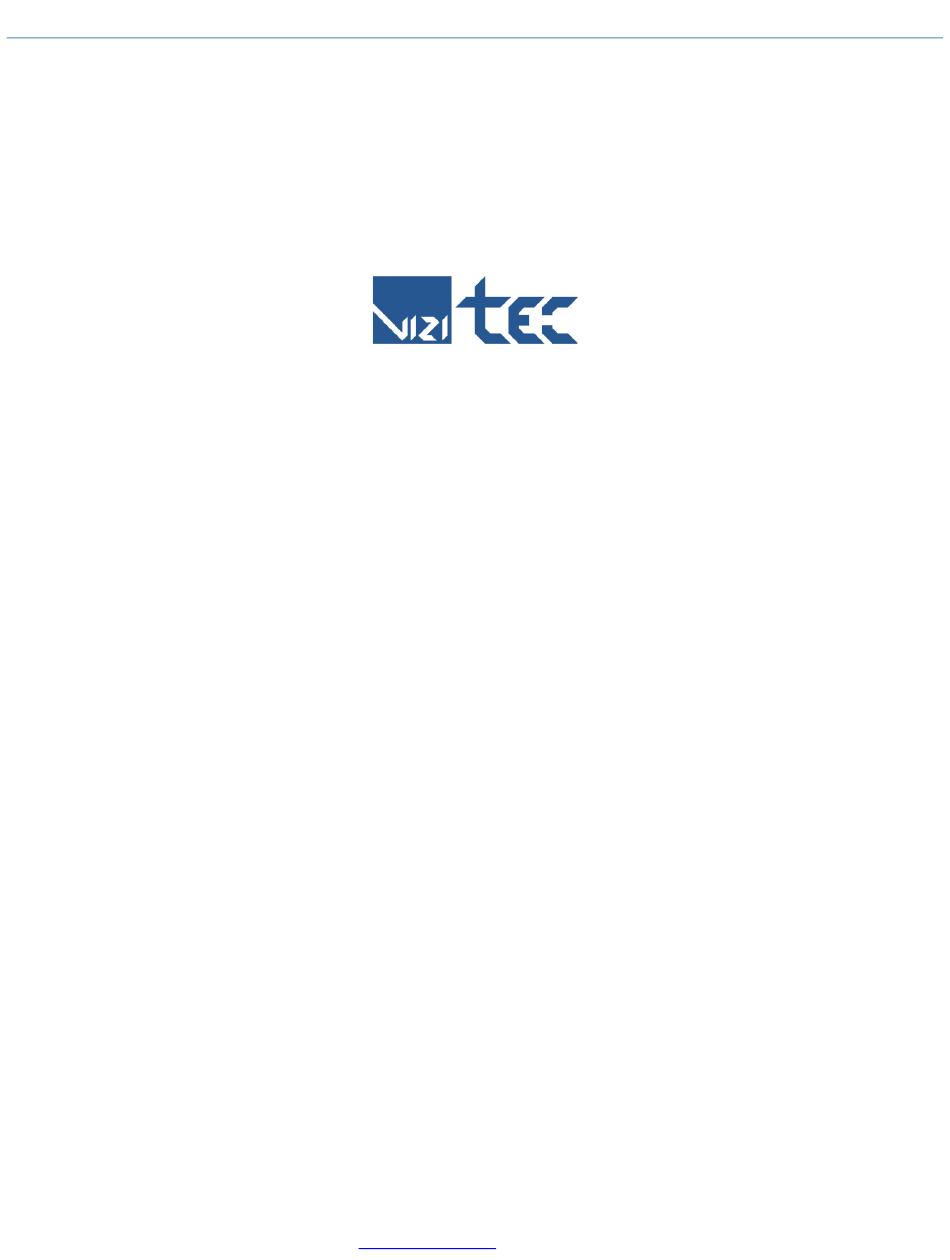

- Page 1 November 26, 2017 Vizible Technologies SupaBrake Third Brake Light Modulator 4K (SBT-4K) aka. SBT-4096 User Guide Rev 1.1 Page 1 of 24 Contact email@vizi-tec.com for more information...
-
Page 2: Table Of Contents
November 26, 2017 Table of Contents Warranty & Specification, 3 Features & Functions, 4 Product Application, 5 Profile Selector, 6 Grace Period, 7 Frequency, 8 Modulation, 9 Slope, 10 Decay, 11 Appendix A (Time Segment vs. Grace Period), 12 Appendix B (Time Segment vs. -
Page 3: Warranty & Specification
November 26, 2017 WARRANTY & SPECIFICATION: 3 Year Limited Warranty! We take pride in our products and stand 100% behind our design, workmanship and most importantly customer satisfaction. We offer a full 3 year limited warranty with this product. -
Page 4: Features & Functions
Figure 1 shows the 12 selectable position toggle switch. From left to right are positions 1 thru 12. The SBT-4K is specifically designed to work with any two-wire brake light devices - bulbs or LEDs. Such as those commonly found on the rear window of cars and trucks;... -
Page 5: Grace Period
(Usage = Automatic) The SBT-4K will not modulate the brake light if the brakes are applied more than once within a certain time period. This is very useful in heavy traffic so as not to annoy the person in the vehicle following behind. Its attribute can be set to 0 seconds, 3 seconds, 6 seconds or 12 seconds. -
Page 6: Frequency
(Usage = Manual) The SBT-4K allows the user to reconfigure the behavior of the profile on the fly with its 12 selectable slide switches. Figure 1 shows the slide switch. From left to right are positions 1 thru 12. The red arrow depicts toggle position 1 located far left. Shown in the “ON”... - Page 7 November 26, 2017 ATTRIBUTE DEFINITIONS: Attribute#1 – GRACE PERIOD definitions: (switch location) SWT 1 SWT 2 SWT 3 SWT 4 SWT 5 SWT 6 SWT 7 SWT 8 SWT 9 SWT 10 SWT 11 SWT 12 Toggle Switch Position...
- Page 8 November 26, 2017 Attribute#2 - FREQUENCY definitions: (switch location) SWT 1 SWT 2 SWT 3 SWT 4 SWT 5 SWT 6 SWT 7 SWT 8 SWT 9 SWT 10 SWT 11 SWT 12 Toggle Switch Position Value 3=Off 4=Off 5=Off...
- Page 9 November 26, 2017 Attribute#3 - MODULATION definitions: (switch location) SWT 1 SWT 2 SWT 3 SWT 4 SWT 5 SWT 6 SWT 7 SWT 8 SWT 9 SWT 10 SWT 11 SWT 12 Toggle Switch Position Value 6=Off 7=Off 8=Off...
- Page 10 November 26, 2017 Attribute#4 - SLOPE definitions: (switch location) SWT 1 SWT 2 SWT 3 SWT 4 SWT 5 SWT 6 SWT 7 SWT 8 SWT 9 SWT 10 SWT 11 SWT 12 Toggle Switch Position Value 9=Off 10=Off...
- Page 11 November 26, 2017 Attribute#5 - DECAY definitions: (switch location) SWT 1 SWT 2 SWT 3 SWT 4 SWT 5 SWT 6 SWT 7 SWT 8 SWT 9 SWT 10 SWT 11 SWT 12 Toggle Switch Position Value 11=Off 12=Off...
-
Page 12: Slope
November 26, 2017 Appendix A: Time Segments vs. Grace Period (seconds) 0 sec 3 sec 6 sec 9 sec 12 sec 15 sec 20 sec 30 sec 40 sec 60 sec Slope3 Slope4 Slope5 Slope6 Page 12 of 24 Contact email@vizi-tec.com... -
Page 13: Appendix B (Time Segment Vs. Modulation)
November 26, 2017 Appendix B: Time Segments vs. Modulation (pulses) Aggressive Aggressive Aggressive Aggressive Berserk Berserk Berserk Berserk Relaxed Standard Page 13 of 24 Contact email@vizi-tec.com for more information... - Page 14 You may not find one specific to your vehicle. Reason being we stopped making model specific installation as these are very simple; Read one and you’ve read them all. If you have questions or comments please send us an email at email@vizi-tec.com. Universal version – A more complex.
- Page 15 Cut and splice open the (+)Hot/Signal wire of the vehicle’s third brake light. Connect the source side with red wire from SBT-4K Connect the load(brake light) side with white wire of SBT-4K.. Turn on vehicle and test. Done! Page 15 of 24 Contact email@vizi-tec.com...
- Page 16 November 26, 2017 Case Access: To access the switch use a coin such as a US quarter or a large flat head screwdriver as shown below. The top-cover will pop out with the printed circuit board to allow access to the profile switch. After the preferred profile is set the top-cover will easily slide and snap back into the case.
-
Page 17: Faq
I don’t see a kit for my car/truck? How do I get one made? Send us an email at email@vizi-tec.com and let us know the year/model of your bike. If the bike model is 5 years or newer we’ll work with you to make a custom kit for half the price. - Page 18 The low down is that the output is NOT based on a fixed set of pulses as seen on other modulators on the market. But rather how much, how fast, how soon and when you program it to burst. Lost or have questions? Send us an email at email@vizi-tec.com Page 18 of 24 Contact email@vizi-tec.com...
-
Page 19: Cheat Sheet
November 26, 2017 CHEAT SHEET: Attribute #1 Attribute #2 Attribute #3 Attribute #4 Attribute #5 GRACE PERIOD FREQUENCY MODULATION SWT TOGGLE POSITION (seconds) (Hz) (# of pulses) SLOPE DECAY 1=Off 2=Off 0 (no delay) 1=Off 2=On 1=On 2=OFF 1=On 2=On...
