GW PL ETH/...-BUS
User manual
UM EN GW PL ETH/...-BUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW PL ETH/UNI-BUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phoenix Contact GW PL ETH/UNI-BUS

Summary of Contents for Phoenix Contact GW PL ETH/UNI-BUS

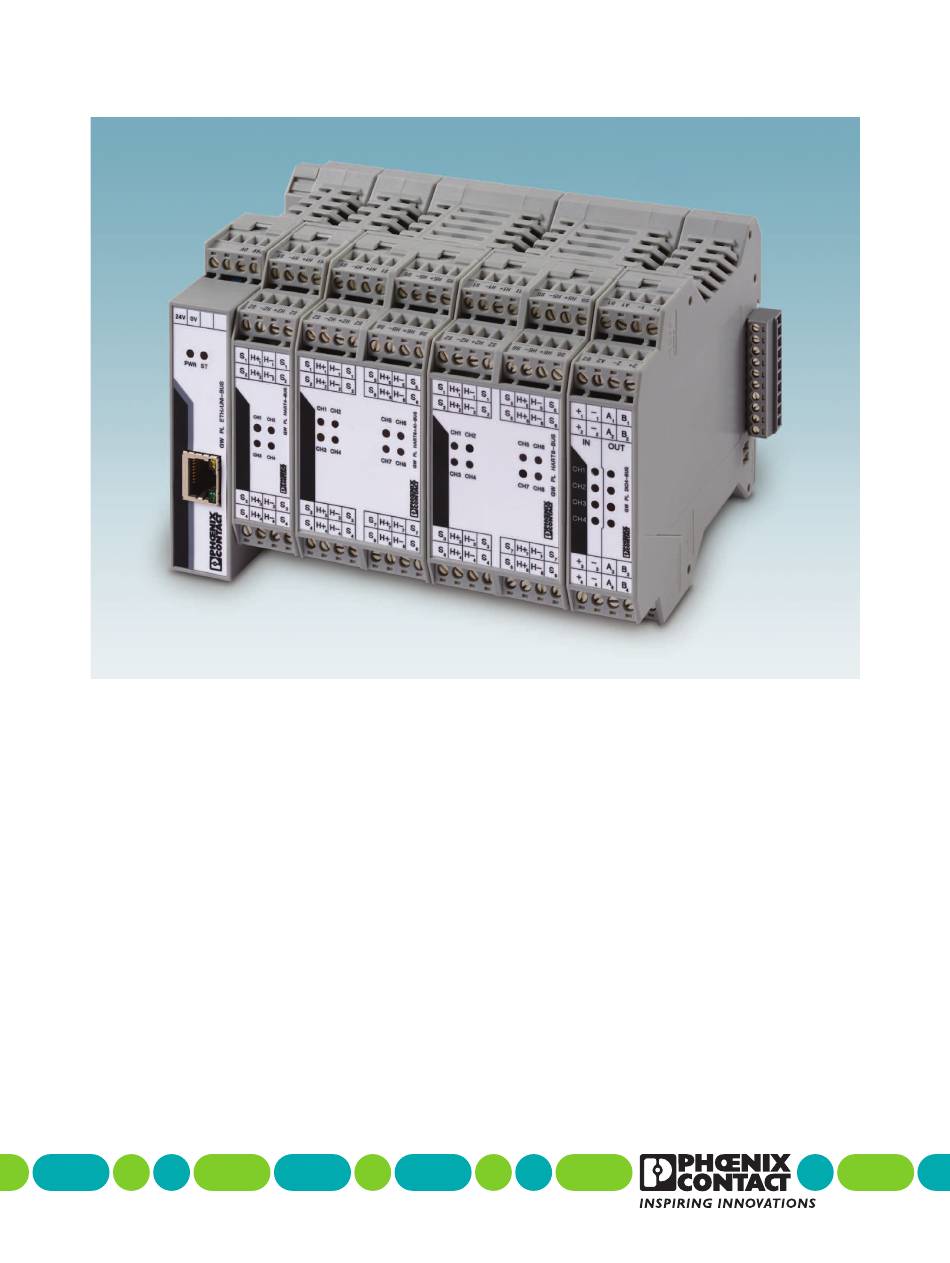

  • Page 1 GW PL ETH/...-BUS User manual UM EN GW PL ETH/...-BUS...

  • Page 2: Gw Pl Eth

    2702321 GW PL HART4-BUS 2702234 GW PL HART4-R-BUS 2702879 GW PL HART8-BUS 2702235 GW PL HART8-R-BUS 2702880 GW PL HART8+AI-BUS 2702236 GW PL DIO4-BUS 2702237 PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com...

  • Page 3: Table Of Contents

    Login ....................17 Configuration via web server ................18 4.2.1 General settings ...................18 4.2.2 LAN configuration ................19 4.2.3 Diagnostics ..................20 4.2.4 Protocol settings ..................22 4.2.5 Device maintenance ................28 Troubleshooting........................31 Resetting the device ....................31 LEDs........................32 Technical appendix........................33 Modbus mapping....................33 1/46 3433_en_C PHOENIX CONTACT...
  • Page 4 GW PL ETH/…BUS Appendixes..........................39 List of figures ...................... 39 List of tables ....................... 41 Index........................43 2/46 PHOENIX CONTACT 3433_en_C...

  • Page 5: For Your Safety

    Changes or modifications to hardware and software of the device are not permitted. Incorrect operation or modifications to the device can endanger your safety or damage the device. Do not repair the device yourself. If the device is defective, please contact Phoenix Contact. 3/46 3433_en_C...

  • Page 6: Safety Notes

    The IP20 degree of protection (EN 60529) of the device is intended for a clean and dry environment. Do not subject the device to any load that exceeds the prescribed limits. The device is not designed for use in environments with danger of dust explosions. 4/46 PHOENIX CONTACT 3433_en_C...

  • Page 7: System Description

    Ethernet network. Up to five fieldbus-specific expansion modules can be connected, and the field device data can be accessed using FDT/DTM, HART IP, and Modbus TCP. The GW PL ETH/UNI-BUS head station also adds PROFINET communication. The head station features an embedded web server for configuring the device, as well as a CommDTM for use with an FDT Frame application, such as PACTware.

  • Page 8: Connections

    Connect a CAT5 or better Ethernet cable to the RJ45 port on the GW PL ETH/…BUS and an Ethernet network (switch). Both crossover (C/O) or 1:1 cables are acceptable, as the GW PL ETH/…BUS has autocross capability. The cable should not exceed 100 m in length. 6/46 PHOENIX CONTACT 3433_en_C...

  • Page 9: Gw Pl Hart

    GW PL HART4-BUS/GW PL HART4-R- BUS structure Item Function Channel 1 connector Channel 2 connector Channel 3 connector Channel 4 connector Status LEDs (one per channel) BUS connector Figure 2-3 GW PL HART4-BUS/GW PL HART4-R-BUS structure 7/46 3433_en_C PHOENIX CONTACT...

  • Page 10: Connections

    Figure 2-5 Figure 2-8. An optional isolator or repeater power supply may be installed. GW PL HART/...-BUS H+ H- A Optional isolator or >250 Ω repeater power supply 4...20 mA HART Figure 2-5 HART analog in connection 8/46 PHOENIX CONTACT 3433_en_C...

  • Page 11: Hart Analog Out Connection

    Figure 2-7 HART analog in connection to a GW PL HART…-R-BUS GW PL HART...-R-BUS 24 V 0 V A Optional isolator or repeater power supply Figure 2-8 HART analog out connection to a GW PL HART…-R-BUS 9/46 3433_en_C PHOENIX CONTACT...

  • Page 12: Gw Pl Hart8+Ai-Bus Expansion Module

    Channel 1 connector Channel 2 connector Channel 3 connector Channel 4 connector Channel 5 connector Channel 6 connector Channel 7 connector Channel 8 connector Status LEDs (one per channel) BUS connector Figure 2-9 GW PL HART8+AI-BUS structure 10/46 PHOENIX CONTACT 3433_en_C...

  • Page 13: Connections

    2-11. An optional isolator or repeater power supply may be installed. GW PL HART8+AI-BUS Figure 2-10 HART direct connection with current power GW PL HART8+AI-BUS A Optional isolator or repeater power supply Figure 2-11 Intrinsically safe HART connection 11/46 3433_en_C PHOENIX CONTACT...

  • Page 14: Gw Pl Dio4-Bus

    Status LEDs (two per channel) BUS connector Figure 2-12 GW PL DIO4-BUS structure 2.4.1 Connections Digital input Connect any digital input field devices according to Figure 2-13. 0…30 V DC Figure 2-13 Typical digital input connection 12/46 PHOENIX CONTACT 3433_en_C...

  • Page 15: Typical Digital Output Connection

    System description Digital output Connect any digital output field devices according to Figure 2-14. 24 V DC Figure 2-14 Typical digital output connection 13/46 3433_en_C PHOENIX CONTACT...
  • Page 16 GW PL ETH/…BUS 14/46 PHOENIX CONTACT 3433_en_C...

  • Page 17: Installation

    H – H – H – H – H – H – H – H – H – – H – – H – H – H – – – Figure 3-2 Module and terminator plug installation 15/46 3433_en_C PHOENIX CONTACT...
  • Page 18 Slide the last terminator to the right, away from the head station. Using a screwdriver, release the latch and rotate the bottom of the module off the DIN rail. Lift the module off the top rail and remove. 16/46 PHOENIX CONTACT 3433_en_C...

  • Page 19: Programming

    The proxy setting must be “Load automatically” or “Deactivated” to properly establish communication. Enter the credentials to access the web server configuration pages. The default credentials are: User name: Admin Default password: admin 17/46 3433_en_C PHOENIX CONTACT...

  • Page 20: Configuration Via Web Server

    Powering multiple devices with factory default IP addresses will cause a network conflict, and incorrect parameters may be set in the GW PL ETH/UNI-BUS modules. When programming modules for the first time, it is important to apply power to only one at a time, and change the IP address of each module to a unique IP address.

  • Page 21: Lan Configuration

    – LAN IP Address: Chose the method the network uses to obtain IP addresses. If a DHCP server on the network assigns IP addresses, click the “Using DHCP to get an IP address” option button. 19/46 3433_en_C PHOENIX CONTACT...

  • Page 22: Diagnostics

    Click the “Live list” link under each module to view information about the HART devices connected to that module. 4.2.3.1 Live list The “Live list” page displays information about all devices connected to the selected GW PL ETH/…BUS expansion module. Figure 4-6 “Live list” page 20/46 PHOENIX CONTACT 3433_en_C...

  • Page 23: Status Codes

    0x10 Out of specification Environmental conditions (temperature, hu- midity, etc.) are outside the device’s permissi- ble range. 0x20 Function check Work or maintenance is currently being per- formed on the specific device. 21/46 3433_en_C PHOENIX CONTACT...

  • Page 24: Protocol Settings

    HART parameters from the field devices and populates the correct Modbus registers. The polling address of any HART devices must be set to 0. Click the “Apply changes” button to save changes. 22/46 PHOENIX CONTACT 3433_en_C...
  • Page 25 Choose a COM port number, and enter the IP address of the GW PL ETH/…BUS and ARCOM TCP port number. Click the “OK” button to create the virtual COM port. Figure 4-8 “Create New Port” dialog box 23/46 3433_en_C PHOENIX CONTACT...
  • Page 26 “Add Device Type” dialog box Start the “Network Configuration” tool in AMS, and select Multiplexer Network. Click the “Install” button and follow the prompts to the “Connection” screen. Figure 4-10 “Select Network Component Type” dialog box 24/46 PHOENIX CONTACT 3433_en_C...
  • Page 27 Launch AMS Device Manager. The GW PL ETH/…BUS should appear. Right click on the icon, and select Rebuild Network from the context-sensitive menu. AMS will scan for HART devices connected to the GW PL ETH/…BUS. Figure 4-12 Device Explorer 25/46 3433_en_C PHOENIX CONTACT...
  • Page 28 4.2.4.4 PROFINET configuration (GW PL ETH/UNI-BUS only) When the GW PL ETH/UNI-BUS is used with GW PL HART… expansion modules, the process variables of a HART device can be accessed via PROFINET. The PROFINET slot address is determined via the GSDML Creation Tool.

  • Page 29: Gsdml Creation Tool

    Click the desired expansion module in the upper window that is physically installed next to the GW PL ETH/…BUS head station. Expansion modules must be selected and displayed in the same order as they are physically installed. 27/46 3433_en_C PHOENIX CONTACT...

  • Page 30: Device Maintenance

    GW PL ETH/…BUS to the host system. An FDT container can be downloaded from phoenixcontact.com. 4.2.5 Device maintenance Click the “Device Maintenance” tab to access the available maintenance functions of the GW PL ETH/…BUS head station. 28/46 PHOENIX CONTACT 3433_en_C...

  • Page 31: Restore Defaults" Page

    The “Password” field is case sensitive. The user name is fixed and cannot be modified. To change a password, enter the current password and the new password (twice) in the appropriate fields. Click the “Apply Changes” button to save changes. 29/46 3433_en_C PHOENIX CONTACT...

  • Page 32: Log Files" Page

    “Apply Changes” button to install the firmware. NOTE: Ensure a reliable power connection is available during the firmware update. Do not restart the module or disconnect the Ethernet cable during this process. When firmware is updated, the device configuration will be lost. 30/46 PHOENIX CONTACT 3433_en_C...

  • Page 33: Troubleshooting

    Reset button Figure 5-1 GW PL ETH/UNI-BUS reset button While connected to the power source: Press and hold the reset button for at least five seconds. Reinitializing the module and firmware reset may take some time. Do not disconnect from power.

  • Page 34: Leds

    GW PL ETH/…BUS LEDs The GW PL ETH/UNI-BUS and GW PL ETH/BASIC-BUS include two LEDs. Table 5-1 Head station LEDs Label Indication Description Power supplied, normal operation No power: Check power source Device is booting Normal operation Flashing (1 Hz)

  • Page 35: A Technical Appendix

    Float 30259 (MSW) 30260 (LSW) Tertiary Variable (TV) Read Float 30261 (MSW) 30262 (LSW) Quaternary Variable (QV) Read Float 30263 (MSW) 30264 (LSW) Status Read Word 30265 † Loop Current Read Float 33207 (MSW) 33208 (LSW) 33/46 3433_en_C PHOENIX CONTACT...
  • Page 36 Float 30286 (MSW) 30287 (LSW) Tertiary Variable (TV) Read Float 30288 (MSW) 30289 (LSW) Quaternary Variable (QV) Read Float 30290 (MSW) 30291 (LSW) Status Read Word 30292 † Loop Current Read Float 312423 (MSW) 312424 (LSW) 34/46 PHOENIX CONTACT 3433_en_C...
  • Page 37 30314 (LSW) Tertiary Variable (TV) Read Float 30315 (MSW) 30316 (LSW) Quaternary Variable (QV) Read Float 30317 (MSW) 30318 (LSW) Status Read Word 30319 *Loop Current (GW PL Read Float 321639 (MSW) HART8+AI-BUS only) 321640 (LSW) 35/46 3433_en_C PHOENIX CONTACT...
  • Page 38 1 to turn on the output channel and writing a 0 to turn off the output channel (see Table A-4 on page 37). The Modbus TCP client must support Modbus slave IDs in conjunction with the IP address of the Modbus TCP server (the GW PL ETH/…BUS head station). 36/46 PHOENIX CONTACT 3433_en_C...

  • Page 39: Status Word

    GW PL DIO4-BUS Modbus (Input registers) Modbus input 30002 register Bit number Module channel number Table A-4 GW PL DIO4-BUS Modbus (Output registers) Modbus output 40002 register Bit number Module channel DO4 DO3 DO2 DO1 number 37/46 3433_en_C PHOENIX CONTACT...
  • Page 40 GW PL ETH/…BUS 38/46 PHOENIX CONTACT 3433_en_C...

  • Page 41: Appendixes

    Figure 3-2: Module and terminator plug installation ..........15 Section 4 Figure 4-1: Log-in screen ..................17 Figure 4-2: “Home” screen of the GW PL ETH/UNI-BUS ........18 Figure 4-3: “General Settings” page ..............18 Figure 4-4: “LAN Settings” page ................19 Figure 4-5: “Diagnostics” page ................20 Figure 4-6: “Live list”...
  • Page 42 “Passwords” page ................29 Figure 4-19: “Log Files” page ..................30 Figure 4-20: “Update Firmware” page ..............30 Section 5 Figure 5-1: GW PL ETH/UNI-BUS reset button .............31 Appendix A Figure A-1: Slave ID designation for expansion modules ........33 40/46 PHOENIX CONTACT 3433_en_C...

  • Page 43: B 2 List Of Tables

    Table 5-1: Head station LEDs................32 Table 5-2: Channel LEDs..................32 Appendix A Table A-1: Modbus registers .................33 Table A-2: Status word..................37 Table A-3: GW PL DIO4-BUS Modbus (Input registers)........37 Table A-4: GW PL DIO4-BUS Modbus (Output registers) ........37 41/46 3433_en_C PHOENIX CONTACT...
  • Page 44 GW PL ETH/…BUS 42/46 PHOENIX CONTACT 3433_en_C...

  • Page 45: Index

    GW PL DIO4-BUS............12 GW PL ETH/… BUS............5 GW PL HART4-BUS ............7 GW PL HART8+AI-BUS..........10 GW PL HART8-BUS ............7 Hardware reset ............31 Installation..............15 LAN configuration ............19 LEDs ................32 Live list .................20 Log files................30 Login ................17 Mounting ..............15 43/46 3433_en_C PHOENIX CONTACT...
  • Page 46 GW PL ETH/…BUS 44/46 PHOENIX CONTACT 3433_en_C...
  • Page 47 The receipt of technical documentation (in particular user documentation) does not constitute any further duty on the part of Phoenix Contact to furnish information on modifications to products and/or technical documentation. You are responsible to verify the suitability and intended use of the products in your specific application, in particular with regard to observing the applicable standards and regulations.
  • Page 48 Middletown, PA 17057 Should you have any suggestions or recommendations for improvement of the contents and layout of our manuals, please send your comments to: tecdoc@phoenixcontact.com 46/46 PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany phoenixcontact.com...
