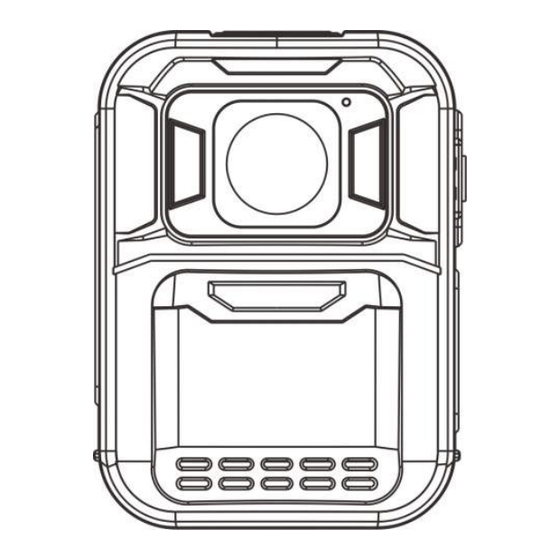

- Page 1 Version Phone support available Mon-Sat 9am-5pm EST @ 1 (844) 382-8549 www.generixllc.com/pages/body-camera PROMNICO ® Body Camera User Manual...
- Page 2 P O L I C E B O D Y C A M E R A F O R L A W E N F O R C E M E N T By PROMNICO® -- a registered trademark of Generix, LLC ã...
-
Page 3: Table Of Contents
T able of Contents Product Overview ..............1 Box Contents ................3 Downloading and Deleting Video ..........4 Downloading/Deleting on Windows ........5 Downloading/Deleting on Mac ..........7 Body Camera Part Diagram ..........11 LCD Display Overview ............15 Entering the Menu ..............16 Navigating the Menu ............. -
Page 4: Product Overview
Product Overview Phone support available Mon-Sat 9am-5pm EST @ 1 (844) 382-8549 The Promnico body camera is a next generation body camera. With a rugged over-molding design and longer battery life, it is ideal for on-duty police officers, private security officers, bouncers, cyclists, and bike messengers commuting in heavy traffic. - Page 5 Features • Night Vision: IR lights give camera the ability to record clear images/videos in low-light conditions • HEVC (H.265 coding): saves up to 40% storage space vs. competitors • GPS tagging (optional): GPS tagging enables officers to record specific location information along with body camera footage •...
-
Page 6: Box Contents
Box Contents • Body Camera • Charging Dock • USB Cable • Wall Charger • Epaulette Clip • Rotatable Crocodile Clip • User Manual... -
Page 7: Downloading And Deleting Video
Downloading and Deleting Video 1) Turn camera on by holding down the power button 2) Plug the camera into your computer (PC or Mac) 3) Enter the device password (default is 000000) 4) Make sure you see the following screen before continuing... -
Page 8: Downloading/Deleting On Windows
Downloading/Deleting on Windows 1) Once connected, open my computer to locate your device... - Page 9 2) Locate and click on the folder ‘DCIM’ 3) Locate and click on the folder with the date you are interested in 4) Locate files you want to download/delete. To download, drag it to your desktop. To delete, highlight and push the ‘del’ key on your keyboard.
-
Page 10: Downloading/Deleting On Mac
Downloading/Deleting on Mac 1) Once connected, open finder and locate your device... - Page 11 2) Locate and click on the folder with the date you are interested in...
- Page 12 3) Locate the file you are interested in, drag it to your desktop to download it, or drag to the trashcan to delete it...
- Page 13 4) VERY IMPORTANT – WHEN YOU ARE DONE, YOU MUST CLICK ON THE TRASH ICON, AND PUSH THE ‘EMPTY’ BUTTON, OR ELSE THE FILES WILL NOT BE FULLY DELETED AND STILL USE SPACE...
-
Page 14: Body Camera Part Diagram
Body Camera Part Diagram... - Page 15 Item Description Green: camera is in standby mode (Power on but not recording) Still Red: camera is in pre-record mode 1. Status Indicator Flashing Red: camera is recording video Flashing Red once: camera is taking photo Flashing Yellow: camera is recording audio only 2.
- Page 16 c) Press to switch among video, audio & photo files when playing back files on camera. a) Press to record audio when camera is in 10. Audio standby mode Recording/Mute/ b) Press to enable/disable video mute when camera is in video recording mode Change Resolution c) Hold 3 seconds to switch resolution Button...
- Page 17 a) Press to start/stop recording 15. Video Recording b) When camera is powered off, hold to Button power on and start video recording a) Press to turn IR LED on/off when IR 16. Fn Button mode is manual b) Hold to turn on/off flashlight a) Hold 3 seconds to turn on/off camera b) Press to turn LCD off, press again to wake up the screen when camera is in...
-
Page 18: Lcd Display Overview
LCD Display Overview... -
Page 19: Entering The Menu
Entering the Menu 1. Press Menu button and then enter the password (default password is 000000). 2. Enter the password by the following commands: l Press Scroll Up button to change the character to the previous letter or number. l Press Menu button to change the character to the next letter or number. -
Page 20: Menu Options And Descriptions
Menu Options and Descriptions Following is a list of the available settings and options. The bold option are the default options. Options Setting Description (default settings are bold) 2560×1440 30P 2304×1296 30P Resolution The video resolution 1920×1080 30P 1280×720 30P 848×480 30P Megapixels The photo resolution... - Page 21 S. Fine, Fine, Quality The quality of the video. Normal When on, a certain time (depend on video resolution) will be combined into the recorded video before record button is Pre-record Off, On pressed to start recording; When off, video start until the Record button is pressed to start recording.
- Page 22 setting can be selected only when car DVR mode is on. 1 min, 3min, 5 min, While recording video, the 10 min, 15 min, 30 camera will automatically Split Time min, split its recording into files of this length. 45 min When on, viewing photo file will start a slideshow where Slides Show...
- Page 23 body cameras files [Windows only]. -12 to +12 Adopt local time in real time Time Zone zone Default 0 Englsih, 简体中文 The language of the text in ，Pусский, Language camera interface Korean, Portuguese The amount of the time the camera can be idle before Off, 30 sec, 1 min, Screen Saver deactivating the display to...
- Page 24 The volume of camera speaker. This affects the loudness of video playback, 0-12 audio playback, the key tone, record warning, and Volume any other sounds played by camera. This doesn't affect Default 12 the volume of the recorded video or audio files themselves.
-
Page 25: Power On/Off
Power On/Off Power on: When the camera is off, press and hold the button for 3 seconds and the camera will enter standby mode. Power on operation order: 1. Boot image appears 2. Working status LED indicator turns green 3. Boot up music plays 4. -
Page 26: Power Saving Mode
Power Saving Mode Turning the screen on/off: In order to save power, you can turn off the screen during operation. To do so, when the camera is powered on, press button to turn the screen off while the camera is still working. To turn it back on, simply press the button again. -
Page 27: Taking Photos
2) Manual infrared mode: This is the default setting, and you can activate the IR LEDs and lens by holding the button for 1 second. Once activated, you will see the IR LED turn on and hear the lens activate. To turn off the IR LED, simply hold the button again for 1 second. -
Page 28: Snapshots
Snapshots While the camera is recording, at any time you can press the button to take a snapshot. The LCD screen will show a flashing green square, which indicates that the snapshot is generating. Video Recording In standby mode, the user may start video recording by pressing the button. -
Page 29: Post-Recording
or off, go into the settings menu by pressing (default passcode is 000000) and select [Pre-record] option. Press the button to select ON or OFF. Post-recording Delay recording works very similar to pre-recording, only this option will continue recording for a set number of seconds after the button has been pressed. -
Page 30: One-Button Video Recording
One-button Video Recording Whenever the camera is powered off, hold the button for 2 seconds to immediately turn on the camera and begin recording. One-Button Resolution Switch Hold the button until you feel a vibration. Doing this will allow you to switch the video resolution quickly between 1280*720 @30fps and 1920*1080 @ 30fps. -
Page 31: Time Setting
press to save and exit. Device ID and user ID will be watermarked at the bottom right of all video taken, along with the date and time. Time Setting Go into the settings menu by pressing (default passcode is 000000) and selecting the option displaying the currently set time. -
Page 32: Digitally Zooming In And Out
2) To switch between video, photos, and audio, use the button 3) In the playback mode for photo files, press button to open the picture, and use the buttons to navigate left and right through the photos. 4) Exiting: To exit the playback mode, press the button repeatedly until you are back in standby mode.
