Technical Manual
Infinitesimal 0.3

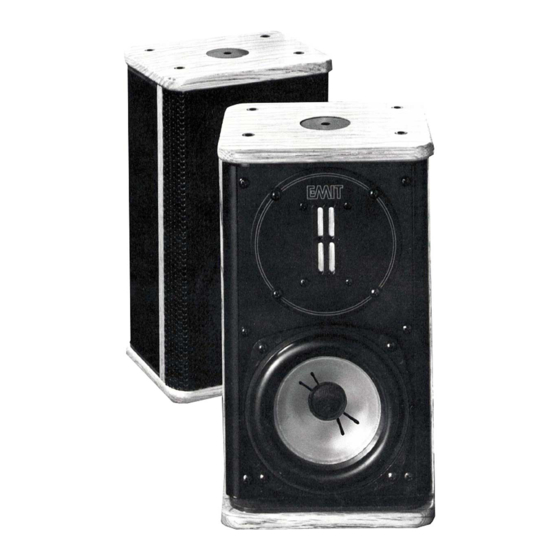

Infinitesimal Series 2-Way Speaker
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
Nominal Impedance:
Power Rating:
Crossover Frequencies:
Frequency Response:
PRODUCTION HISTORY
Introduced in 1982
Discontinued 1986
Original Retail Price: $300.00/pair
TECHNICAL INFORMATION
DIAPHRAGM #751-3722
REV A
9-98
INFINITY SYSTEMS INC., 250 Crossways Park Drive, Woodbury, New York 11797
4 ohms
15 to 100 watts RMS
3,000 Hz
65Hz-32kHz +/-2dB
TWEETER NLA
Substitute #902-3082
See Schematic on second page
PHYSICAL SPECIFICATIONS:
1x - EMIT Tweeter (Electro Magnetic Induction Tweeter)
1x - 5" (12.7cm) Infinity/Watkins Dual-Drive Woofer
Dimensions:
11"H x 6-1/4"W" x 5-1/4"D
XX
28x
Cabinet &
NLA
Cosmetic Parts
Grille
NLA
Crossover
NLA
Logo
NLA
WOOFER NLA
Substitute #902-0470
XXXXXXXXX
16x13cm
XXXXXXXXXXXXXXXXXXXXXX
Advertisement
Related Manuals for Infinity Infinitesimal Series
Summary of Contents for Infinity Infinitesimal Series
-
Page 1: Specifications
Introduced in 1982 Logo Discontinued 1986 Original Retail Price: $300.00/pair TECHNICAL INFORMATION TWEETER NLA Substitute #902-3082 WOOFER NLA DIAPHRAGM #751-3722 Substitute #902-0470 See Schematic on second page REV A 9-98 INFINITY SYSTEMS INC., 250 Crossways Park Drive, Woodbury, New York 11797... - Page 2 _ 0 + 6.0 F MM µ AGC 1.25 1.4Ω 1.4Ω TWEETERS .15mH µ 700 F NPE 1mH FC .3mH FC Ω Ω INPUTS WOOFER 20mH REV A 9-98 INFINITY SYSTEMS INC., 250 Crossways Park Drive, Woodbury, New York 11797...
