- Page 1 VM-100 voltage meter user manual...
- Page 2 Musikhaus Thomann Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 26.06.2015, ID: 107459...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 10 Installation..............................11 Components and functions........................ 12 Maintenance.............................. 16 Technical specifications........................18 Protecting the environment......................19 VM-100... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 6 General notes Warning signs Type of danger Warning – danger zone. voltage meter...
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used as mains voltage distributor and rack illumination. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire.
- Page 9 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 10: Features
Features Features Power supply for up to eight electrical loads with IEC sockets Filters to protect the connected units against interference and voltage peaks Resettable electronic overload fuse Two dimmable rack lights Supply voltage monitoring via tricoloured LED chain voltage meter... -
Page 11: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 12: Components And Functions

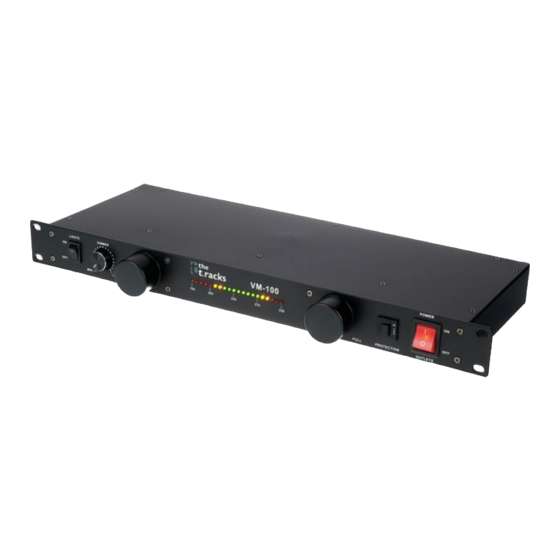

Components and functions Components and functions Front panel voltage meter... - Page 13 Components and functions 1 LIGHTS Rack illumination switch. 2 DIMMER Stepless dimmer control for rack illumination. 3, 5 Extensible rack lights. Briefly push on the round cover, then pull out the rack light and adjust the light beam as desired. 4 Indicates the currently available mains voltage in a range of 190 V…250 V.
- Page 14 Components and functions Rear panel voltage meter...
- Page 15 Components and functions 8 Mains cable. 9 IEC chassis sockets to supply up to eight devices. VM-100...
-
Page 16: Maintenance
Maintenance Maintenance Replacing the lamp DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Completely disconnect the device from the power supply before you open or remove covers. Mount all covers and attach them firmly before connecting the device again. - Page 17 Maintenance Pull out the faulty rack lamp (3, 5). Unscrew the cap from the end of the rack light. Replace the lamp. Screw the cap back onto the end of the rack light. Reconnect the device to the mains voltage supply. VM-100...
-
Page 18: Technical Specifications
Technical specifications Technical specifications Operating voltage supply AC 220 – 240 V , 50/60 Hz Fuse 10 A, resettable Maximum connected load 2200 W Dimensions (W × D × H) 482 mm × 229 mm × 44 mm (1 RU) Weight 3 kg voltage meter... -
Page 19: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Notes voltage meter...
- Page 21 Notes VM-100...
- Page 22 Notes voltage meter...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
