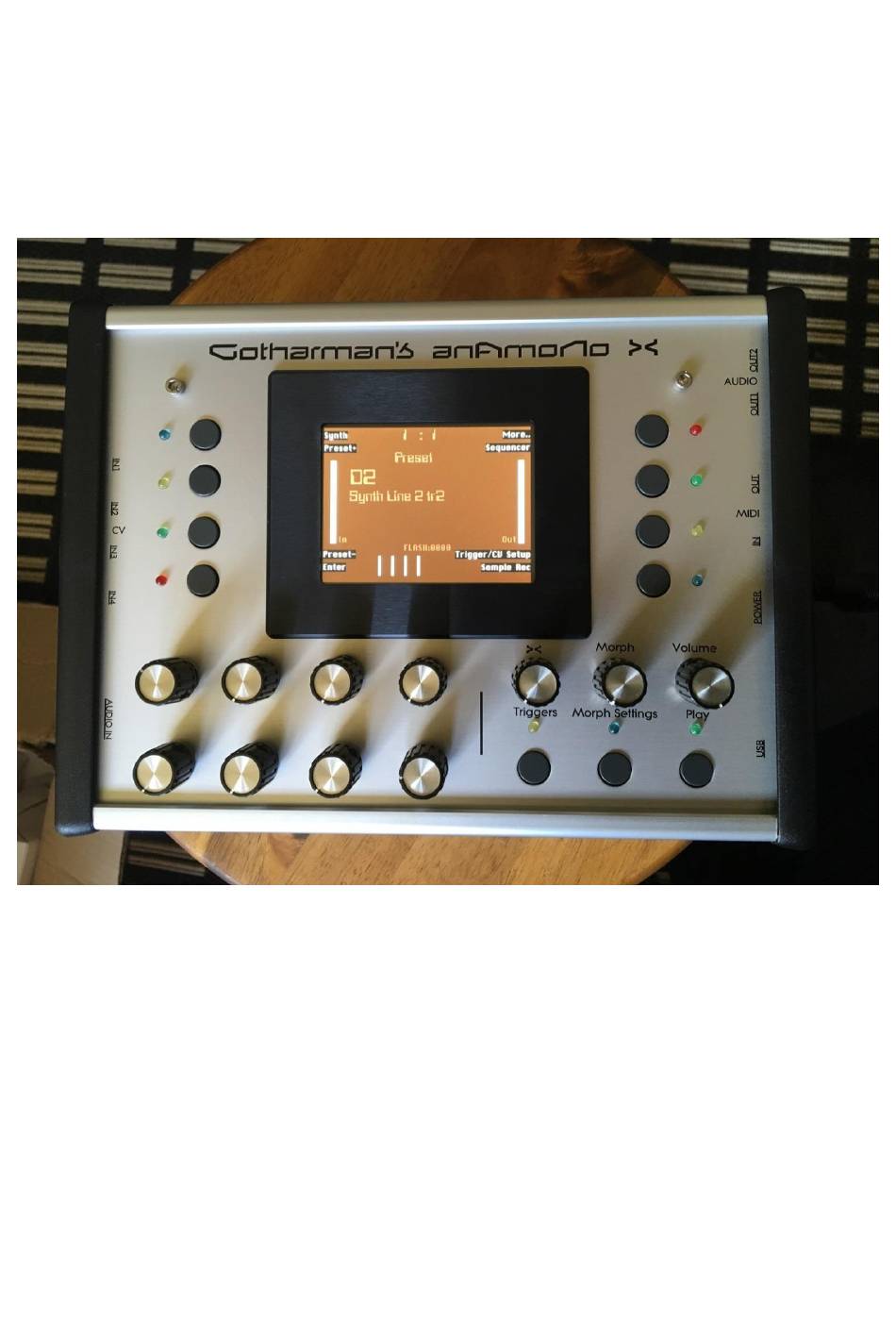

- Page 1 Gotharman’s anAmoNo X Modular Synthesizer Update Manual v6.16...
- Page 2 Compability with VCF8 Dual Band SSI Filter Import Multiple Samplings From Directory As one sampling with Chop points function Sample slot select via keyboard splits Sample playback and chop engine has been optimized Filter Boost parameter Controller tracks outputs MIDI CC 1 to 127 Text made more light on some pages Delete samples/presets progress shown on LED’s Bug Fixes...
- Page 3 Compability with the new VCF8 –Dual Band SSI Filter After installing this update, it is possible to select the VCF8, Dual Band SSI Filter, in the filter settings menu, and the parameters of this filter will be shown on the analog filter pages.
- Page 4 After you have installed this filter, you must set it up in the menu's, in order to make it work properly. Go to "More..>Common>Filter Settings", and set either filter 1 or 2 to: 8-Dual Band SSI, depending on in which filter slot you installed it:...
- Page 5 Parameters: HpCut: HPF/LPF 1 and 2 filter cutoff frequency. Space between the 2 filters can be adjusted with Space. LpCut: LPF 1 and 2 filter cutoff frequency. Space between the 2 filters can be adjusted with Space. Reso: Filter resonance of all 4 filters. Space: Space between the cutoff frequencies of the two filter chains.
- Page 7 Copy any single samplings you would like this sampling to contain, into the directory. Max 64 samplings. Create multiple such directories, if desired. Unmount the USB drive from your computer, and insert it in the Anamono X USB port.
- Page 8 This screen will now show: Push “Import Samples As Chops”. Anamono X will now create one sampling from all of the samplings in the selected directory, and insert a chop point at the start point of each sampling. After the import is done, go to the sample rec page, select the sampling you just imported (named from the directory name), and enter the Chop edit page.
- Page 9 directory, import as chops, and modulate the chop selection with velocity, random or any other modulation source, to make some great dynamic acoustic drum beats.
- Page 10 Sample slot select via keyboard splits Each synth sampler has 4 sample slots, that can each play back their own sampling, and that has their own settings for Tune, Start, Length and Chop point. To select which slot should play back, is possible by manual selection, by making a trigger select a specific slot, and by any modulation source.
- Page 11 On the Sample Select page of each sampler, turn Edit Knob 2 fully up, to select “Kybd Split” as the Slot Select source: By playing a connected MIDI keyboard, you will now be able to make Anamono X play back the different samplings selected in the slots, by hitting different keys.
- Page 12 Sample playback and chop engine has been optimized Sometimes, especially when working with shorter samplings, the sample playback and the chop system became unstable. This could sometimes lead to interesting results, but most of the time it was just plain annoying. Therefore the sample playback and chop system has now been completely redesigned for maximum performance and precision.
- Page 13 Filter Boost parameter A Filter Boost parameter has now been added to the analog filter pages. The range of this is -128 to +383, with +0 being the neutral and initialized setting. The new analog filter boards, SP Filter, Tubaz and SSI Filter, has a rather big variation in the output level, according to the setting of the Reso parameter.
- Page 14 For some odd reason, I got the maximum CC number that a controller track could transmit, set to 63, when designing Anamono X. This has now been changed, so each of the 16 controller tracks can be set to output MIDI CC 1 to 127.
- Page 15 Text made more light on some pages On the Oscillator and LFO pages, the text of the parameter values was pretty dark, which made it hard to read. This has now been changed to lighter colours, so it is easier to read.
- Page 16 Delete samples/presets progress shown on LED’s When deleting one sampling, all samples in a bank or all presets, a LED just turned on in the previous firmware versions. Now the progress is shown on the push button LED’s. LED 1 to 4 shows the progress of the erasing of the data. These will turn on and off in a loop, until all the selected data has been erased.
- Page 17 Sample loop does now work with sample chops. Sometimes when exporting multiple samplings, the USB drive would issue a “Bad Command”, and the system would halt. Anamono X can now handle this, and will continue the export after such a fault.
- Page 18 Flemming Christensen Gotharman August 2017...
