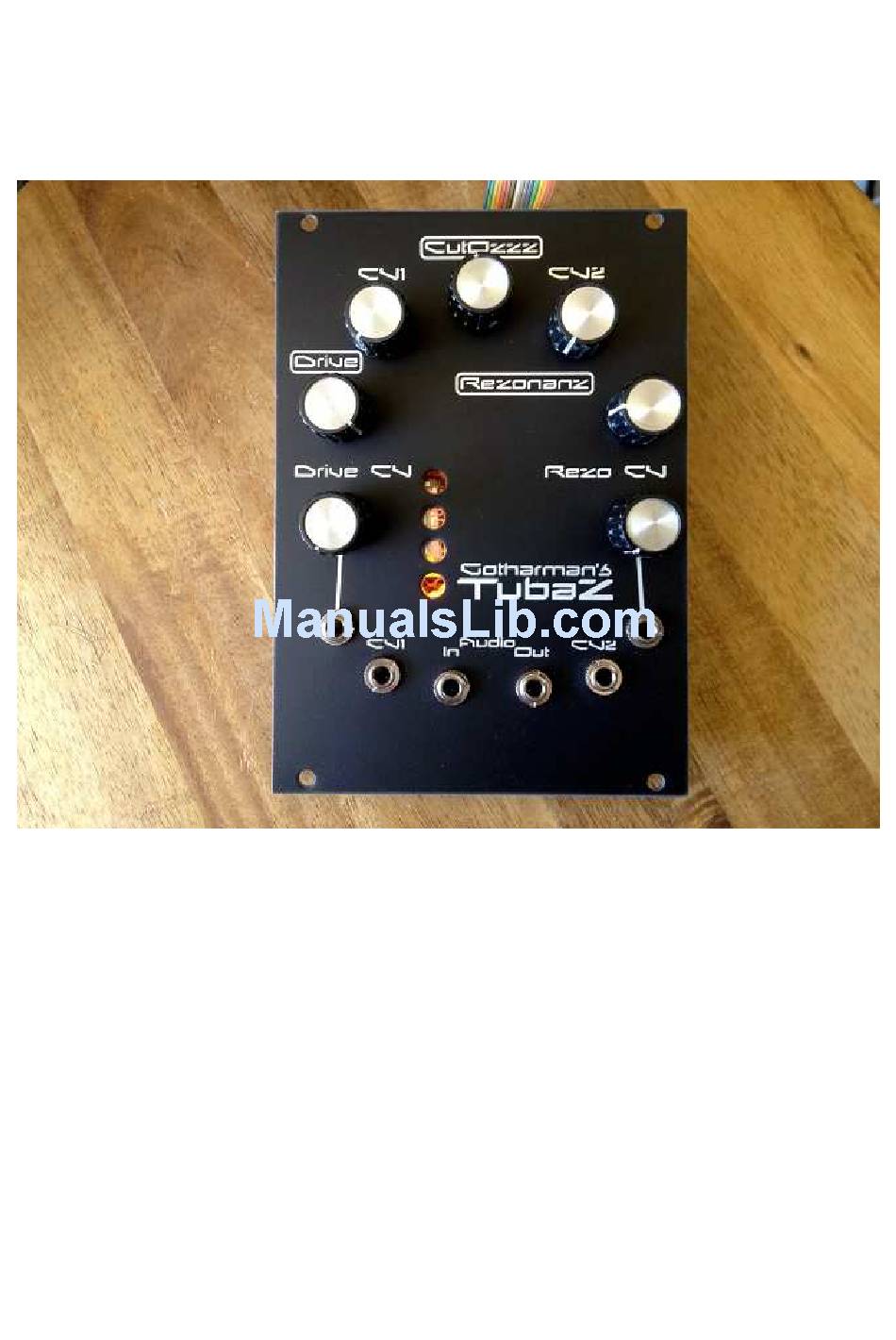

- Page 1 Gotharman’s TubaZ Gotharman’s TubaZ Gotharman’s TubaZ Gotharman’s TubaZ 12 dB Tube Bandpass Filter Eurorack Module User Manual User Manual User Manual User Manual...
- Page 2 Please read this manual before setting up your TubaZ, to avoid malfunction caused by wrong handling. TubaZ are a 12 dB tube bandpass filter with the controls CutOzzz, Rezonanz and Drive. CV control are possible of all 3 parameters. I designed it with the purpose of adding crunch, edge and distortion to my eurorack system.
- Page 3 Preparing TubaZ When you receive your TubaZ, a strip of bubble wrap will be attached to it, to protect the tube. Remove this carefully, by cutting it with a pair of scissors in one of the sides, between the faceplate and the PCB, and carefully lift it off.
-
Page 4: Connecting The Power Cable
-94 mA current. -Connections to other Eurorack modules, using minijack cables. The power connector of TubaZ, at the upper right corner of the PCB, is marked with ”-12V”, at the end of the connector, facing upwards. This is pin 1, and the –12 volt from your Eurorack power board, should be connected... - Page 5 If your TubaZ came with a multicoloured 16-cored flat-cable, the brown core should be placed at pin 1. If it came with a grey/red cable, the red core should be connected to pin 1. Mount the other end of the power cable to the powerboard of your Eurorack case.
- Page 6 Connecting With Other Modules The usual way og connecting TubaZ, would be to connect an audio source to Audio In, connecting Audio Out to another audio input and connecting modulation sources to the 4 CV inputs, but this is modular, so please feel free to experiment.
- Page 7 www.gotharman.dk...
