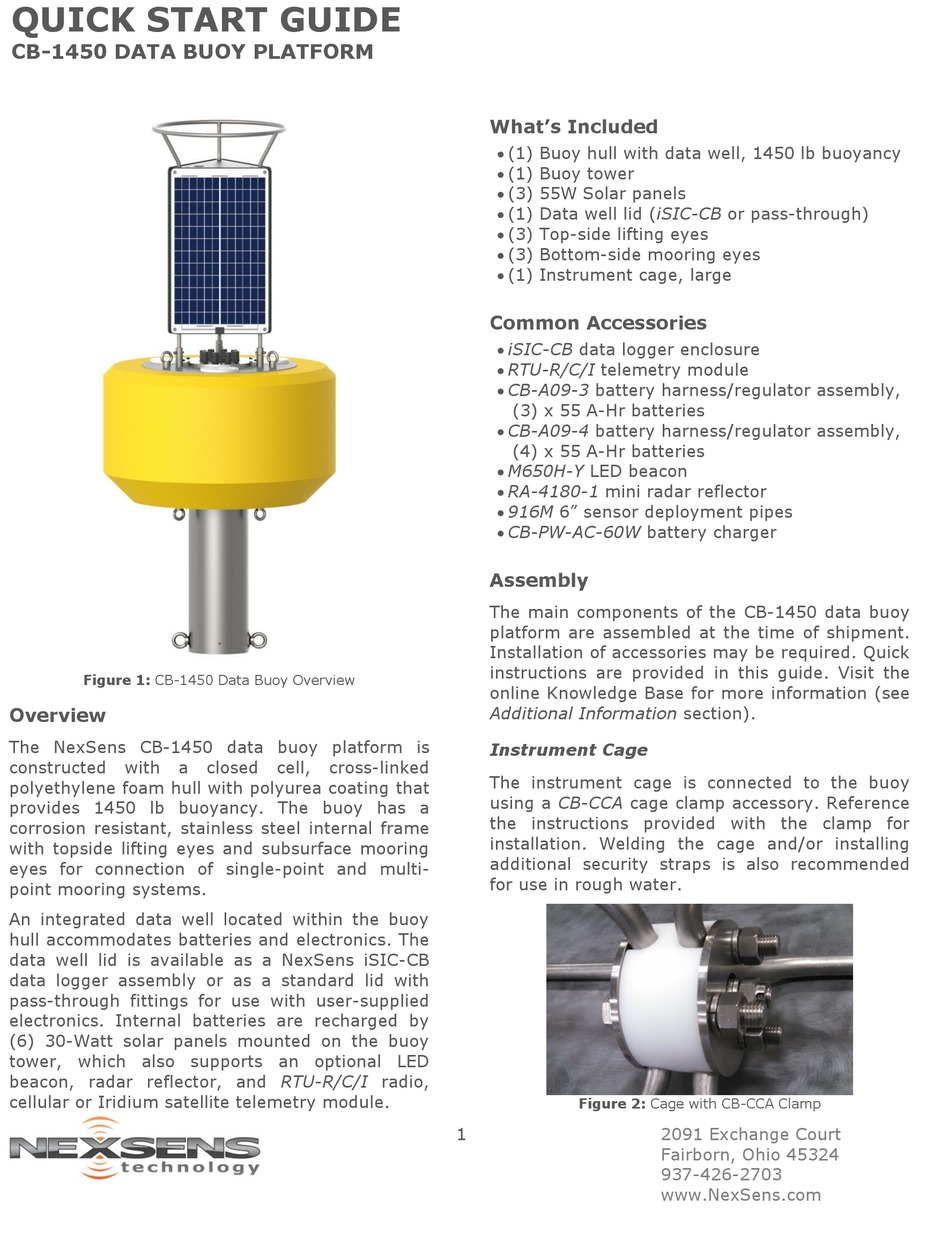

QUICK START GUIDE
CB-1450 DATA BUOY PLATFORM
Figure 1: CB-1450 Data Buoy Overview
Overview
The NexSens CB-1450 data buoy platform is
constructed
with
a
polyethylene foam hull with polyurea coating that
provides 1450 lb buoyancy. The buoy has a
corrosion resistant, stainless steel internal frame
with topside lifting eyes and subsurface mooring
eyes for connection of single-point and multi-
point mooring systems.
An integrated data well located within the buoy
hull accommodates batteries and electronics. The
data well lid is available as a NexSens iSIC-CB
data logger assembly or as a standard lid with
pass-through fittings for use with user-supplied
electronics. Internal batteries are recharged by
(6) 30-Watt solar panels mounted on the buoy
tower, which also supports an optional LED
beacon, radar reflector, and RTU-R/C/I radio,
cellular or Iridium satellite telemetry module.
closed
cell,
cross-linked
What's Included
(1) Buoy hull with data well, 1450 lb buoyancy
(1) Buoy tower
(3) 55W Solar panels
(1) Data well lid (iSIC-CB or pass-through)
(3) Top-side lifting eyes
(3) Bottom-side mooring eyes
(1) Instrument cage, large
Common Accessories
iSIC-CB data logger enclosure
RTU-R/C/I telemetry module
CB-A09-3 battery harness/regulator assembly,
(3) x 55 A-Hr batteries
CB-A09-4 battery harness/regulator assembly,
(4) x 55 A-Hr batteries
M650H-Y LED beacon
RA-4180-1 mini radar reflector
916M 6" sensor deployment pipes
CB-PW-AC-60W battery charger
Assembly
The main components of the CB-1450 data buoy
platform are assembled at the time of shipment.
Installation of accessories may be required. Quick
instructions are provided in this guide. Visit the
online Knowledge Base for more information (see
Additional Information section).
Instrument Cage
The instrument cage is connected to the buoy
using a CB-CCA cage clamp accessory. Reference
the instructions provided with the clamp for
installation. Welding the cage and/or installing
additional security straps is also recommended
for use in rough water.
Figure 2: Cage with CB-CCA Clamp
1
2091 Exchange Court
Fairborn, Ohio 45324
937-426-2703
www.NexSens.com
Advertisement
Table of Contents
Related Manuals for NexSens CB-1450
Summary of Contents for NexSens CB-1450
- Page 1 916M 6” sensor deployment pipes CB-PW-AC-60W battery charger Assembly The main components of the CB-1450 data buoy platform are assembled at the time of shipment. Installation of accessories may be required. Quick instructions are provided in this guide. Visit the...
- Page 2 Deployment Pipe The bottom of the buoy hull includes (3) 6” female threaded couplings for connection of NexSens 916M deployment pipe assemblies or other PVC fittings. To use these ports, simply thread each deployment pipe securely into one of the available couplings.
- Page 3 P0. RS-485 and SDI-12 ports are shared throughout the bus. NexSens iSIC-CB Data Well Lid For systems using NexSens electronics for data acquisition and telemetry, the iSIC data logger is housed in an iSIC-CB enclosure that provides a watertight seal over the data well.
- Page 4 4 (red) and 7 (black) of a P0 or COM port. loggers, telemetry modules and/or batteries, the Table 1: UW Receptacle sensorBUS Wiring CB-1450 data buoy is provided with a data well lid with a set of plugs and pass-through fittings UW Receptacle Pin Wire Color sensorBUS Signal for securing user-supplied instrument cables.
- Page 5 Figure 11: UW-Bulkhead Connector Assembly Solar Power Wiring Figure 12 shows a schematic drawing for the wiring of the CB-1450 power supply. The system includes (6) 30-watt solar panels that connect through the SOLAR port on the data well plate to...
- Page 6 Figure 13: CB-1450 Data Buoy with Ballast Chain stabilizing effect than the same size weight mounted closer to the surface. Saltwater Deployment An instrument cage mounted to the buoy frame helps to stabilize the buoy and provides a deeper Sacrificial zinc anodes should be used whenever a location for mounting additional weight.
- Page 7 Two-Point Mooring This section contains only general information on Two-point moorings are commonly used when the available mooring options for CB-1450 data monitoring sensors are deployed in the water buoys. To develop an effective mooring strategy, column below the buoy. In this setup, the...
-
Page 8: Specifications
Mooring Attachments: 1- or 2-point, ¾” eye Solar Power: (3) 55-watt, 12VDC solar panels Additional Information Additional information and complete instructions CB-1450 data buoy platforms available in the NexSens online Knowledge Base: http://www.nexsens.com/knowledge-base http://www.nexsens.com/category/knowledge- base/data-buoys/cb-1250-buoy 2091 Exchange Court Fairborn, Ohio 45324 937-426-2703 www.NexSens.com...
