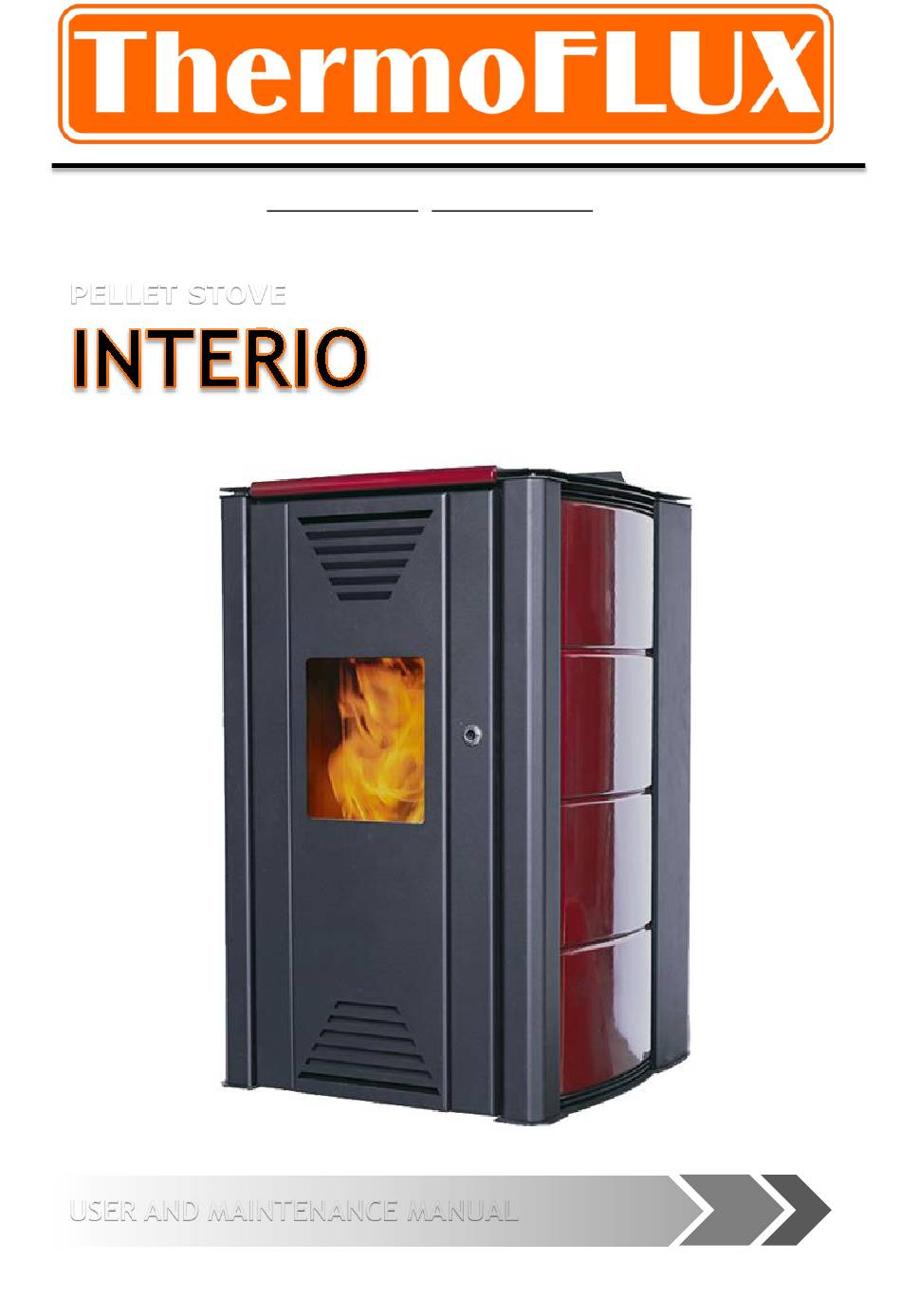

- Page 1 ThermoFLUX d.o.o., Bage br. 3, 70101 Jajce, Bosnia and Hercegovina, Tel/Fax: 387 30–657-100 www.thermoflux.ba tfinfo@thermoflux.ba PELLET STOVE USER AND MAINTENANCE MANUAL...
- Page 3 Due to constant improvement and development of our products some pictures or illustrations in this guide may vary. IMPORTANT INFORMATION: The first commisioning and training of the user must be done by a service authorized by ThermoFLUX d.o.o. or the importer, otherwise the guarantee will not be valid.
-
Page 4: Table Of Contents
Content: 1 NOTES ON THE MANUAL ............... 6 Easy and safe operation ..................6 Technical changes ....................6 Copyright ......................6 Security measures ....................6 Basic principles and operation ................. 7 Warning signs ....................... 8 Other warnings ...................... 9 1.7.1 System overheating ................... - Page 5 5 Connection ................23 Hydraulic schemes for connection ................23 Electric scheme connection ..................24 5.2.1 Power supply ....................25 5.2.2 Room thermostat ....................25 6 Function of stove ............... 26 Overview of the controls and display and their basic functions ........26 Principle of stove operation ..................
-
Page 7: Notes On The Manual
1.1 Easy and safe operation This manual is an integral part of the stove and contains important information for proper and safe operation of the Interio pellet stove. Following the instructions in this manual, the stove will work properly and you will avoid the danger, the costs of repairing failures, and at the same time the lifetime of the stove continues. -
Page 8: Basic Principles And Operation
1.5 Basic principles and operation The Interio pellet stove is a special heater intended exclusively for domestic use and intended only for burning wood pellets of 6 mm diameter and 30 mm length. During operation, the integrated heat exchanger produces hot water which is delivered to a central heating system. -
Page 9: Warning Signs
1.6 Warning signs WARNING SIGNS RISK OF ELECTRIC SHOCK. Working in areas marked with this symbol must be done by a qualified electrician. WARNING! Warning for hazardous locations and actions. Failure to follow can result by fatal injuries. CHOKING HAZARD DUE TO CARBON MONOXIDE CAUTION! Risk of injury. -
Page 10: Other Warnings
1.7 Other warnings WARNING Never touch hot surfaces! The hot parts of the stove, flue gas pipes and heating pipes can cause severe burns! Use gloves when working with the stove. Maintain the stove only according to the instructions. Insulate the flue pipes and avoid possible contact WARNING Do not open the door for ash cleaning during operation! Opening the door on the stove during work can cause the... -
Page 11: System Overheating
1.7.1 System overheating If the heating system overheats despite all the elements, it is necessary to proceed as follows. Do not open doors on the stove Turn off the boiler pressing the button for 3 seconds Open all heating circuits and switch on all pumps (stove control does this automatically) ... -
Page 12: General Overview

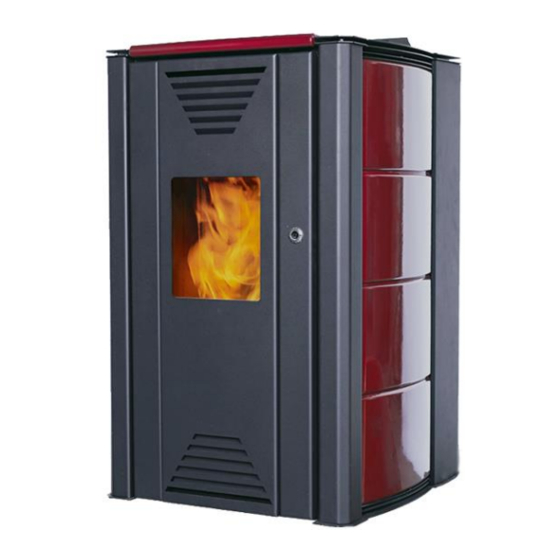

GENERAL OVERVIEW The Interio pellet stove is intended for domestic use only and only for pellets with a diameter of 6mm. The stove is compact and requires only 1m2 for installation, so it can be installed in the smallest space. The 30kg capacity... -
Page 13: Wi-Fi Module
2.2 Wi-Fi module Designed for communication and control of boiler operation via the Internet. Compatible with Android, IOS and Windovs devices. The user can have full control over the boiler via the application: enable / disable, change the power of work, ... - Page 15 Interio 14 Interio 20 Weight Power range 4-14,1 4-18 Heat transfer to the water 12,1 15,8 Heat in room Water content Recom. draught ratio 5-12 5-12 Water conction Inlet/Outlet inch Flue gas temperature 108,4 Max working temperature Max working pressure...
-
Page 16: Safety Instructions
3.1.1 Basic principles The Interio pellet stove has been designed and tested in accordance with the safety regulations deriving from the EN 14785 directive (and agreed standards). However, improper use of the stove can ultimately result in the death of users and/or third parties as well as damages to the stove itself or other property. -
Page 17: Pellets That Can Be Used In Boilers
3.2 Pellets that can be used in boilers The boiler is designed exclusively for burning wood pellets with a diameter of 6 mm and a length of 10-30 mm. What is pellet 3. 2. 1 Pellet is obtained from wood, if it is possible, from the core of the trunk with the lowest proportion of bark. -
Page 18: Obligatory Information
3.3 Obligatory information All persons managing the stove must read the manual before starting to use it and in particular the "Safety instructions". This applies especially to persons who occasionally work on a stove, e.g. cleaning and maintaining stoves. This instruction should always be kept near the installed stove. Children aged 8 and over, persons with reduced physical, motor or mental capacity, persons with insufficient experience and training, may use a device of this kind if they have been provided with supervision or have been given instructions regarding the... -
Page 19: Fresh Air Supply
3.6 Fresh air supply For combustion of pellets and normal work the stove needs fresh air. The room in which the stove is installed must have an opening for fresh air supply. The recommended minimum dimension is 30x15 cm. 3.7 Boiler safety devices The pellet stove is equipped with safety systems which, in the case of unforeseen situations, serve to stop the power supply and thus stop the boiler operation. -
Page 20: Installation
Installation The commissioning of the system must be carried out by the authorized personnel by ThermoFLUX d.o.o. or the importer. The Warranty will not be valid if the stove has not been commissioned by an authorized repairer. The first start-up includes the basic operation and maintenance of the stove. The service technician authorized for the first commissioning must check the functioning of the stove at least during one complete work cycle. -
Page 21: Switch Off Main Power Supply
4.1.1 Switch off main power supply Be sure to turn off the main power before any work. 4.1.2 Check mechanical connections Check that all components are properly connected. Check that all mechanical components are securely attached. 4.1.3 Check hydraulic connections ... - Page 22 The internal cross-section of the exhaust pipes should be smoth and all connections must be hermetically sealed. Avoid as much horizontal mounting as possible. Horizontal parts should have a slope of at least 3% upwards. The length of the horizontal part of the saddle shall be minimum and in any case not more than 2 meters with the possibility of cleaning and removing the accumulated ash.
- Page 23 If the chimney has a too high underpressure (over 20 Pa), the regulation can be achieved in different ways. One way is to easily open the cleaning door. We recommend to install the draft regulator. The pellet stove can not be connected: ...
-
Page 24: Connection
Connection 5.1 Hydraulic schemes for connection... -
Page 25: Electric Scheme Connection
5.2 Electrical wiring diagram... -
Page 26: Power Supply
The pellet stove is supplied with built-in circulation pump, expansion vessel and safety valve. On the back of the stove is the connection for: power supply 230VAC, 50Hz with main switch, fuse and room thermostat. 5.2.1 Power supply The stove needs to be connected to a 220V, 50Hz via a separate fuse 6-10A (FAST). 5.2.2 Room thermostat The user has the possibility to place the room thermostat in one room and does not... -
Page 27: Function Of Stove
Function of stove 6.1 Overview of the controls and display and their basic functions Button Description Increasing temperature and program functions (adjusting days, time...) Decreasing temperature and program functions (adjusting days, time...) Changing – accepting program ON / OFF, program exit Decreasing power, navigate through the menu Increasing power navigate through the menu... - Page 28 When mark is visible Clock programmed ignit. active Heater heater active Pelet dosage auger active Smoke fan fan active Primary air fan fan active Circulating pump pump active Alarm alarm active Display Info Clock Water temperature indicator Regulation on the stoves ''Pelling'' is most important electronic component.
-
Page 29: Principle Of Stove Operation
6.2 Principle of stove operation Principle of the stove operation is very simple. When button for start is pressed stove goes into IGNITION MODE. START is displayed, and after that PELLET IGNITION. Usually this phase lasts for 5-15 minutes depending on type of the stove and pellet quality. -
Page 30: Schematic Representation Of The Menu Control
6.3 Schematic representation of the menu control By pressing button SET we enter general menu. -
Page 32: Clock Adjustments
6.3.1 Clock adjustments Clock adjustments can be done on following way:... -
Page 33: Adjustments Of The Programmed On And Off Mode
6.3.2 Adjustments of the programmed on and off mode 6.3.3 Stove has possibility for programmed on and off mode during a day and this option is regulated on three ways: 1. DAY PROGRAM, in this mode we can set 2 (two) different times for ignition and shutting down of the stove.This applies to all days in the week.(Scheme 2) 2. - Page 34 Sheme 2. Sheme 3. Sheme 4.
-
Page 35: Language Options
6.3.4 LANGUAGE OPTIONS Language settings are adjusted by pressing the SET button,and after that by pressing of button 5 or 6 we choose option MENU 03-LANGUAGE. pressing button language menu opened (italian,english,german,french, croatian...) in which we can choose desired language by pressing button 1 or 2. When desired language is choosen, confirmation is to be done by pressing button SET. -
Page 36: Stand By Mode With Room Thermostat Connected
FUNCTION STAND-BY SET OFF In the case that function STAND BY is not activated (OFF) , and that connection for the room thermostat is not overbridged, stove will always work in power 1 no matter which power is set. In the case that function STAND BY is not activated (OFF), and connection for room thermostat is overbridged (set in the factory) stove will work in the power chosen by the user, and when desired temperature is reached will go into modulation mode. -
Page 37: Filling Of Spiral Dispenser
To enter this option press SET, after that with buttons 5 or 6 we choose MENU 07 – STATE STOVE. 6.3.9 Technical settings TECHNICAL SETTINGS are foreseen for authorised personnel only. 6.3.10 FUEL TYPE FUEL TYPE is not using on the Interio stoves... -
Page 38: Ignition And Shutting Down Of Stove
Ignition and shutting down of stove Ignition sequence and description of regulation Basic function of the regulation is to secure reliable ignition of used fuel, optimal conditions for combustion and controled sequence for shutting down. Depending on working power, and complexity of the heating system, parameters are read and controled differently. -
Page 39: Shutting Down Of Stove
After ignition of pellet, and after tempereture of flue gasses raise on value of 55 °C, regulation receives signal that fire is on and stove continues to work with set values. 7.2 Shutting down of stove Press and hold button 4 for 3 (three) seconds. -
Page 40: Adjustment Of Water Temperature In Stove
Regulation on the stove is set in the way to modulate (power goes into lowest one ) it's work when 4 C is reched below set temperature – read 6.5 Modulation 7.4 Adjustment of water temperature in stove Adjustment of water temperature in the stove is done by pressing button 1 or 2 (*1). -
Page 41: Cleaning Of Fire-Pot
If temperature rises above set temperature by 2 °C, stove will be shut down automatically and on display will be written WAIT COOLING. When temperature in the stove decreases for 2 °C below set temp. regulation will start process of ignition again. 7.6 Cleaning of FIRE-POT During its work stove has set timer for cleaning of combustion basket (fire-pot) after certain time. -
Page 42: Cleaning And Maintenance
Cleaning and maintenance To secure proper work of the stove, cleaning and maintenance is neccesary. Cleaning can be divided in three stages : Daily Weekly Monthly 8.1 Daily cleaning Turn the stove off and wait until it has been cooled. ... -
Page 43: Cleaning The Tube Heat Exchanger
1. Turn the stove off and wait until it has been cooled. 2. Remove the cover by easy pull up . 3. Under the cover are two plates (14 Interio has one) where there is a place where you put the lever for cleaning... - Page 44 Pulling up and down, clean the tubular exchanger of the ash deposit. 4. In the interior of the firebox (behind) is the cover of the flue gas chamber fixed with butterfly screws.
- Page 45 5. Remove the cover and with a vacuum cleaner remove accumulated ash, also the ash deposits from the fan blades. After cleaning put all the parts back to the place where they were...
-
Page 46: Alarms
Alarms If faults occur in the heating system, it is possible to fix some of them by following these instructions. Display Description Solution Cancel the alarm can be executed Alarm active- by pressing the button 4 After that, the display lists FINAL indicated next to the sign CLEANING lasting 4 minutes. - Page 47 Call service Wait for the boiler to cool down and then unscrew the plastic cap and suitable tool to reset the Safety thermostat (STB) switch. has been activated SAFETY THERMAL because the boiler water It is possible that the pump is is temperature exceeded 95 out of service and there is no °...
-
Page 48: Instruction About Safety Removal And Proper Disposal Of Stove
Instruction about safety removal and proper disposal of stove 10.1 Disposal Following elements are made of metal and can be disposed on landfills for metal: stove cover metal sheets feeding system (except motor) braizer basket Electronic components can be recycled . Glass, glass wool and plastic parts can be recycled on landfills. -
Page 49: Guarantee
Guarantee period of 5 years applies on stove body, metal covers and silo for pellet, and 2 years on electric component ( regulation, motor, ignitier) ThermoFLUX d.o.o. is responsible for service in BiH during guarantee period for failures as described in paragraph related to terms for guarantee, Guarantee in other states is to be provided by authorised importer- distributor. - Page 51 ThermoFLUX d.o.o. Bage br.3, Jajce Bosnia and Herzegovina Tel/fax +387-30-657-100 www.thermoflux.ba 2018...
