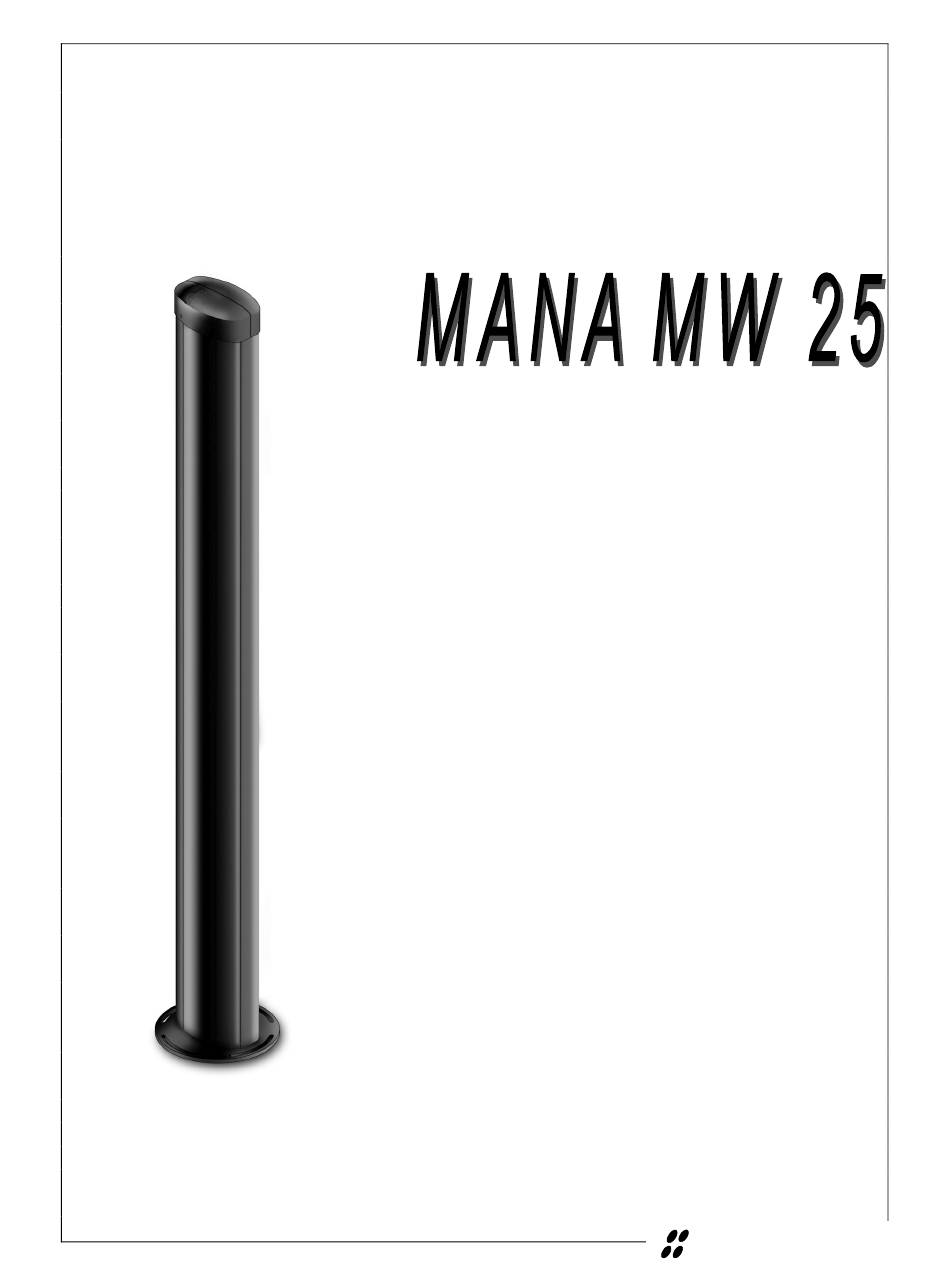

- Page 1 Microwave barrier for perimeter protection at long range. Installation manual . POLITEC s.r.l.
- Page 2 ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ POLITEC s.r.l...
-
Page 3: Table Of Contents
Page 10 Connections RX Page 12 Connections power supplier Page 15 Connections and descriptions cavity Tx and Rx Page 17 Connections notes Page 18 Sensitive area Page 20 Deadzone Page 21 Operation mode Page 22 Specifications Page 25 POLITEC s.r.l... -
Page 4: Principal Component
Principal Component N. Parts Quantity Description Top Cap Aluminium Profile Aluminium inserts IR cover Parable Mana Illuminator Mana Cavity Tx or Rx Handling system Plate Tx or Rx board Power board POLITEC s.r.l... -
Page 5: Pit Assembly
Single cable pit side panel Use the supplied nuts and bolts to assemble the cable pit. Overlap the right-hand edge of one side pan to the left-hand edge of the next. Assembled cable pit, ensure that the mounting flange is uppermost. POLITEC s.r.l... -
Page 6: Pit Placement
Once fully assembled the cable pit is installed ten centimeters below ground level and is embedded in concrete; once correctly installed it can be covered (with turf or suitable decking) so that only the IR beam tower is visible . POLITEC s.r.l... - Page 7 Underscrewing the insert raises it thus raising the base of the tower on that side, adjusting the correct inserts will bring the beam back to the vertical. Correct installation Incorrect installation. How to make small adjustments POLITEC s.r.l...
-
Page 8: Installation Problems
The following pictures show some typical cases for which the most correct solution is given. POLITEC s.r.l... -
Page 9: Possible Correction Of Incorrect Positioning
Along the section, within the area of the protectiion field, are allowed pipes, poles or similiar as long as their dimensions, with respect to the protection beam, are not too excessive. The trees, hedges, bushes in general, need very great attention if near or within the protection sections. POLITEC s.r.l... - Page 10 Connections and circuit descriptions TX “Led "channel “Led Vd” Output” selector" (power) “Led insert jumpers” (Output, POLITEC s.r.l. Vdc) 1 2 3 4 “MW” “Tamper Connectors: connector” Output 1 Output 2 “Power connector” • The power connector is linked to power supplier via a flat cable.
-
Page 11: Connections Tx
Connections TX TO CAVITY TX 24.5 GHz POWER INFRARED CONTACT BARRIER TAMPER NC POWER SUPPLIER TO OTHER HEATERS HEATER BATTERY 12V TRANSFORMER LAND 230V~ LAND POLITEC s.r.l... -
Page 12: Connections Rx
Connector 's output: “Power 1-2 Alarm connector” 3-4 Tamper POLITEC s.r.l. 1: Insert LED bar for Test Alignment 2: Display on LED bar signal Rx strength 3: Disconnect CAG (automatic gain control) “Funciones selector” 4: Walk Test (skill the "Buzzer") 5: View the gain value (optimum 4.5-6.5) - Page 13 Green = Strong Signal. • Potentiometers (Gain, Walk Test, sensitivity, delay), adjustments to be made during installation • The "Buzzer" (or buzzer) is activated with the "Walk Test" (selector functions): Continuous beep = Alarm Sound intermittently variable = Tell sensitive area. POLITEC s.r.l...
- Page 14 Cablaggi Barriera RX TO CAVITY TX 24.5 GHz POWER INFRARED BARRIER CONTACT CONTACT ALARM NC TAMPER NC POWER SUPPLIER TO OTHER HEATERS HEATER BATTERY 12V TRANSFORMER LAND 230V~ LAND POLITEC s.r.l...
-
Page 15: Connections Power Supplier
Jumper Circuit Tx or Rx 0.5 A Power battery connectors LEDs Power 1 2 3 Led Mains POLITEC s.r.l. Black Battery Heater Fuse Circuits Fuse connectors "Power Connectors": • 1-2 =19 VAC input to connect to the transformer 3-4 = 13.8 V output power for infrared 6.5 = 24 VAC input to be connected to the transformer... - Page 16 NB Current limit for battery charging 0.5 A. Without the current bridge load limit is 0.25 A. " Heater Fuse " normally installed 5 A delayed protecting heaters circuits. • " Circuits Fuse " normally installed by 0.8 A slow, protecting Tx or Rx and • infrared circuits. POLITEC s.r.l...
-
Page 17: Connections And Descriptions Cavity Tx And Rx
The switch located on the cavity Tx and Rx is positioned to OFF only after • installation and after giving voltage to the columns. The ON position, the active protection of the "receiver" cavity by electrostatic discharge and damage resulting from installation. POLITEC s.r.l... -
Page 18: Connections Notes
In any case, you should carefully follow the requirements contained in the related law of fixed devices permanently connected to the mains as the Law 46/90 and CEI 64-8. In the case of mains very disturbed to add an effective filter 230V 1 A POLITEC s.r.l... - Page 19 Tamper Output 1. Opening the cap of barriers The High Risk Protection is essential that the detectors are tested with adequate intervals to Test Operational. In this way the control unit will be able to detect attempts to circumvent. POLITEC s.r.l...
-
Page 20: Sensitive Area
(m) Maximum sensitivity Minimum sensitivity Length is in meters : remember to adjust the sensitivity of "MANA" according to half width of the beams is desired. As the threshold is higher, the lower the sensitivity and vice versa. POLITEC s.r.l... -
Page 21: Deadzone
70 cm from the center of the antenna to the ground, with the sensitivity set to medium. H equipment ground (cm) Maximum sensitivity Minimum sensitivity Length of the dead zone in meters POLITEC s.r.l... -
Page 22: Operation Mode
TX) (Vedi pagg. 10-11). 5. Check the "voltages" on the receiver, turning in ON position the switch N.10 "selector function", and displaying the desired tension (5, 9, 13.8 volts) with dip No 7-8-9 (See pp. 11-12). POLITEC s.r.l... - Page 23 2. Turn ON the microswitch of the "selector function" Number 4 leaving all others to OFF. This operation is inserted to signal the buzzer will sound continuously when there is an alarm (see pp. 11, 12), while with a variable sound intermittently when in a sensitive area. POLITEC s.r.l...
- Page 24 Delay. The potentiometer adjustment of the delay (see page. 11, 12) affect the crossing speed. To verify the delay is necessary to experiment crossing at reduced speed. Remember that setting too high or low could cause false alarms POLITEC s.r.l...
- Page 25 Trimmer a bordo. Continua. Dimensioni: Altezza Larghezza Profondità Variabile da 100 a 25 cm 20 cm 300 cm Peso Variabile Da 10 a 20 kg per barriera Puntamento Elettronico tramite strumento elettronico di bordo Uscite Relè allarme e Relè manomissione POLITEC s.r.l...
- Page 26 ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ POLITEC s.r.l...
- Page 27 ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ POLITEC s.r.l...
- Page 28 POLITEC s.r.l. Via Adda 66/68 – 20040 – Bellusco (Mi) – Italia Tel. + 39.(0)39.6883019 r.a. – Fax + 39.(0)39.6200471 www.politecsrl.it - E mail: info@politecsrl.it R 1.0 POLITEC s.r.l...
