DIGITALas MDVR-4F3AHD mini Instructions For The Use

Lan/wifi/gps
Hide thumbs

Advertisement

Quick Links

Download this manual

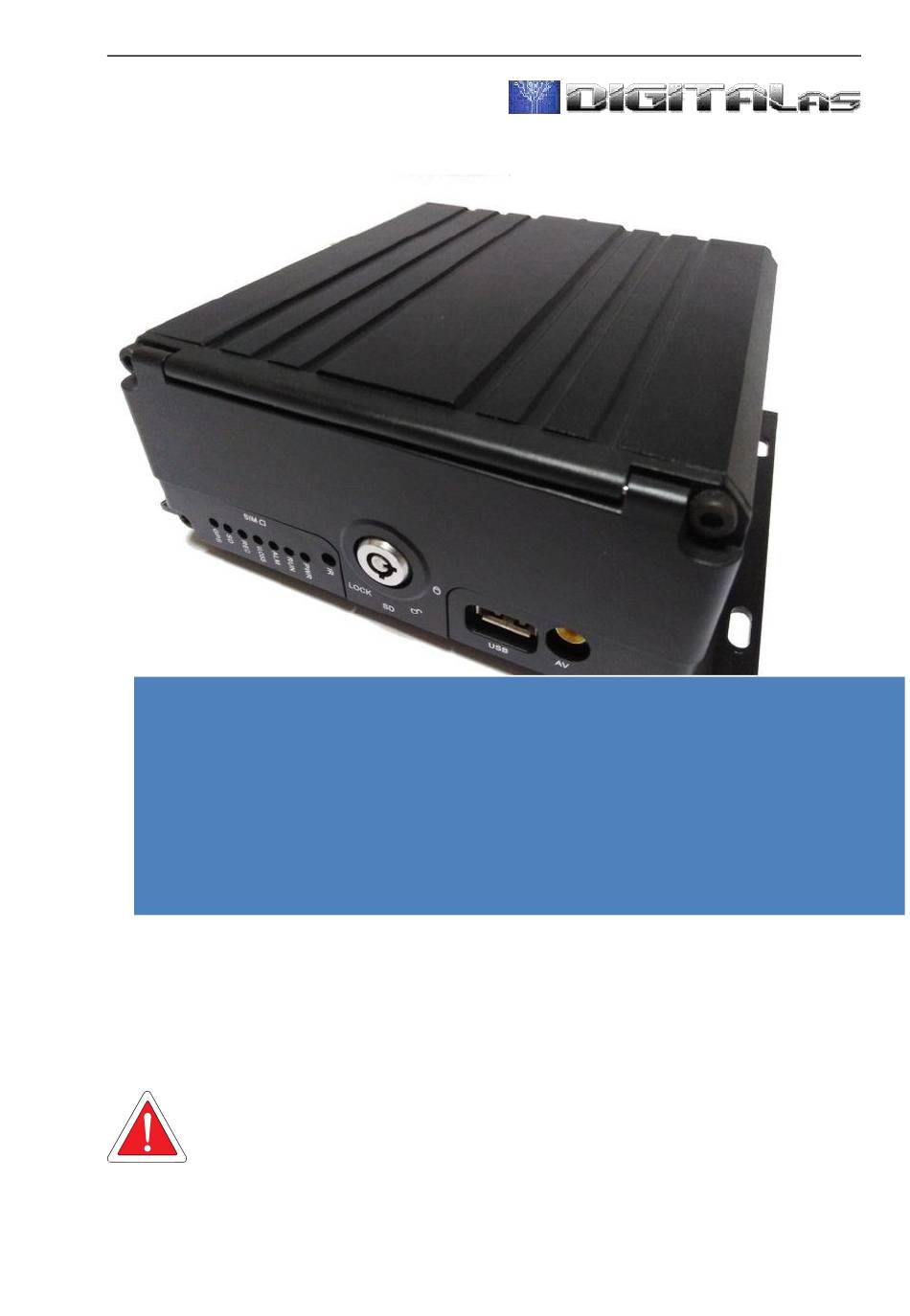

MDVR-4F3AHD mini (LAN/WiFi/GPS)
MDVR-4F3AHD mini
Instructions for the use of vehicle
video recorders
车载录像机使用说明书
Thank you for using this product. The appearance or function is different
from this manual due to the differences between different models or product
upgrades. Please refer to the physical object or contact the manufacturer.
The contents of this manual will be updated irregularly. Without prior notice!

Advertisement

loading
Need help?

Need help?

Do you have a question about the MDVR-4F3AHD mini and is the answer not in the manual?

Questions and answers

Related Manuals for DIGITALas MDVR-4F3AHD mini

Summary of Contents for DIGITALas MDVR-4F3AHD mini

  • Page 1 MDVR-4F3AHD mini (LAN/WiFi/GPS) MDVR-4F3AHD mini Instructions for the use of vehicle video recorders 车载录像机使用说明书 Thank you for using this product. The appearance or function is different from this manual due to the differences between different models or product upgrades. Please refer to the physical object or contact the manufacturer.

  • Page 2: Installation Environment

    MDVR-4F3AHD mini (LAN/WiFi/GPS) Declarations This manual is suitable for 4/8 road high definition series DVR products, may not be accurate in some technical details, if you have physical objects in use with this manual inconsistent. The contents of this manual will be updated without prior notice.
  • Page 3 MDVR-4F3AHD mini (LAN/WiFi/GPS) Introduction 1.Product Overview The VCR is a dedicated HDD VCR that supports 4/8 channels 1080P / 960P / 720P / D1 mode audio and video recording and playback at the same time. The product adopts ARM DSPS dual-core high-speed processor, embedded Linux embedded operating system, and combines with the most advanced H.264 video coding and...
  • Page 4 MDVR-4F3AHD mini (LAN/WiFi/GPS) 2.Products Specifications project parameter SD truck loader truck loader ＨＤＤ language Chinese / English / traditional (default voice), other customizable interface Graphical menu operation interface system User password, administrator password two-level management (default password: pin security 111111)
  • Page 5 MDVR-4F3AHD mini (LAN/WiFi/GPS) Built-in communication module (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) optional wireless Built-in 4G communication module (FDD-LTE/TDD-LTE) optional WiFi Built in WiFi module (optional 2.4/5.8GHz) Support built-in GPS module, geographic coordinates, speed and so on can be written code stream, and can be wireless Uploaded...
  • Page 6 MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.1 SD card and hard disk LED indicator light and state description 【PWR】The power input status indicator. The light indicates that the power supply of the system is  working normally.； 【SD】SD card working light. The light often shows that the SD card works well. The SD card slot is ...
  • Page 7 MDVR-4F3AHD mini (LAN/WiFi/GPS) signal line. When you need to set a timing video or a ignition video, the ACC line is connected to the 【NET】RJ45 network interface;  【I/O】10PIN interface: contains 4 way alarm input, 1 road output, 1 road GND, 1 road RS232 (TX, ...

  • Page 8: Equipment And Installation

    MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.4Main keys of remote control Equipment and installation Step1 ： GPS, 3G/4G and WiFi antennas are installed. The GPS, 3G/4G and WiFi antennas shown below are connected to the corresponding positions of the rear panel of the MDVR, and a reasonable wiring is made, so that the signal is not subject to external interference.。...
  • Page 9 MDVR-4F3AHD mini (LAN/WiFi/GPS) 3G/4G WIFI Step2：Power line A:Switch mode is set to "ignition" power connection mode： When the system management, power management, boot mode, the switch is set to "fire", the white 6PIN plug connection to the rear panel of the MDVR 6PIN power input interface cable, red and black is directly connected to the car battery or level out after received total electric insurance after the red line connected to the positive and negative black ground.
  • Page 10 MDVR-4F3AHD mini (LAN/WiFi/GPS) The MDVR power line suggests direct connection to the positive and negative pole of the vehicle battery, or the battery is connected to the positive and negative pole after the safety box is connected. No connection to the metal conductor inside...
  • Page 11 MDVR-4F3AHD mini (LAN/WiFi/GPS) Setp3：RS232/RS485 Device access（default 232） This product provides 1 way RS232 serial port and 1 way RS485 input. Users can choose the equipment needed for sensors, OBD, interphone and other RS232 serial ports or RS485 communication according to actual needs.

  • Page 12: Menu Structure Diagram

    MDVR-4F3AHD mini (LAN/WiFi/GPS) Menu structure diagram The user controls the vehicle equipment through a series of menu operations. The following figure is a simple description of the menu structure: 3.1system operation 3.1.1 Login Reminding: if the password switch is set off, press the LOGIN button to enter the menu interface After the host is opened, press the LOGIN button on the remote control to enter the login interface, as follows：...
  • Page 13 MDVR-4F3AHD mini (LAN/WiFi/GPS) Password: ordinary user password and administrator password, log in with ordinary user password, can only enter search and browse, and can't enter settings menu settings parameters. The administrator password is logon, and the parameters can be set up。...
  • Page 14 MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.1 .2 Search Menu. The query menu includes: video search, log query and picture search 3.1.3 Video search. Search date: according to the number key input date, the default is the day.。 Start time: by the number key input time, the default is 00:00.
  • Page 15 MDVR-4F3AHD mini (LAN/WiFi/GPS) Click on the direction key to select the video data to view, press [PTZ] special key to start playing video data, press [ESC] key to the upper level Select the video file you want to view and click the OK button to check the video that needs to be backed up Press the arrow keys to select the "home page", "on page"...
  • Page 16 MDVR-4F3AHD mini (LAN/WiFi/GPS) The log management record produces the event information of the switch machine, GPS time and alarm time, including event date, event time, event name. Search date: according to the number key input date, the default is the day Log category: select by [OK] key: all / system log / alarm log / operation log.
  • Page 17 MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.1.6 Sys Set Menu The system management menu includes six functions: terminal setting, user management, system clock, power management, parameter setting and formatting 3.1.7 Terminal setup The server will monitor and manage the vehicle through the device number,...
  • Page 18 MDVR-4F3AHD mini (LAN/WiFi/GPS) Password enabled: press [OK] key: turn on / off。 Open: use administrator password to login, set up ordinary user / administrator password; use user password to login, set user password only, enter by numeric key, administrator and user input password must be consistent two times。...
  • Page 19 MDVR-4F3AHD mini (LAN/WiFi/GPS) Date format: the choice of date format, that is, annual - month - day, day - month - year, month - day - year. Click the OK button Timing options: select [OK] key: turn off /GPS/NTP, and the system default is GPS.
  • Page 20 MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.1.11 Parameters Management Parameter import: import the configuration information on the current SD card to the current device. Parameter export: export all the configuration information of the current device to the SD card. Save the user settings: save all the configuration information of the current user Restore the factory setting: all the parameters of the recovery device are set to the factory default state.
  • Page 21 MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.1.12 Disk Format Select SD1/SD2 by the direction key Press the OK button to select the formatting button. 3.1.13 Rec Set Menu The video setting menu includes six functions: basic setting, main stream, child code stream, timing video,...

  • Page 22: Main Stream

    MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.1.14 Basic Record Setup PAL/NTSC should be selected according to the image of the camera, and the mainframe will be restarted automatically after the system is saved。 4*720P AHD camera, select high definition mode, 4*CVBS analog camera,...
  • Page 23 MDVR-4F3AHD mini (LAN/WiFi/GPS) Enable: click [OK] key: turn on / off. Resolution: select [OK] key: D1/HD1/CIF/720/1080 Frame rate: select by [OK] key: 1-25 Picture quality: select [OK] key: 0-7 Recording: click [OK] key: turn on / off Mirror: click [OK] key: turn on / off Shortcut: the resolution of all channels can be set at the same time, according to the OK key: D1/HD1/CIF/720P.
  • Page 24 MDVR-4F3AHD mini (LAN/WiFi/GPS) Frame rate: select by [OK] key: 10-25 Picture quality: select [OK] key: 2-7 3.1.15 Timed Record Setup Set the start time and end time of the timing video, and press the number key. 3.1.16 Storage Set Alarm record: press the number key, 0~60 seconds Alarm delay: input by digital key, 120~3600 seconds.
  • Page 25 MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.1.17 OSD Set Date time: select make energy by OK key: turn on / off, input X coordinates and Y coordinates by digital keys License plate + channel: according to OK key selection enable: turn on / off, input X coordinates and Y coordinates by digital keys。...
  • Page 26 MDVR-4F3AHD mini (LAN/WiFi/GPS) 3.1.19 Center setting Center IP: the Internet IP address of the central platform when the device registers the platform through the 3G or Wifi.。 3.1.20 Local settings Network use: select according to [OK] key: local network / external WiFi/ peripherals.。...
  • Page 27 MDVR-4F3AHD mini (LAN/WiFi/GPS) Enable: click [OK] key: turn on / off。 Type: select by [OK] key：WCDMA/EVDO/TD-SCDMA/TDDLTE/TDDLTE-1/TDDLTE-2。 Access point, center number: enter the keyboard interface according to the OK key, and the mobile cursor selects the corresponding letter input according to the [OK] key.

  • Page 28: Alarm Setting

    MDVR-4F3AHD mini (LAN/WiFi/GPS) Alarm setting 3.1.22 Alarm and peripherals The alarm and peripherals include IO alarm, speed alarm, acceleration, mobile detection, voltage alarm, serial port management and cloud platform control 3.1.23 IO Call the police Enable: according to the [OK] button to select: off / emergency / / / back / front door door door / door / the other driver / light / right / left brake lamp / lamp / reverse / custom 1~4 Level: select by [OK] key: high / low。...
  • Page 29 MDVR-4F3AHD mini (LAN/WiFi/GPS) Enable: click [OK] key: turn on / off.。 Threshold: input by the number key.。 Duration: input by number key。 Video: click [OK] key: turn on / off。 Alarm linkage: select according to [OK] key: turn off / output 1/ output 2.
  • Page 30 MDVR-4F3AHD mini (LAN/WiFi/GPS) Enable: click [OK] key: turn on / off.。 Threshold value: input by the number key.。 Sensitivity: click [OK] key: 0~7。 Alarm linkage: click [OK] key: turn off / output 1/ output 2 3.1.27 Voltage alarm Enable: click [OK] key: turn on / off。...
  • Page 31 MDVR-4F3AHD mini (LAN/WiFi/GPS) Peripherals: select by [OK] key: close / pass / Cloud。 Baud rate: select the OK key：600/1200/1800/2400/4800/9600/19200/38400/57600/115200。 Data bit: select by [OK] key：6/7/8。 Stop bit: click [OK] key：1/1.5/2。 Check bit: select by [OK] key：Even/Odd/None/Mark/Space。 3.1.29 Cloud platform control Protocol type：Pelco-D/Pelco-P。...

  • Page 32: System Information

    MDVR-4F3AHD mini (LAN/WiFi/GPS) system information 3.1.30 Appendix 1:MDVR common problems and treatment Q: what should a product do when it comes up with a problem that you can't handle? Answer: record the product model and software version number and submit detailed description to our technical support engineer for analysis.
  • Page 33 MDVR-4F3AHD mini (LAN/WiFi/GPS) 1. check whether the hard disk has been formatted after installation, the UN formatted hard disk can not be used. Enter the main menu - the management tool - formatting, formatting the new hard disk once 2. whether the video channel is closed, or whether the timing video is set, and no video time is no longer in the video 3.
  • Page 34 MDVR-4F3AHD mini (LAN/WiFi/GPS) Q: is there a deviation in the geographic location of GPS in the map mountain? Answer: if the GPS module has said positioning signal effectively, a lot of problems cause deviation, government restrictions, error and GPS signal interruption; the actual satellite map for security reasons is the deviation, the general map using GPS correction can solve the problem.
  • Page 35 MDVR-4F3AHD mini (LAN/WiFi/GPS) mode are set according to the requirements. CMS related problems Q: the device has been started, but can't see the vehicle and video on the CMS client? Answer: first confirm the center of the registration server is open and in the network, in view the host device number is already occupied by conflict;...
