Power Sources

House Current (for all models)

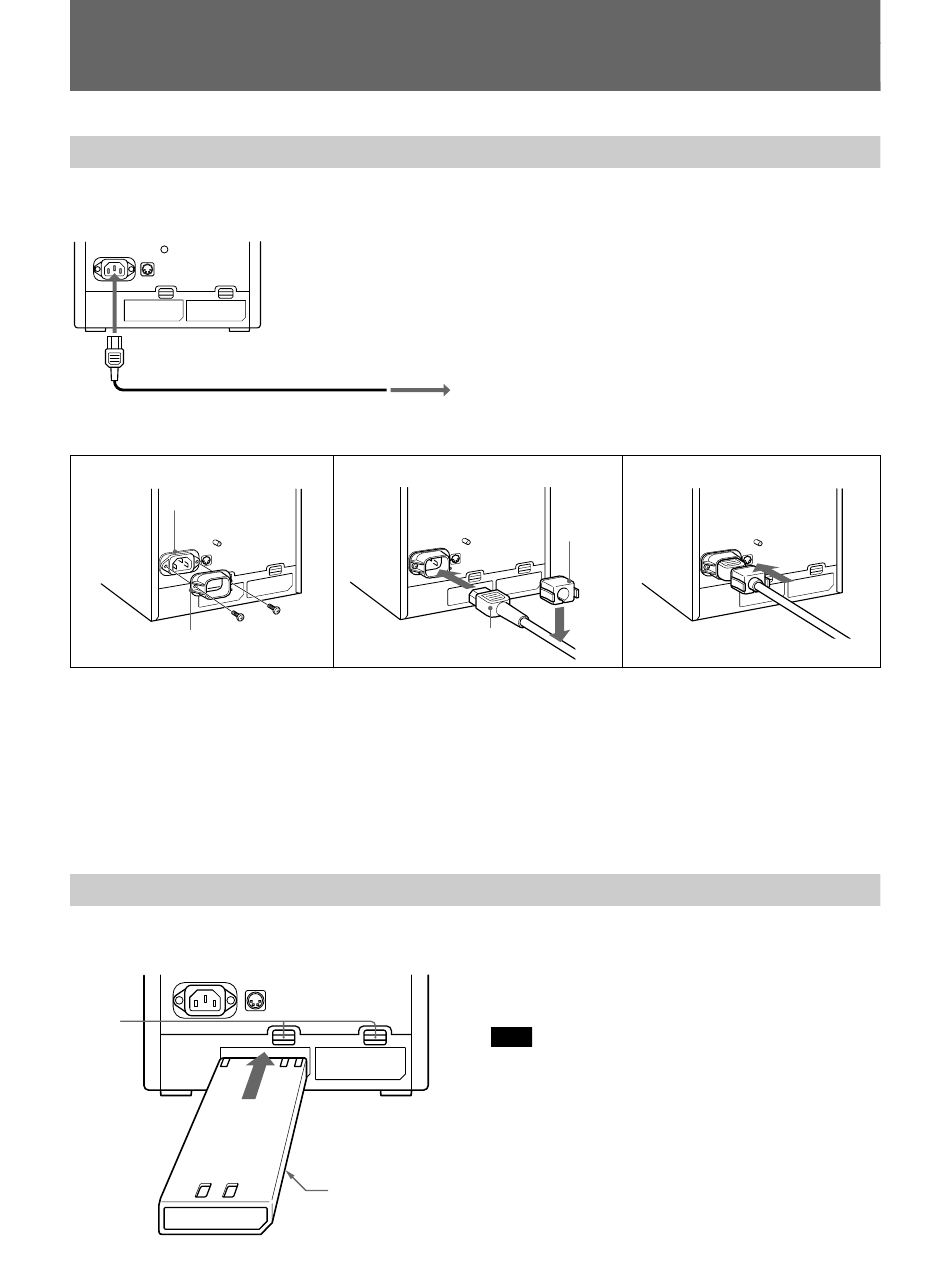

Connect the supplied AC power cord to the AC IN
socket and to a wall outlet.
to AC IN
To connect an AC power cord securely with AC plug holders.
1
AC IN socket
AC plug holder A
1
Remove the AC IN socket screws and then use
them to attach the AC plug holder A (supplied) to
the AC IN socket.
2
Plug the power cord to the AC IN sokcet. Then,
attach the supplied AC plug holder B on top of the
AC power cord.
Rechargeable Battery
The monitor can operate with one or two battery packs.
For extended use, two battery packs are recommended.
EJECT
buttons
NP-1B
(not supplied)
10
When the AC power cord is plugged into the AC IN
socket, the battery pack (if installed) or the AC power
adaptor (if connected) is automatically disconnected.
to a wall outlet
2
AC power plug
3
To remove the AC power cord
Pull out AC plug holder B by squeezing the left and
right sides.
To remove the battery pack, press the EJECT button
upwards.
For charging, use the BC-1WD for the NP-1B.
Note
Make sure you disconnect the cables connected to the
connectors (AC IN, DC 12 V IN) at the rear of the
monitor. Otherwise, the monitor cannot operate on the
battery pack(s).
SONY mark downwards
3
AC plug
holder B
Slide AC plug holder B over the cord until is locks.
