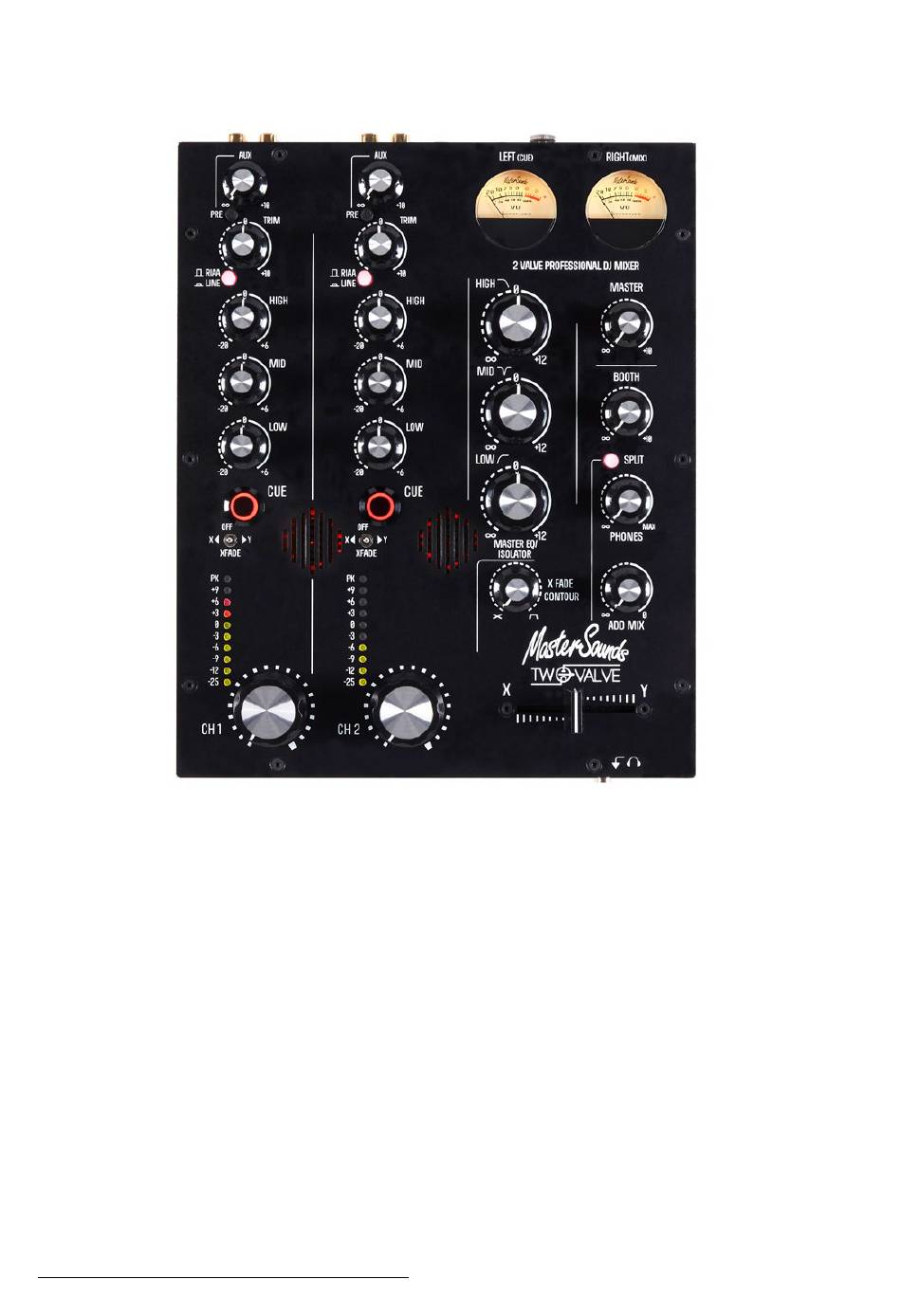

3: Front panel controls

AUX – The AUX send level pot adjusts the amount of channel signal
level sent to the Aux Mix Buss (and on to an external FX unit). Fully
clockwise the signal level is boosted by +10dBu, allowing for precise
adjustment of FX signals.
PRE – The PRE button switches the Aux send feed from Post Fader to Pre
Fader (i.e. set to Pre Fader it will still send to the Aux Mix Buss with
the rotary fader down).
TRIM – The TRIM pot adjusts the input signal level from OFF up to a
maximum of +10dBu, enabling accurate level matching between different
musical sources.
LINE/RIAA – This button selects either the RIAA (Phono) level input in
its top position, or the LINE input in the bottom position as indicated
with screen printed text.
