E L E C T R O N I C C I G A R E T T E K I T
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSYCHE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Totally Wicked PSYCHE

  • Page 1 E L E C T R O N I C C I G A R E T T E K I T USER MANUAL...
  • Page 2 CONGRATULATIONS ON PURCHASING YOUR TOTALLY WICKED PSYCHE ELECTRONIC CIGARETTE KIT...

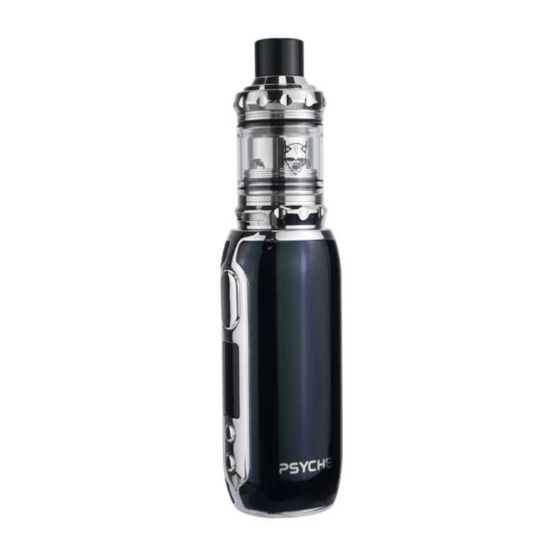

  • Page 3 THE TOTALLY WICKED PSYCHE TANK CONNECTION MOUTHPIECE POWER BUTTON TOP CAP DISPLAY SCREEN + BUTTON - BUTTON AIRFLOW CONTROL...
  • Page 4 THE TOTALLY WICKED PSYCHE AIRFLOW MOUTHPIECE ACRYLIC SLEEVE ATOMIZER HEAD TANK BASE CONTROL RING TOP CAP...
  • Page 5 • Prime the atomizer head. • Fill the tank. • Switch the Psyche on (5 clicks of the power button). • Set the Psyche to 15 watts. • Press and hold the power button and inhale. • Charge the battery (possibly not shipped with a full charge).
  • Page 6 Remove the Rialto tank from the Psyche by unscrewing. Invert the Rialto tank and unscrew the base. Drip a few drops of e-liquid on each of the four e-liquid inlets on the sides of the atomizer head, and into its central hole to fully wet the wicking material.
  • Page 7 USING YOUR PSYCHE...
  • Page 8 USING YOUR PSYCHE Filling the tank Lift up the top section of the tank up and slide in the direction indicated by the arrow. Insert the e-liquid filling nozzle into the fill hole and fill the tank, being careful to leave an air gap of approximately 2mm.
  • Page 9 USING YOUR PSYCHE...
  • Page 10 Charging the battery Press the power button 5 times in quick To charge the battery, connect the succession to turn the Psyche on. To supplied charge lead into a suitable turn the device off, again press the USB connection port, the battery icon power button 5 times repeatedly.
  • Page 11 To change the atomizer head in the Rialto tank, remove the Rialto tank from the Psyche by unscrewing. Unscrew the base of the tank. Remove the atomizer head from the base by unscrewing, and insert a new atomizer head. After fitting a new atomizer head, remember that it will need priming as described in the section “Priming the Atomizer Head”.
  • Page 12 USING YOUR PSYCHE Adjustment of airflow: To adjust the airflow to your personal preference, rotate the airflow control ring located at the bottom of the tank. The more area exposed behind the slots in the airflow ring, the more open the air draw will be.
  • Page 13 While the Psyche is powered on, press battery. The fitted atomizer head can the up and down adjustment buttons be used from 15 to 30 watts. For the simultaneously for 3 seconds.
  • Page 14 USING YOUR PSYCHE Rotating the display: Pressing the up and down buttons simultaneously for 3 seconds when the Psyche is powered off will rotate the screen display through 180°. This can be helpful if you are left-handed. Short circuit protection If a short circuit occurs whilst the power button is pressed, the screen will display “ATOMIZER SHORT”.
  • Page 15 See “Advanced Functions” for more information. Dry Burn Protection The Psyche features automatic Dry Burn Protection (DBP) technology, which prevents atomizer heads from prematurely burning when the e-liquid level is low. This technology is only active with the ML-S 0.6ohm atomizer head.
  • Page 16 ADVANCED FUNCTIONS ADVANCED FUNCTIONS RETURN DISPLAY STEALTH PREHEAT VAPING TIMEOUT VERSION BATTERY VOLTAGE...
  • Page 17 The first function shown is the Return symbol. Pressing the power button with this symbol highlighted, or simply waiting 10 seconds while taking no action, will exit the menu and return the Psyche to normal operation.
  • Page 18 ADVANCED FUNCTIONS Display information: The Psyche can display a choice of a puff counter, total vaping time or voltage output beneath the atomizer resistance reading. Use the up and down buttons to select the Display icon, then press the power button. You can then use the up and down buttons to choose your preferred display information, and select it by pressing the power button.
  • Page 19 ADVANCED FUNCTIONS Stealth mode: The Psyche is equipped with provision for “stealth mode”, where normal use will not activate the screen, but a short press of the power button will allow the display to function normally. Pressing the power button when the Stealth icon is highlighted allows stealth mode to be turned on or off, using up and down buttons to highlight, and power button to select.
  • Page 20 ADVANCED FUNCTIONS Preheat The Psyche’s preheat function allows the atomizer head to heat up quickly by providing additional power for a short period as the power button is pressed. To set the preheat, access the menu by holding the up adjustment button and power button simultaneously.
  • Page 21 ADVANCED FUNCTIONS Vaping timeout: The maximum vaping time on the Totally Wicked Psyche can be changed between 5, 10 or 15 seconds, and can also be turned off. Selecting the Vaping timeout icon allows settings to be selected. Version: Selecting the Version icon allows the current hardware and firmware versions to be displayed.
  • Page 22 ADDITIONAL PRODUCT KIT CONTENTS INFORMATION 1 x Psyche battery There are no reported medical side 1 x Rialto tank effects with this product. If you believe 1 x ML-S 0.6ohm atomizer head (fitted) you experience a side effect, please 1 x ML-S 0.6ohm atomizer head (spare) contact the manufacturer.
  • Page 23 SPECIFICATIONS Psyche Battery Rialto Tank Dimensions: 133mm (length) x 36mm Maximum tank diameter: 26mm (width) x 30.3mm (depth) Tank capacity: 2ml Weight: 187g Filling method: Sliding top fill with Battery capacity: 3000mAh locking mechanism Output modes: Wattage Mode Airflow type: Bottom adjustable Max charging current: 2.0A...
  • Page 24 • Do not use the device when temperatures are outside the range -10 - 60°0C. • Do not charge the battery when temperatures are outside the range 0 - 45°C. • Do not attempt to repair a faulty Psyche as these are sealed units with no serviceable parts. Attempted repairs will void the warranty.
  • Page 25 WARRANTY The Psyche components have a 28-day parts warranty, with the exception of Atomizer Heads, which are consumable items and covered by “dead on arrival” warranty only. The USB cable supplied has a 12-month warranty. If any parts are found to be faulty within this time please contact our customer service team, whose details are on the back page of this booklet and we will arrange for a replacement.
  • Page 26 Manufactured in China under the authority of Pillbox38 UK Ltd, Stancliffe Street, Blackburn, Lancashire, BB2 2QR. Tel 01254 692244 Tel 0941-78447082 www.totallywicked.co.uk www.totallywicked.de...
