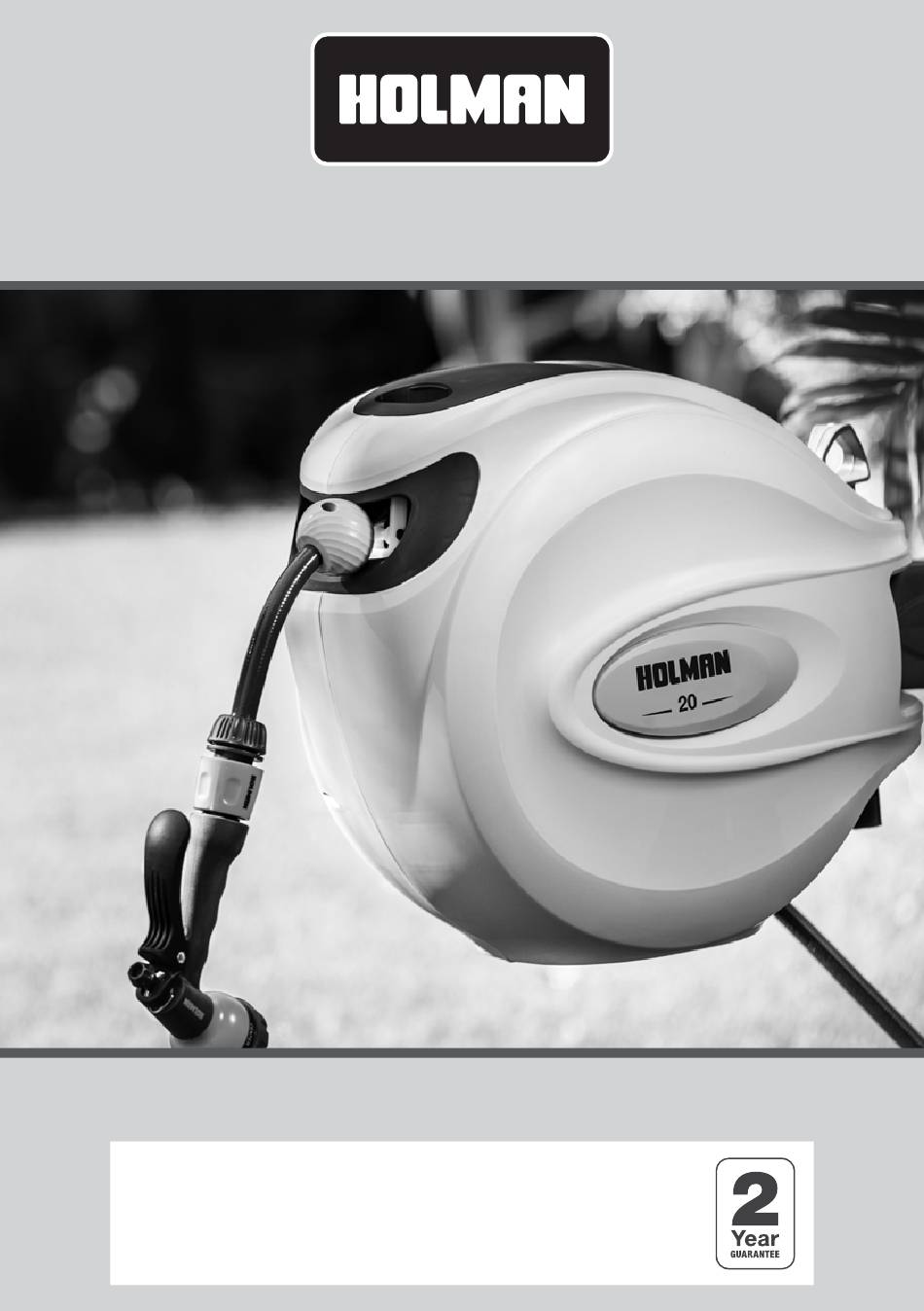

Page 1: Instruction Manual
Retractable Hose Reel 10m / 20m / 30m Models Instruction Manual Installation, Care & Troubleshooting 1110H – Product Dimensions(mm): W:330 H:300 L:170 Weight:3.9kg 1120H – Product Dimensions(mm): W:430 H:370 L:180 Weight: 7.0kg 1130H – Product Dimensions(mm): W:440 H:410 L:220 Weight: 10.4kg... - Page 2 Introduction Thank you for purchasing this HOLMAN Retractable Hose Reel. This product uses a 12mm reinforced hose for added strength and durability, and includes a multi-function hose gun. (Hose Gun styling is subject to change) For your information, please read these installation instructions before using the Retractable Hose Reel.
- Page 3 Check that the tap to reel max 2m (1120H/1130H) hose can reach the tap prior to mounting the max 1m (1110H) hose reel. distance from tap max 2m (1120H/1130H) max 1m (1110H) Take the mounting bracket and place against either a wall or wooden post.
- Page 4 Then replace the mounting tube into its hole to hold the hose reel in place and replace the securing pin into the base of the mounting tube. Connect the tap to reel hose, to the garden tap. distance from tap max 2m (1120H/1130H) max 1m (1110H)
- Page 5 Care & Troubleshooting You will find an indication sticker 1 metre before the maximum length. Do not pull the hose past this point When walking the hose back to the unit, turn off the tap, press the lever on the watering gun to release the water pressure in the hose.
-
Page 6: Spare Parts
Spare Parts Plastic wall bracket Tap to reel hose Mounting Tube Hose stopper To order spare parts please call our customer service team on 1300 716 188. Do not dismantle the hose reel for additional spare parts. Other internal metal parts can cause injury if tampered with. - Page 7 Holman guarantees this product against defects caused by faulty workmanship and materials for 2 years domestic use from the date of purchase. During this guarantee period Holman will replace any defective product. Packaging and instructions may not be replaced unless faulty.
