- Page 1 SIGNALCLOCK V2 Manual Installation and User Guide Firmware Version 1 21/05/2019 www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477...
-
Page 2: Table Of Contents
SIGNALCLOCK V2 Manual CONTENTS Introduction ..........................3 Key Features ........................3 Technical Specifications ....................... 3 Pre-Installation ..........................4 Important Information ..................... 4 Requirements ........................4 Power over Ethernet (PoE) ..................4 DHCP Server ......................5 Installation ..........................6 Mounting the 6-digit Model ..................... 6 Mounting the 4-digit Model ..................... -
Page 3: Introduction

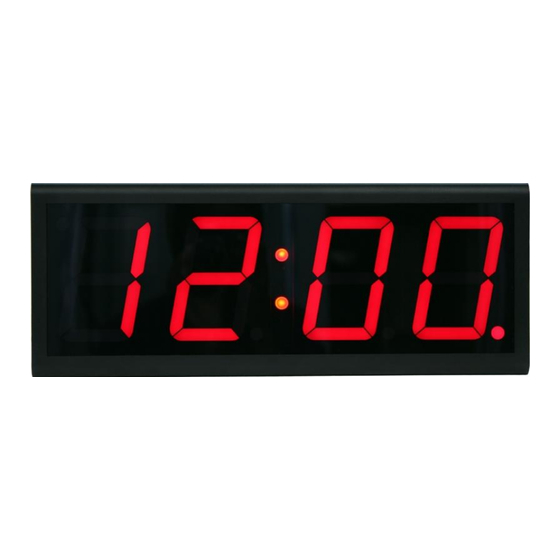

SIGNALCLOCK V2 Manual INTRODUCTION The SignalClock V2 is the latest edition to the SignalClock series, featuring a new user interface for web-based configuration, improved LED-lighting, enhanced durability and greater accuracy. KEY FEATURES ✓ Sleek web Interface for easy configuration ✓... -
Page 4: Pre-Installation
The serial number is located on the rear of the clock and will be required by the Galleon Systems support team for product/warranty verification, should you experience technical issues with your product. -
Page 5: Dhcp Server
The above diagram shows how a power injector fits into the set up. If you have a power injector supplied by Galleon, connect the hub/switch to the port labelled “LAN” on the power injector and connect the clock to the port labelled “PoE” on the power injector. Plug the power supply in and wait for the clock’s display to come on. -
Page 6: Installation
SIGNALCLOCK V2 Manual INSTALLATION The mounting instructions slightly differ for the 4-digit and 6-digit models due to their different dimensions. Please follow the instructions that are relevant for your SignalClock model. MOUNTING THE 4-DIGIT MODEL 1. Locate the two slots on the back of the clock that allow the clock to be mounted to the wall using two screws. -
Page 7: Web Configuration
SIGNALCLOCK V2 Manual WEB CONFIGURATION LOGGING ONTO THE UNIT Using a web browser (such as Chrome, Mozilla Firefox, Microsoft Edge or Internet Explorer), enter the IP address of the clock into the browser’s address bar. If you are unsure of the IP address, disconnect and reconnect the power to the clock and watch the clock’s display for the IP address. -
Page 8: Home
SIGNALCLOCK V2 Manual HOME The Home page provides you with an overview of the following: The current software version and its release date. A date and timestamp of when the clock last received a response from an NTP server. The IP address of the NTP server used for the last update. The MAC address of the clock. -
Page 9: Network Settings
SIGNALCLOCK V2 Manual NETWORK SETTINGS IP address settings are configured on the Network Settings page. You can either: • Enable Dynamic Host Configuration Protocol (DHCP), which will make the clock request network settings from a DHCP server. • Choose STATIC and manually enter the network settings for the clock (ensure the IP address is not already in use by another device). -
Page 10: Time Server Address
TimeSync. This minimises the chance of being banned by the public time server. You should contact Galleon Systems for more information, and you will need to purchase licenses before using TimeSync. -
Page 11: Display Format
SIGNALCLOCK V2 Manual DISPLAY FORMAT Use this page to set either 12-hour or 24-hour display modes. 12-hour mode features a dot in the top-left corner of the screen to indicate whether the current time is AM or PM. If the dot is off, it means the current time is AM. www.galsys.co.uk TEL: +44 (0) 121 608 4433... -
Page 12: Timezone Settings
SIGNALCLOCK V2 Manual TIMEZONE SETTINGS By default, the clock will display Coordinated Universal Time (UTC). The Time Zone page allows you to add an offset so that the clock displays the correct time for your time zone. Simply choose whether the offset is plus or minus to UTC and specify the hours and/or the minutes of the offset. For example, the below configuration would be correct for Montréal, Canada, which has a UTC-05:00 offset: Click the Apply Changes button and the change will take effect immediately. -
Page 13: Daylight Saving Time
SIGNALCLOCK V2 Manual DAYLIGHT SAVING TIME By default, the clock will not have daylight saving time (DST) enabled. You will need to enter the DST settings for your time zone manually. To enable DST, select ‘Enable DST’ and enter the settings required. These settings determine when DST starts and ends. -
Page 14: Firmware Upgrade
SIGNALCLOCK V2 Manual FIRMWARE UPGRADE Any firmware updates are applied on the Firmware Upgrade page. The latest firmware can be downloaded from here: https://support.galsys.co.uk/index.php?/Knowledgebase/List/Index/19/digital-clocks To upgrade the firmware on the clock, simply click Browse and locate the firmware file. Next, click Upload. -
Page 15: Change Password
SIGNALCLOCK V2 Manual CHANGE PASSWORD It is recommended that you change the default password of your SignalClock. This can be done on the Change Password page. The password must be at least four characters, and special characters can be used (!ӣ$%^&*). We also recommend noting down the web interface password and keeping it in a secure location. -
Page 16: Resetting The Clock
SIGNALCLOCK V2 Manual RESETTING THE CLOCK To reset clock, use a small pin to press and hold the reset button (located on the rear of the clock) while the unit has power and network access. The clock will countdown from ten. Ensure you keep the reset button pressed down for the duration of the countdown or the reset will be cancelled. -
Page 17: Quick Setup Guide
SIGNALCLOCK V2 Manual QUICK SETUP GUIDE 1. Connect the clock via Ethernet to either a PoE enabled switch or a power injector. 2. By default, the clock will have DHCP enabled. If a DHCP server is unavailable, the clock will assign itself the IP address: 169.254.0.1. -
Page 18: Help
Reconnect the network cable and watch the digital clock face for the IP address. If you are unable to resolve your issue, please contact Galleon Support. Contact details can be found in the “Support and Maintenance” section of this manual. -
Page 19: Support And Maintenance
In case of repair, the product must be returned to Galleon Systems. This warranty does not apply if repairs are required due to acts of nature beyond Galleon Systems’ control, such as, but not limited to, lightning strikes, power surges, misuse, damage, neglect or if repairs/modifications have been made or attempted by anyone other than the personnel authorised by Galleon Systems.
