- Page 1 2013. 06. 21 Products by CE certificate Instruction Manual - YF series BLDC Screwdriver - Usage : Micro oven, Refrigerator, Washing Machine, Automobile & home appliances assembly...
-
Page 2: Table Of Contents
NDEX Contents Page 1. General safety rules (English) 2. Specific safety rules (English) 1. General safety rules (French) 2. Specific safety rules (French) 3. Screwdriver Set composition & features 4. Screwdriver 4.1 Specification 4.2 Available bit socket 4.3 Torque curve at maximum speed 4.4 Information by LED display 4.5 Dimensions 5. -
Page 3: General Safety Rules English
ENGLISH 1. GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury SAVE THIS INSTRUCTIONS 1.1 Work Area Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. - Page 4 your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools may result in personal injury. Remove adjusting keys or switches before turning the tool on.
-
Page 5: Specific Safety Rules (English)
2. SPECIFIC SAFETY RULES 2.1 Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operatior. 2.2 Never lubricate aerosol oil on to the electrical part. - Page 6 dans un outil 곩lectrique augmente le risque de choc 곩lecrique. Ne maltraitez pas le cordon. Ne transportez pas l`outil par son cordon et ne d곩branchez pas la fiche en tirant sur le cordon. N`exposez pas le cordon 고 la chaleur, 고 des huiles, 고 des ar곪tes vives ou 고 des pi골ces en mouvement.
-
Page 7: Specific Safety Rules (French)
travail qui lui est propre. N`utilisez pas un outil si son interrupteur est bloqu곩. Un outil que vous ne pouvez pas commander par son interrupteur est dangereux et doit 곪tre r곩par곩. D곩branchez la fiche de l`outil avant d`effectuer un r곩glage, de changer d`accessoire ou de ranger l`outil. -
Page 8: Screwdriver Set Composition & Features

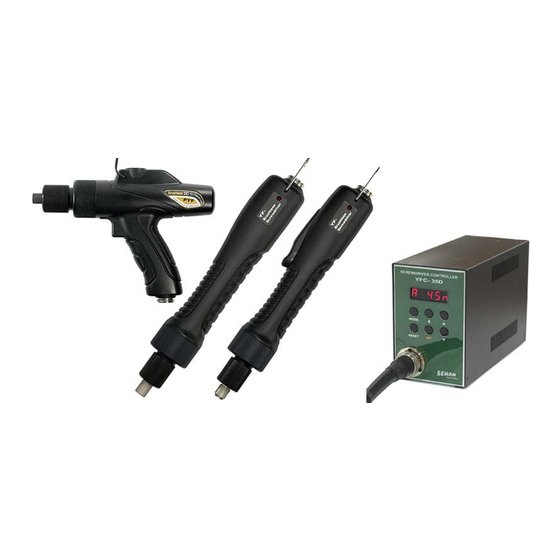

3. Screwdriver set composition and features Screwdriver set contains screwdriver, controller and cable. Information by LED display SH-14P-YF Cable (3m) ESD grip (Option) Flat groove ring for mounting Screwdriver Standard controller YFC-35D Main Feature ■ Long life time of BLDC motor (No Carbon brush ) ■... -
Page 9: Specification
* Standard 14P-YF driver cable length = 3m 4.2 Available bit size The hexagonal bit size should be selected between A and B as below 1/4" 14mm 4.3 Torque curve at Max. speed PYF35N, YFA35N YF30N, YF30NP - 8 -... -
Page 10: Information By Led Display
YF45N, YF45NP PYF50N, YFA50N YF90N, YF90NP PYF100N, YFA100N 4.4 Information by LED display LED display Alarm Description Reset ● RED 1 Over Voltage (over 37V) Light On-Off blink (0.5s) Auto reset under 37V ● RED 2 Overload (8A / 0.5s) Light On-Off blink (0.5s) Auto reset after 5s Overheat (over 80 ℃... - Page 11 4.5 Dimensions YF30N, YF45N, YF90N, YF30NP, YF45NP, YF90NP PYF35N, PYF505N, PYF100N - 10 -...
-
Page 12: Dimensions
5. Controller 5.1 specification Model YFC-35D Safety certificate CE by MET ( EC countries ) Rated Input 230 VAC 50~60Hz, 2.5A Rated Output 35 VDC ±5%, 140W Maximum output current 10 A Intermittent operation 10s On / 30s Off Dimensions 95(W) x 221(D) x 143(H) mm Weight 2.4 Kg... -
Page 13: Dimensions
5.3 Dimensions 6. Operation 6.1 Key buttons There are 3 mode in circulation by pressing MODE button. Once it is logged in, it is effective until the power OFF. Auto Log-in Factory setting password :"0" Parameter button : MODE By pressing the MODE button, it circulate Auto, mode. - Page 14 button Log-in is required for parameter setting with password Log-in Mode Initial password "0" can be changed on PYord Parameter Mode Cursor shift up to left at the Parameter mode button Auto(Work) Mode Select the next preset number Log-in & Password It increase the number up button time...
-
Page 15: Parameter Setting On Front Panel
It returns to the previous mode. Also it reset the error 6.2 Parameter setting 6.2.1 Driver model selecting ( ModEl ) ..P1 Choose one of the right model number between 30n, 45n, 90n, 35n, 50n and 100n for the connected screwdriver as below ; YF30N YF45N YF90N PYF35N PYF50N... - Page 16 6.2.6 Multi-hit setting ( M_hit ) ..P6 Number of torque up by clutch can be selected from 1 to 10 times. Factory setting is 1 time. 6.2.7 Mult-sequence ( M_FSt ) ..P7 Available to program multi step operation in sequence. oFF : Disable on : Enable 6.2.8 Multi_1 : First angle in turn ( Frt.Ag) ..
-
Page 17: In/Out Interface
6.2.15 Parameter initialization to factory setting ( Pinit ) ..P15 All parameter will be changed to it's original torque setting. Password is "77" 6.2.16 Firmware version display ( VEr ) ..P16 7. I/O details 7.1 Port on back panel Firmware version Firmware Upgrade select ↑... -
Page 18: I/O Interface Port Details
7.2 I/O interface port details on back panel Pin no. In / Out Interface Torque Up ⑤ Motor Run ⑨ Out COM Remote Start ⑥ Driver Lock ① Reverse rotation In COM 7.3 I/O interface diagram YFC-35 24V or 0 V 20mA TORQUE UP 20mA... - Page 19 8. Error display The YFC-35 controller shows error code number when it detect any failure during operation. The error code are as below Code Description Trouble shooting Screwdriver not connected Check the cable connection SMPS fault. Turn off the power and On again after The power supply system will 1 min.
