Summary of Contents for Bame TIGER 230 V

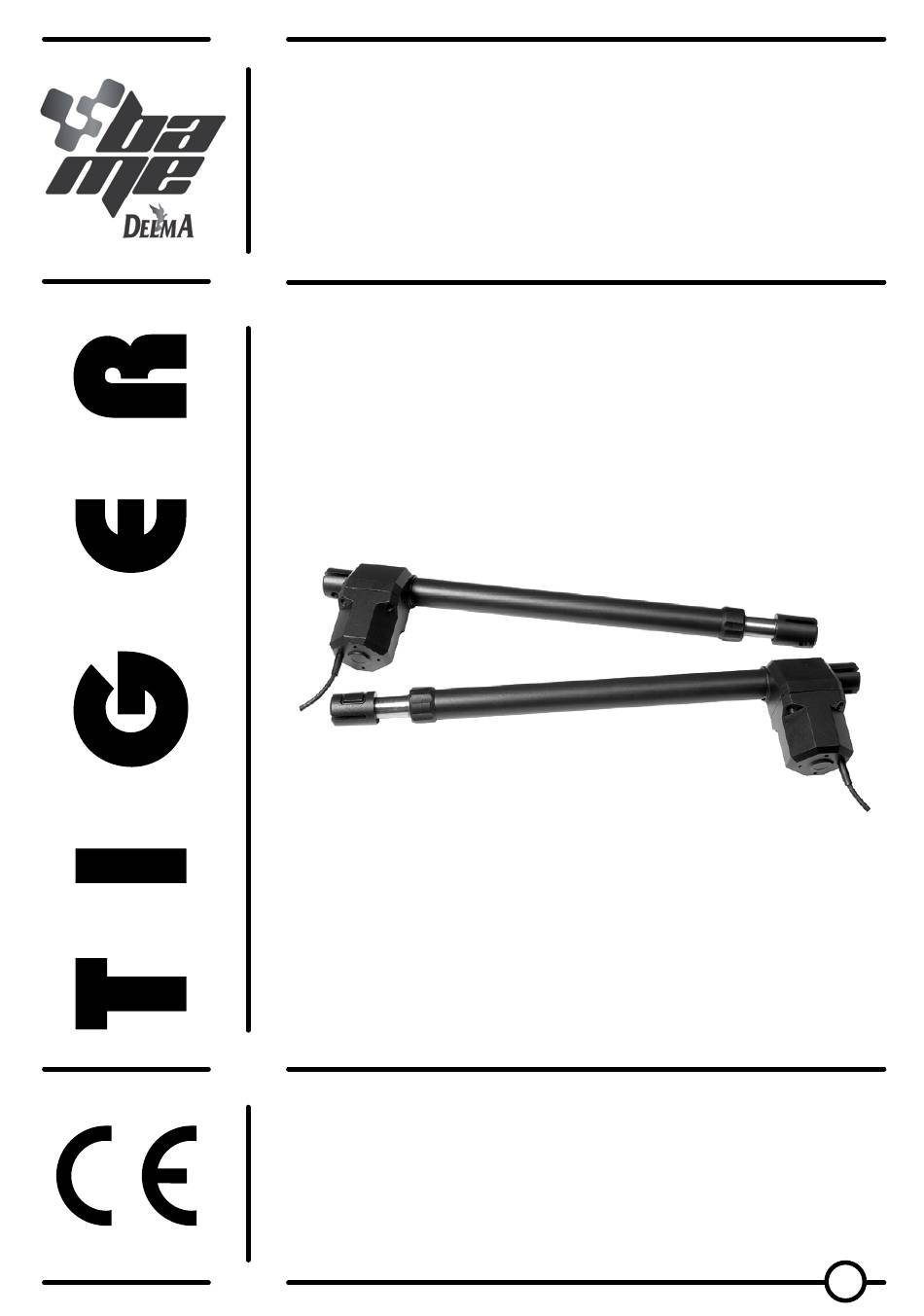

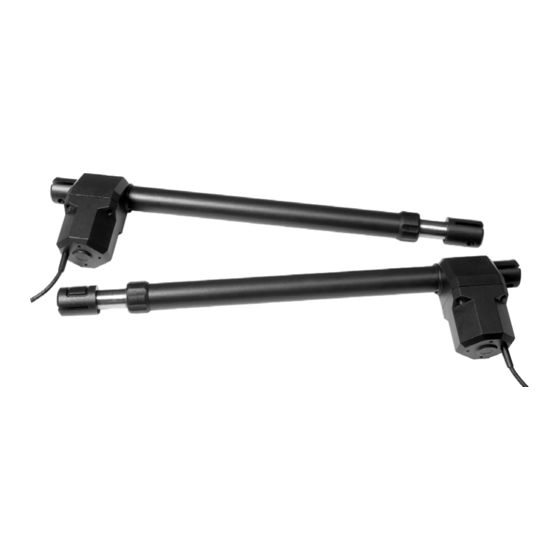

- Page 1 Electromechanical irreversible motoreducer for swings gates up to 3,5 meters. Residential use 230 V Intensive use 24 V Installer manual READ THIS MANUAL CAREFULLY BEFORE PROCEEDING WITH THE INSTALLATION KEEP THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Technical Features
Keep safety distance! The 24 V operator can be provided with an emergency battery for the automatic move of the swing also during a black out. WARNING Technical features TIGER 230 V TIGER 24 V 230V 50-60Hz 230V 50-60Hz Main supply... -
Page 3: Pre-Installation Check
Precautions required to install the motoreducer Before installing the motor always read all the manual. The manual not only explain how to install the motor in the correct way but explain also which safety standard the gate must respect. Pre installation check Verify that the swing of the gate: - can rotate properly, without hangings;... - Page 4 2,5 mt of height. BAME s.r.l. is liable only for the individual articles produced and sold by BAME. the gate with the motor it’s considered a machine and must respect the machinery directives, the installer must verify the safety of the gate with the motor and is liable for any damage due to a poor installation.
- Page 5 Emergency release system: In case of need follow these instructions to unlock the motor: 1. Open the plastic cap placed above the motor and insert the key ATTENTION: 2. Turn the key of 180° untill the stop point in order to unlock the motor THIS SHEET 3.
-
Page 6: Declaration Of Conformity
Declaration of conformity (must be filled by the installer) DECLARATION OF CONFORMITY “A” The undersigned Name: ......................Surname:..................... responsible of the installation of the system declare that the product: Gate type: ..............Address: ..............................satisfies all the technical regulations applicable to the product within the scope of Council Directives 73/23/EEC, 89/336/EEC, 98/37/EEC and subsequent modifications. - Page 7 Declaration of conformity DECLARATION OF CONFORMITY “B” BAME srl Via Leonardo da Vinci, 23 46020, San Giacomo Segnate (MN) Italia declare that the product motoreducer for sliding gates, see the instruction manual for compatible gates TIGER satisfies all the technical regulations applicable to the product within the scope of Council Directives: MACHINERY DIRECTIVE 98/37/CEE AND SUBSEQUENT MODIFICATIONS.
-
Page 8: Safety Checks
Safety checks IMPACT Checks: The ruggedness and the fastening of the structure is adeguate. The swing can not fall in the ground. The threshold of the gate it’s modeled not to create hindrance. Limit switch are installed and verified. CRUSHING The moving parts are equipped with adeguate protections installed in compliance with the safety standards. - Page 9 Installing the motoreducer For the dimensions of the motoreducer see the figure in page 4. You must pay attention to the position of the motoreducer with reference to hinges of the swing: - fix the exact opening angle of the swings (95° or 120°) as shown in fig. 5; - respecting the measures on fig.
-
Page 10: Electrical Plant
Electrical plant For the electrical connections use the following cables (fig.1): - 3x1.5 main power supply 230 V - 2x1.5 + 1xRG58 flashing light + antenna - 2x1 photocell transmitter - 4x1 photocell receiver - 3x1 keyswitch - 2x1 electric lock - 4x1.5 for motor 230 Volt - 2x2.5 for motor 24 Volt All cables must be protected with rubber pipes to be inserted in the... -
Page 11: Special Installation
Special installation Rear External stirrup Front stirrup opening. External motor. Swing hinge Swing Pillar External opening. Pillar Swing hinge Swing Internal motor. Rear WITH THIS KIND OF stirrup Front INSTALLATION, stirrup 740 mm ABOUT 60 WALKING SPACE CM ARE LOST... -
Page 12: Warranty
It is forbidden to replace any electric, electronic or mechanic part with not e-mail:info@bame.it original spare parts. BAME s.r.l. , has the right to modify or change the electronic boards and Grottazzolina (FM) 63844, Italy manuals, without prior notice.
