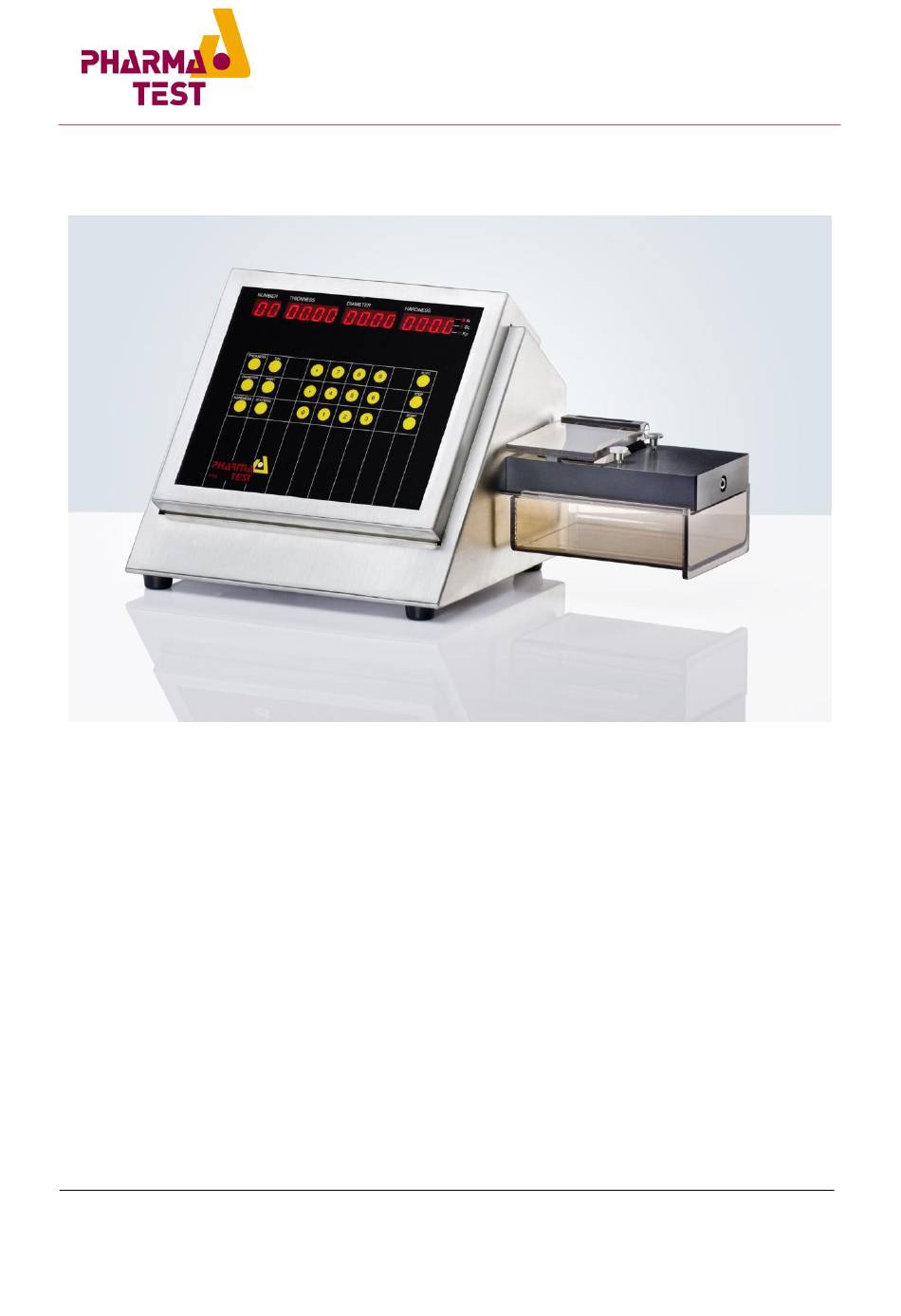

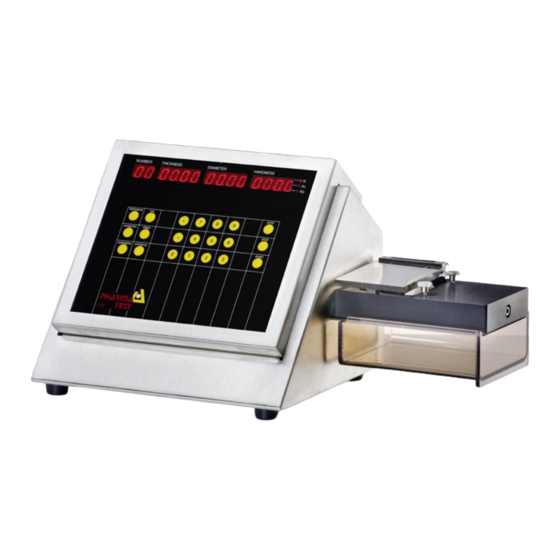

PTB 311E – Manual 3-in-1 Tablet Testing Instrument
The manual tablet testing instrument PTB 311E is a dual force mode hardness test apparatus as it
can be used for either linear force or linear speed increase while tablet hardness is tested. It offers a
multiple point validation procedure for the built-in digital load cell.
The instrument is made in strict compliance with the
Enter the nominal test information for thickness, diameter or length and hardness as well as a batch
number via the PTB 311E keyboard. Select the units to measure, mm - Inch, KP (Kilopond), N
(Newton) or Sc (Strong Cobb). Now place the sample onto the sample upright in to the Thickness Jaw
and start the test. The driven jaw will run forward, touch and force the tablet at its highest point to
measure the thickness, thereafter it reverses back so that the sample falls into horizontal position to
test its diameter (length) and immediately its hardness (tablet breaking force).
The 3 result are immediately displayed and printed to a connected dot-matrix or suitable PCL5 type
laser- or Deskjet printer. Repeat this until your series has been tested, get a full print-out including
each individual result, date, time, serial number of the instrument, batch number of the product tested,
mean value and deviations of the test series.
Pharma Test Apparatebau AG
Siemensstr. 5
63512 Hainburg/Germany
PTAG_29-02860_PTB311E_v2.2E.docx
PTB 311E & PTB 511E – Manual 3-in-1 Tablet Testing Instrument
Page 1 of 6
EP <2.9.8>
and
USP <1217>
P: +49 6182 9532 600
F: +49 6182 9532 650
info@pharma-test.de
www.pharma-test.com
Pharmacopoeia.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pharma Test PTB 511E
Summary of Contents for Pharma Test PTB 511E
- Page 1 PTB 311E & PTB 511E – Manual 3-in-1 Tablet Testing Instrument PTB 311E – Manual 3-in-1 Tablet Testing Instrument The manual tablet testing instrument PTB 311E is a dual force mode hardness test apparatus as it can be used for either linear force or linear speed increase while tablet hardness is tested. It offers a multiple point validation procedure for the built-in digital load cell.
-
Page 2: Operating Principle
Which Force Mode Should Be Selected? For more than 18 years all Pharma Test hardness testing instruments offer the possibility to select either linear force or linear speed increase. Linear force increase is the recommended setting as it offers the most accurate control, as the rate of increase is directly controlled by the electronic load cell used to read the force. - Page 3 PTB 311E & PTB 511E – Manual 3-in-1 Tablet Testing Instrument Pharma Test offers the PT-MT magnetic tablets to calibrate the breakpoint detection of the whole tablet hardness testing instrument (force sensor and mechanics of the instrument). All Pharma Test tablet hardness testing instruments are fully compliant to the requirements of the current USP Pharmacopeia.
-
Page 4: Standard Scope Of Supply
PTB 311E & PTB 511E – Manual 3-in-1 Tablet Testing Instrument Advantages Some of the highlights the PTB 311E offers are: Select either linear force or linear speed increase (dual mode selection) Entry of time and date ... - Page 5 PTB 311E & PTB 511E – Manual 3-in-1 Tablet Testing Instrument Options In addition to the standard scope of supply Pharma Test offers a broad range of accessories and options including: Tension test set to test break line force of shaped tablets ...
-
Page 6: Technical Data
PTB 311E & PTB 511E – Manual 3-in-1 Tablet Testing Instrument Technical Data Parameter Specification Display LED Display showing number of tests and results Data Entry Numerical and Functional keys Standard Force Range 5.0 to approximately 300N Accuracy < 1N Resolution 0.074N (300N model) - 0.1482N (500N model)
