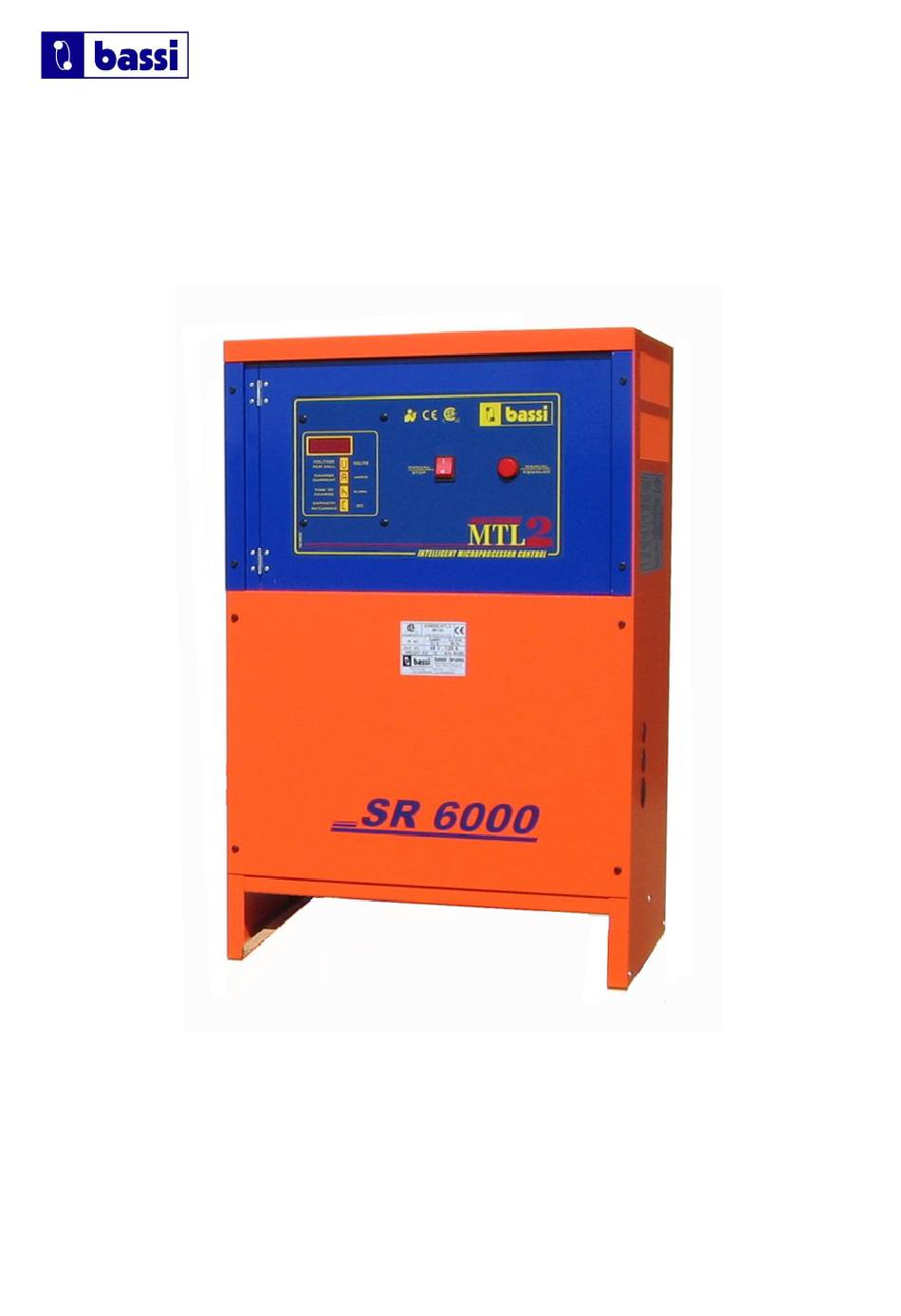

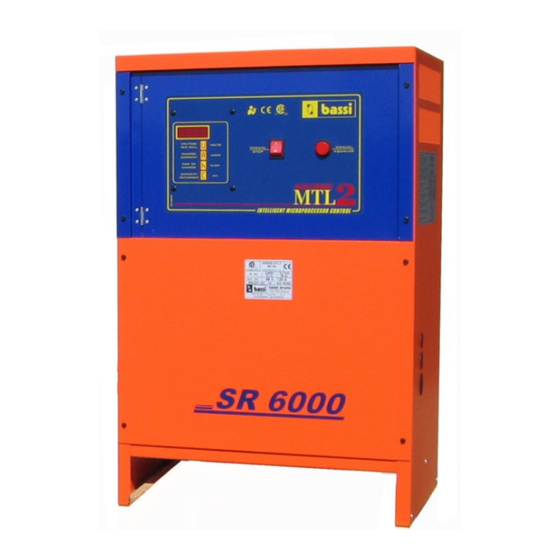

SR2400 – SR4803 - SR6000
User's Manual
___________________________________________________________________________________________________________________________________________________
EAGLETRONIC MTL2
SR2400, SR4803, SR6000
USER'S MANUAL
V2.1 – May 2006
www.eagletronicchargers.com
__________________________________________________________________________________________________________________________________________________
Page 1/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bassi EAGLETRONIC MTL2 Series
Summary of Contents for Bassi EAGLETRONIC MTL2 Series
- Page 1 SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ EAGLETRONIC MTL2 SR2400, SR4803, SR6000 USER'S MANUAL V2.1 – May 2006 www.eagletronicchargers.com __________________________________________________________________________________________________________________________________________________ Page 1/18...
-
Page 2: Table Of Contents
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ INDEX · 1. SAFETY INSTRUCTIONS AND WARNINGS..........3 · GENERAL........................3 · SHOCK PREVENTION....................3 · BURN AND BODILY INJURY PREVENTION.............. 4 · FIRE AND EXPLOSION PREVENTION..............4 · ARCING AND BURNING OF CONNECTOR............... 4 ·... -
Page 3: Safety Instructions And Warnings
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ 1. SAFETY INSTRUCTIONS AND WARNINGS Before to start using your EAGLETRONIC MTL2 battery charger, please take the time to read these instructions carefully. The owner’s manual is an important part of the charger. It’s recommended to keep it in good condition for the lifetime of the charger. -
Page 4: Burn And Bodily Injury Prevention
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ SERVICE AND MAINTENANCE – Shut OFF all power at the disconnect switch or line breaker BEFORE inspecting, adjusting, or servicing the equipment. Lock switch OPEN (or remove line fuses) so that the power cannot be turned ON accidentally. Disconnect power to equipment if it is to be left unattended or out of service. -
Page 5: Description Of The Charger
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ DESCRIPTION OF THE CHARGER EAGLETRONIC MTL2 battery chargers have been designed to charge Lead-Acid batteries. These units convert the AC input to a DC output at the correct voltage. The charge curve is of the type Wa. -
Page 6: Installation Of The Charger
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ 3. INSTALLATION OF THE CHARGER Conditions of use: Operating temperature: 5°C to 45°C • Storage temperature: -20°C to 60°C • Relative humidity: less than 75% • • CAUTION! Risk of electrical shock! The charger can be installed by qualified personnel only. -
Page 7: Ac Input Connection
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ AC INPUT CONNECTION The charger must be connected to the AC input using an adequate cable and plug, with disconnect switch and fuses. The AC input wires have to be connected to the TERMINAL BLOCKS FOR AC INPUT WIRES, that are located on the right side of the internal panel, just under the AC input contactor. -
Page 8: Ac Input Voltage Settings
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ AC INPUT VOLTAGE SETTINGS ATTENTION! The proper setting of the power transformer taps is fundamental for the correct operation of the EAGLETRONIC MTL2 chargers. If the real AC input voltage is different than the AC nominal voltage to which the charger is set, the charging current of the charger may be significantly different than the nominal. - Page 9 SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ Singlephase units (SR2400) Threephase units (SR4803 & SR6000) __________________________________________________________________________________________________________________________________________________ Page 9/18...
-
Page 10: How To Use The Charger
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ HOW TO USE THE CHARGER PROGRAMMATION OF THE GASSING POINT ATTENTION! The proper programmation of the gassing point is important for the correct operation of the EAGLETRONIC MTL2 chargers. Only expert users should modify these settings. The possibility to program the gassing point may help the user to adjust the charging curve to the requirements of the battery during all its life. - Page 11 SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________________________________ Page 11/18...
-
Page 12: Battery Connection - Voltage Check And Autostart
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ GASSING DS #2 DS #3 POINT 2.35 V/cell 2.40 V/cell 2.45 V/cell 2.50 V/cell When a battery will be connected to the charger, the programmed gassing voltage will be shown on the display during the startup sequence. BATTERY CONNECTION –... -
Page 13: Charge Operation
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ CHARGE OPERATION When the charge is started, the digital display will start showing the following parameters: Voltage per cell of the battery (Volt); • Charge current; (Ampere); • Capacity charged; (Ah); • Time of charge. -
Page 14: Safety Timer - Emergency Stop
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ When the battery reaches the gassing voltage, the charge continues for one half of the time needed to reach the gassing voltage, with a minimum total time of 30 minutes. Examples: if the battery reaches the gassing voltage in 1 minute, the final charge will •... -
Page 15: Blown Fuse Detection
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ BLOWN FUSE DETECTION If the output fuse is blown or absent, the display will show the message “Fuse”: • This message may appear also if the battery has been left discharged for long time, causing the sulphation process on the plates. -
Page 16: Equalize & Refresh Modes
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ EQUALIZE & REFRESH MODES ATTENTION! The proper programmation of the equalize & refresh modes is important for the correct operation of the EAGLETRONIC MTL2 chargers. Only expert users should modify these settings. Eagletronic MTL2 chargers have a complete set of programmable equalize &... - Page 17 SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ AUTO EQUALIZE + REFRESH The AUTO EQUALIZE + REFRESH function is totally managed by the MTL2 microcontroller. It can be enabled by moving the internal DIPSWITCH #4 to position ON (see the description of the programmation dipswitches in the previous paragraphs).
-
Page 18: Manual Charge Termination
SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ If the voltage drops down below the minimum threshold, the charger will give an extra charge cycle to keep the battery in perfect condition, and the display will show the scrolling message: “Refresh”. - Page 23 SR2400 – SR4803 - SR6000 User's Manual ___________________________________________________________________________________________________________________________________________________ Bassi Bruno elettromeccanica & C. S.n.c. Via Mensa 3/2, 48020 S. Maria in Fabriago – Lugo (RA) Tel +39 0545 995008 Fax +39 0545 995006 info@batterychargers.it __________________________________________________________________________________________________________________________________________________...
Need help?
Do you have a question about the EAGLETRONIC MTL2 Series and is the answer not in the manual?
Questions and answers
What do I do if the voltage in my batteries is to low?
If the voltage in your Bassi EAGLETRONIC MTL2 Series batteries is too low, check the input voltage setting on the charger. A mismatch between the input voltage setting and the actual input voltage (e.g., the input is set to 610 V but the real voltage is 575 V) can result in a lower charging current, causing the battery to take longer to charge. Adjust the input voltage setting to match the actual input voltage. If the issue persists, it is recommended to call the service for a complete system check.
