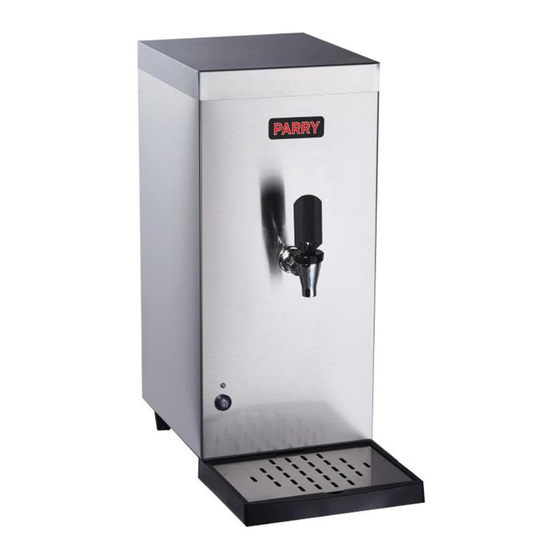

PARRY AWB3 Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION REF: IN100
ISSUE No.
6
DATE 06.06.16
Page 1 of 21
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE DATE:
DISTRIBUTOR:
INSTRUCTIONS
MODEL: AWB3 & AWB6
WATER BOILER
SAFETY INSTRUCTIONS
TECHNICAL DATA
INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
MAINTENANCE INSTRUCTIONS
EXPLODED VIEW / PARTS LIST
FAULT DIAGNOSTICS
WIRING DIAGRAM
WARRANTY INFORMATION
DISPOSAL INFORMATION
Customer Information
______________________
______________________
______________________
______________________
www.parry.co.uk
