http://www.conrad.com
Imprint
These operating instructions are published by Conrad Electronic SE, Klaus-Conrad-
Str. 1, D-92240 Hirschau/Germany.
All rights reserved.
No reproduction (including translation) is permitted in whole or part e.g. photocopying,
microfilming or storage in electronic data processing equipment, without the express
100%
written consent of the publisher.
recycled
paper.
The operating instructions reflect the current technical specifications at the time of
print. We reserve the right to change the technical or physical specifications.
Bleached
without
© Copyright 2007 by Conrad Electronic SE. Printed in Germany.
chlorine.

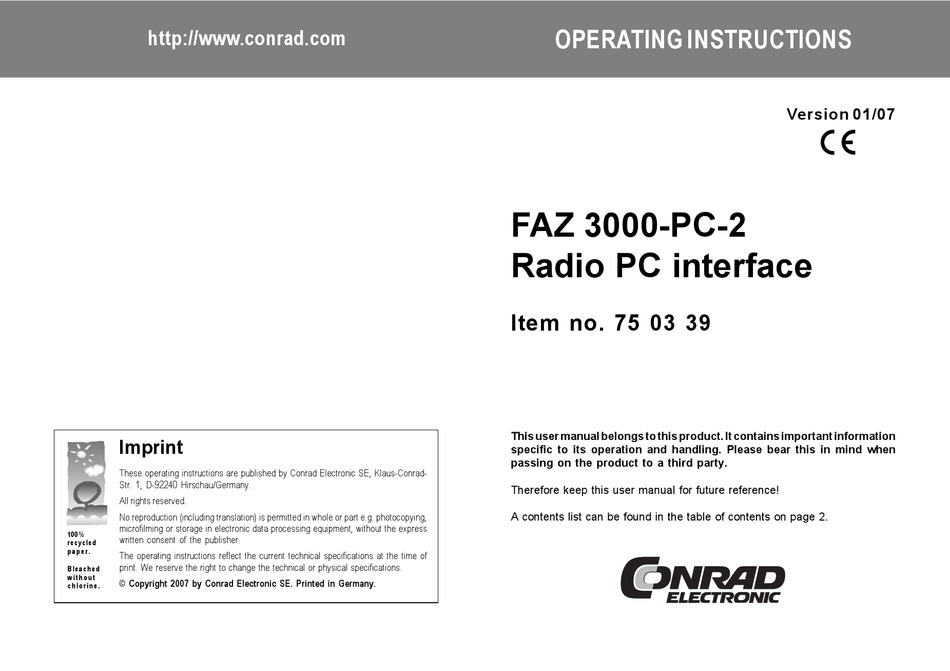

OPERATING INSTRUCTIONS
FAZ 3000-PC-2
Radio PC interface
Item no. 75 03 39
This user manual belongs to this product. It contains important information
specific to its operation and handling. Please bear this in mind when
passing on the product to a third party.
Therefore keep this user manual for future reference!
A contents list can be found in the table of contents on page 2.
Version 01/07
Advertisement
Table of Contents
Related Manuals for Conrad Electronic FAZ 3000-PC-2
Summary of Contents for Conrad Electronic FAZ 3000-PC-2
- Page 1 Please bear this in mind when passing on the product to a third party. These operating instructions are published by Conrad Electronic SE, Klaus-Conrad- Str. 1, D-92240 Hirschau/Germany. Therefore keep this user manual for future reference! All rights reserved.
-
Page 2: Table Of Contents
Table of contents Page 1. Introduction ..................3 2. Prescribed use ..................4 3. Scope of delivery ................5 4. Explanation of icons ................5 5. Safety instructions ................6 a) General information ............... 6 b) Batteries and rechargeable batteries ..........7 6. -
Page 3: Introduction
1. Introduction Dear customer, Thank you for purchasing this product. This product meets the requirements of both current national and European guidelines. In order to ensure continued fulfilment of legal requirements and safe operation of this product, we kindly ask you to carefully follow the instructions in this user manual! Please read the user manual completely and observe the safety and operation instructions before using the product! -
Page 4: Prescribed Use
2. Prescribed use The radio PC interface ‘FAZ 3000-PC-2’ is only suitable for use with the wireless alarm system ‘FAZ 3000’. The PC interface is used to configure and remote control the ‘FAZ 3000-Z’ alarm base station. The individual components can then be simply and easily configured or set using the accompanying software (only for Windows®). -
Page 5: Scope Of Delivery
3. Scope of delivery • ‘FAZ 3000-PC-2’ radio PC interface • Assembly material • User manual 4. Explanation of icons The icon with a lightning flash in a triangle is used to alert you to potential personal injury hazards such as electric shock. -
Page 6: Safety Instructions
5. Safety instructions The product’s guarantee becomes invalid, if the product is damaged as a result of the failure to observe these operating instructions! We do not assume any liability for any result- ing damages! We do not assume liability for damage to property or personal injury caused by improper use or failure to observe the safety instructions. -
Page 7: B) Batteries And Rechargeable Batteries
• Do not leave packaging material lying around. This may become a dangerous plaything in the hands of children. • Handle the product with care; knocks, blows or even a fall from a low height can damage it. b) Batteries and rechargeable batteries •... -
Page 8: Operation Using Batteries And Power Supply
6. Operation using batteries and power supply a) Operation using batteries The advantage of battery operation is that it allows totally self-sufficient system operation. The drawback of battery-only operation is that the wireless receiver in the PC interface is not continuously switched on due to its high power consumption, otherwise the batteries would be used up too quickly. -
Page 9: Installation
7. Installation a) Notes on selecting the installation location • The PC interface must be installed in a dry indoor room (not in a damp cellar or bathroom, for example). • A serial interface (RS232) must be available on the computer for connection to the computer. -
Page 10: B) Opening The Casing, Control Panel
b) Opening the casing, control panel To open the casing, carefully open the catches on the left side of the casing by pushing inwards with a flat screwdriver, until the half shells come apart. First press one catch inwards and pull the casing approx. 2-3 millimetres apart at this location. - Page 11 Figure 1...
-
Page 12: C) Freestanding Set-Up
c) Freestanding set-up • If you are using a power supply (12V=, 100mA, inner contact must be ‘plus’, ‘+’), then you need to lead the cable through the opening on the lower side of the PC interface and connect it to the ‘BU1’ socket (‘C’). •... - Page 13 • Depending on the type of wall, drill a hole and insert a dowel. Mark the position for the drill hole using a ballpoint pen refill or a nail, for example. Then remove the PC interface from the wall, drill a hole (6mm) and insert a dowel.
-
Page 14: Registering The Pc Interface With The Alarm Base Station
• Keep pressing the ‘ ’ button until the display shown interf. on the right appears on the LCD. clear The alarm base station is now ready to receive the registration of the ‘FAZ 3000-PC-2’ PC interface. - Page 15 • Go to the PC interface and insert four C-type batteries with correct polarity (follow figure in the battery compartment). • The PC interface makes contact with the alarm base station by transmitting a radio signal. The red LED on the circuit board of the PC interface briefly lights up, the alarm base station emits a brief signal tone to confirm receipt.
-
Page 16: Installing The Software
9. Installing the software Place the supplied data carrier into the corresponding drive on your PC and start the programme called ‘Setup.exe’. Follow all instructions. Once the installation is finished, start the programme in the usual way by double clicking. ... -
Page 17: Maintenance And Cleaning
10. Maintenance and cleaning The product requires no servicing except for battery replacement. Any repairs should be carried out by a skilled technician or a professional workshop. Clean the product with a soft, clean, dry and lint-free cloth. To remove heavier dirt, use a cloth which is slightly moistened with lukewarm water. -
Page 18: Information On The Range
12. Information on the range Ranges and interference • The PC interface uses the 868MHz range, which is also used by other radio services. Therefore devices that operate on the same or neighbouring frequencies may restrict both its operation and its range. •... -
Page 19: Technical Specifications
13. Technical specifications Connections: ......1 x socket for power supply (not supplied) 12V=/100mA, inner contact ‘+’ 1 x RS232 connection (9-pin sub-D plug), cable fixed to PC interface Batteries: ........4 x ‘baby’ (C) batteries, alkaline batteries are recommended Battery life: ...... -
Page 20: Brief Instructions
14. Brief instructions a) Registering the PC interface with the alarm base station • Mount the PC interface but do not yet insert the batteries or connect the power supply (if using one) to the supply voltage • Set the alarm base station to PC interface search mode •... -
Page 21: Declaration Of Conformity (Doc)
15. Declaration of conformity (DOC) We, Conrad Electronic, Klaus-Conrad-Straße 1, 92240 Hirschau (Germany), hereby declare that this product complies with the fundamental requirements and other relevant regulations of directive 1999/5/EC. You can find the declaration of conformity for this product at...
