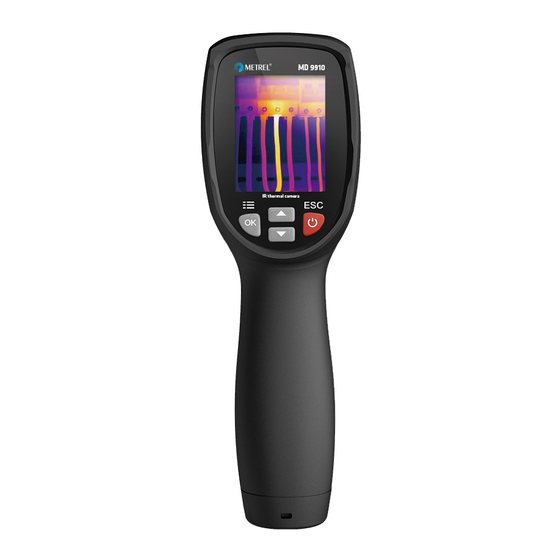

METREL MD 9910
Thermal camera
MD 9910
User manual
Ver. 1.0, code no. 20 752 957

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD 9910 and is the answer not in the manual?

Questions and answers

Related Manuals for METREL MD 9910

Summary of Contents for METREL MD 9910

  • Page 1 METREL MD 9910 Thermal camera MD 9910 User manual Ver. 1.0, code no. 20 752 957...
  • Page 2 Mark on your equipment certifies that this equipment meets the requirements of the EC (European Community) regulations concerning safety and electromagnetic compatibility. No part of this publication may be reproduced or utilized in any form or by any means without permission in writing from METREL...

  • Page 3: Table Of Contents

    METREL MD 9910 Table of contents Table of contents Introduction ....................... 4 Safety ....................... 5 Quick Start Guide ..................... 6 Product Description ..................8 Operation ......................9 Settings Menu ....................12 Image Browser ....................16 Technical specifications .................. 17...

  • Page 4: Introduction

    METREL MD 9910 Introduction 1. Introduction The thermal camera is handheld imaging camera used for predictive maintenance, equipment troubleshooting, and verification. Thermal images are displayed on the LCD and can be saved to internal memories. With Bluetooth instant share function, thermal images can be transferred to smart phone for analyse, share and report quickly.

  • Page 5: Safety

    METREL MD 9910 Safety 2. Safety Terms in this manual WARNING identifies conditions and actions that could result in serious injury or even death to the user. CAUTION identifies conditions and actions that could cause damage or malfunction in the instrument.

  • Page 6: Quick Start Guide

    METREL MD 9910 Quick Start Guide 3. Quick Start Guide First steps The thermal camera is intuitive and easy to use. Here are the first steps (covered in more detail later in this Guide):  Press and hold the Power button for >2 seconds to power ON. The startup screen with logo will appear, followed by the thermal camera display.
  • Page 7 METREL MD 9910 Quick Start Guide The IR thermal Imaging Display 1. Current Emissivity setting 2. Battery indicator 3. Hot temperature point reading 4. Cold temperature point reading 5. Centre crosshair 6. Lowest temperature crosshair 7. Highest temperature crosshair 8. Image freeze/hold icon 9.

  • Page 8: Product Description

    METREL MD 9910 Product Description 4. Product Description Front descriptions: 1. TFT Colour Display 2. MENU-OK button 3. UP-Down arrow buttons 4. Lanyard slot 5. POWER / BACK button Back descriptions: 1. LED flashlight 2. IR Imaging lens 3. Trigger Top descriptions 1.

  • Page 9: Operation

    METREL MD 9910 Operation 5. Operation Switch on the thermal camera Press and hold for > 2 seconds to switch the unit ON. If the unit is sufficiently charged, the meter will display the splash screen as shown below. The initial image be displayed until the shutter resets the image.
  • Page 10 Android. 1. Enable the Bluetooth on the thermal camera. 2. Run Metrel Thermal Image Viewer software and connect unit with smart device. Detailed reference can be found in chapter Bluetooth Connect. 3. Point the unit at an object or an area of interest.
  • Page 11 METREL MD 9910 Operation Review/Delete Images Use the Review Mode to view or delete stored images. 1. To access the Settings Men to review and delete images. 2. Press the ESC button to exit the image review mode 3. To delete all images, please access the Settings Menu as described in Section 6 and reformat the SD card.

  • Page 12: Settings Menu

    METREL MD 9910 Settings Menu 6. Settings Menu Using Settings Menu  Press OK button to open the Settings Menu, as show below.  Press UP / DOWN button to select menu item or change the value of currently focused item.
  • Page 13 METREL MD 9910 Settings Menu Press OK button to set focus on this option. In focus state, use UP /DOWN button to increase or decrease emissivity's value, use ESC or OK button to exit focus state. The available range is 0.01 to 0.99 in 0.01 steps.
  • Page 14 METREL MD 9910 Settings Menu  Memory Figure 12: Memory menu Press OK button to enter photo menu. Two options are available:  Photo Review: Press OK button to enter image browser and exit settings menu.  Delete Photo: Select to erase all the images. A dialog box will be displayed as shown above.
  • Page 15 METREL MD 9910 Settings Menu 2. Turn on the Bluetooth in the smart device, start the “Metrel Thermal Image Viewer” application and enter into the home interface. 3. Press Connect Device icon on the Home interface. Bluetooth device list will appear.

  • Page 16: Image Browser

    METREL MD 9910 Image Browser 7. Image Browser  In Image Browser mode, user can browse the pictures in the 'RECORD' folder of the memory card. Press UP / DOWN button to select previous or next picture. Press any other key to exit Image Browser mode.

  • Page 17: Technical Specifications

    MD 9910 Thermal camera Technical specifications 8. Technical specifications Technical characteristics 21° x 21° Field of view (FOV) Minimum focus 0.5m distance Spatial resolution 4.53mrad (IFOV) < 0.1°C @ +30°C (+86°F) / 100 mK Thermal sensitivity/NETD Image frequency 50Hz Focus...
