Page 1: Quick Start Guide

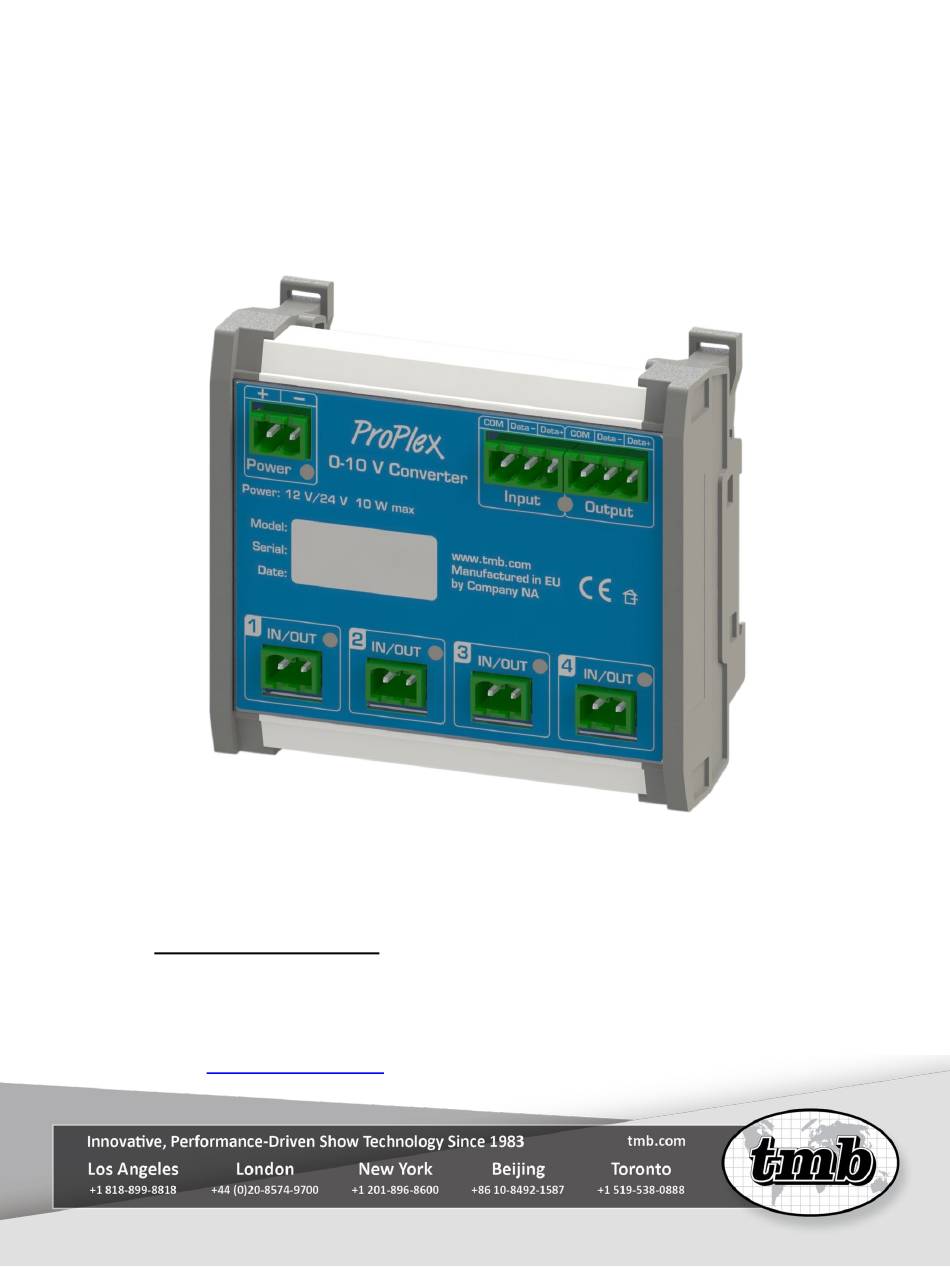

ProPlex 0-10V DMX Converter DIN Rail Quick Start Guide TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 v.1.1 rev 070819 e-mail: techsupport@tmb.com... -
Page 2: Technical Data
Introduction 0-10V DMX Converter DIN Rail Mount converts 0-10V to DMX or DMX to 0-10V. The device has four Input/Output ports and four operational modes: Theatre Out; Ballast Out; Theatre In; Ballast In. Assign DMX channels, link with analog ports, select analog modes via RDM. - Page 3 Dimensions...
- Page 4 Overview Setup Connect the DC power (12/24V) to the power input located in the left top corner. The connector should be wired as follows:...
- Page 5 Connect the DMX signal input to the DMX input located in the right top corner of the unit. The connector should be wired as follows: Connect the DMX signal output to the DMX output located in the right top corner of the unit.
- Page 6 DMX data LED has two states: Glowing red and flashing orange. If there is no DMX signal, the Input LED will glow red. If there is an incoming DMX, the LED will flash green and orange. Input/Output LEDs indicate signal level or fault conditions: Operation Each mode coverts either DMX to 0-10V or 0-10V to DMX control.
- Page 7 • 0-10V Input/Output #1 corresponds with DMX channel 37 • 0-10V Input/Output #2 corresponds with DMX channel 38 • 0-10V Input/Output #3 corresponds with DMX channel 39 • 0-10V Input/Output #4 corresponds with DMX channel 40 Operational Modes • Output Theatre (source 0-10V) o Incoming DMX signal converted to 0-10V current source.
