PACKAGE CONTENTS:

NVR
Power Cable
HDMI Cable
Ethernet Cable
Remote Control
USB Mouse
Quick Start Guides
It's all on the web
Software and complete
instruction manual available on:
l orex.ca/LNR40 0
Information in this document is subject to change
without notice. As our products are subject to continuous
improvement, Lorex Corporation and our subsidiaries
reserve the right to modify product design, specifications and
prices, without notice and without incurring any obligation.
E&OE © 2014 Lorex Corporation. All rights reserved.
Quick Connection Guide

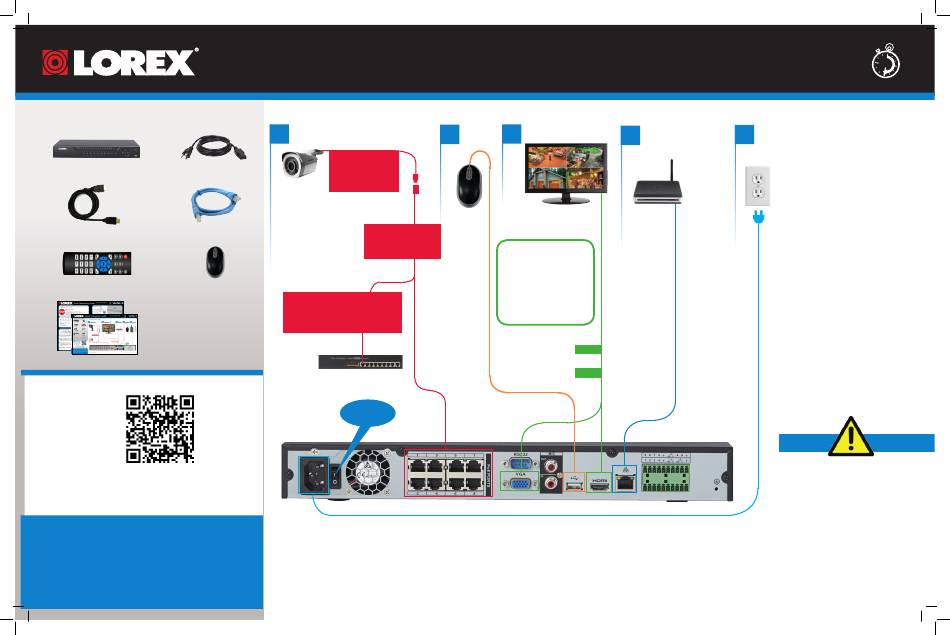

Connecting your system

1
IP Cameras*
Ethernet Extension Cable*
NOTE: It may take up to
1 minute for cameras
to start up and transmit
video to your NVR.
Recommended:
Connect cameras
to NVR
OR
Connect cameras to a PoE Switch*
or Router* on your network. See
reverse for more details.
6: ON
*Not included/sold separately.
HD Network Video Surveillance Recorder
2
3
Mouse
Monitor/TV*
!
For best performance it
is recommended to use
a 1080P monitor/TV
and set the NVR's output
resolution to 1920x1080.
See the instruction manual
for details.
HDMI
OR
VGA*
LNR400 Series
5
4
Power
Router*
This system features automatic firmware upgrades
for enhanced functionality. It is required
to upgrade your system to the latest
firmware version.
If a firmware upgrade is available:
1. After startup, a notification will appear
asking you to upgrade the firmware. Click OK
to upgrade.
2. The system will download and install the
firmware upgrade. Wait for the firmware update
to complete. The system may restart during the
firmware upgrade process.
DO NOT power off or disconnect
the power cable during firmware
installation.
30 Minutes
