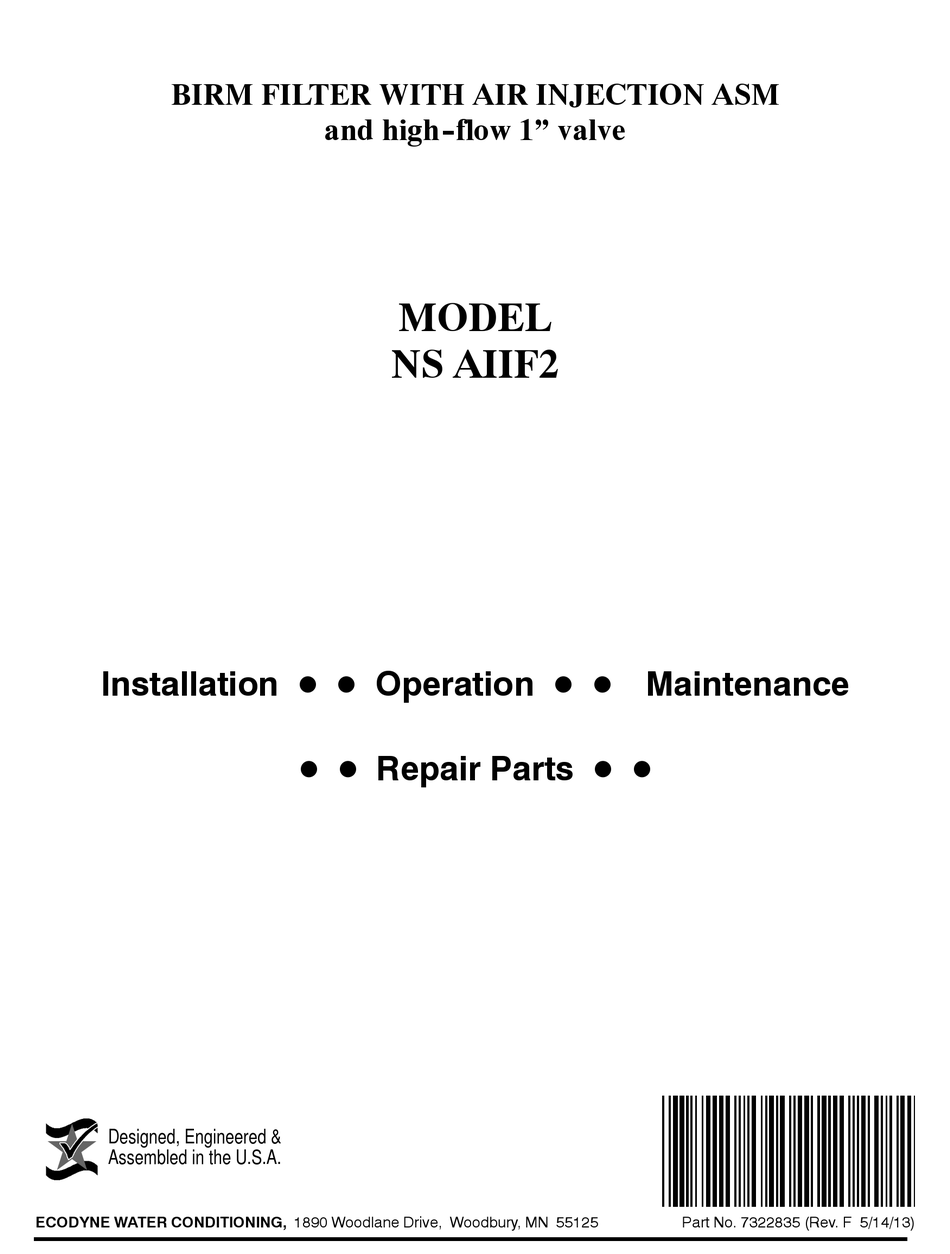

- Page 1 BIRM FILTER WITH AIR INJECTION ASM and high- -flow 1” valve MODEL NS AIIF2 Installation D D Operation D D Maintenance D D Repair Parts D D Designed, Engineered & Assembled in the U.S.A. ECODYNE WATER CONDITIONING, 1890 Woodlane Drive, Woodbury, MN 55125...
- Page 2 WATER FILTER WARRANTY Warrantor: North Star Water Conditioning, 1890 Woodlane Drive, Woodbury, MN, 55125 Warrantor guarantees, to the original owner, that: One Year Full Warranty: For a period of one (1) year from the date of purchase, all parts will be free of defects in materials and workmanship, and will perform their normal functions.
-
Page 3: Table Of Contents
UNPACKING The Air Injected Iron Filters are shipped from the fac- Thoroughly check the filter for possible shipping tory with the following: damage and parts loss. Also inspect and note any damage to the shipping carton. Notify the trans- --- Filter assembly, packed with quartz and birm z portation company if damage is present. -
Page 4: Air Pump
SPECIFICATIONS / DIMENSIONS Filter Type ....Oxidizing Some feed water with high iron concentrations, or low pH Type of Mineral ... . . Birm may require limited service flows or a neutralizer filter be- Amount of Mineral... -
Page 5: Typical Finished Installation
FIGURE 1 TYPICAL FINISHED INSTALLATION FILTERED WATER CROSS - - OVER 120 Volt Use if water supply flows from the left. Outlet WATER IN Include single or 3 - - valve bypass. UNFILTERED FILTERED WATER Transformer WATER FROM TO FILTER VENT TUBE, 20 ft. -
Page 6: Other Requirments
" INLET - - OUTLET PLUMBING OPTIONS ALWAYS INSTALL either a single bypass valve, #7214383, or a 3 valve bypass system. Use 1”... or, 3/4” (minimum) pipe and fittings. Use sweat copper... or, threaded pipe*... or, PVC plastic pipe.* *Sweat soldering is required to adapt to the fittings (1” male) supplied with the filter, or obtain approved com- pression adaptors. -
Page 7: Installation Steps
OUTSIDE FIGURE 3 FAUCETS COLD Chemical Pressure Feed System tank Water Taste & Water Air Injected Water Sediment Blending Heater Odor Softener Iron Filter Neutralizer Filter Tank Filter Filter Well Pump INSTALLATION STEPS IMPORTANT SANITIZING PROCEDURES Care is taken at the factory to keep your water filter clean and sanitary. Materials used to make the filter will not infect or contaminate your water supply, and will not cause bacteria to grow. - Page 8 FIGURE 4 FIGURE 5 1” installation adaptor (2) o--ring seal (4) turbine & support turbine & clip (2) support 1” installation adaptor (2) clip (4) o--ring seal (2) single bypass valve VALVE VALVE INLET INLET . INSTALLING 3---VALVE BYPASS If installing a 3---valve bypass system, plumb as needed. If installing sweat copper, be sure to USE LEAD--- FREE SOLDER as required by Federal and State codes.
- Page 9 FIGURE 6 FIGURE 7 3 - - Valve Bypass single Bypass Valve INLET OUTLET BYPASS VALVE VALVE VALVE PULL OUT ground for service clamp from conditioner to conditioner D for SERVICE: ground wire - - Open the inlet and outlet valves. - - Close the bypass valve.
- Page 10 FIGURE 8 BACK OF TIMER 24VAC 24VAC MOTOR TO 120V OUTLET TRANSFORMER POSITION SWITCH 1 POSITION CONNECT SWITCH 2 TO AIR PUMP TURBINE SENSOR TO 120V OUTLET SOLENOID RELAY BOX . CONNECT ALL LEADWIRES Locate the power cable, which is shipped with one end plugged into the timer (PWA) under the top cover. Refer to Figure 8.
-
Page 11: Programming The Faceplate Timer
PROGRAMMING THE FACEPLATE TIMER FIGURE 9 UP button display DOWN button SELECT button TOUCH--HOLD button " TIMER SETTINGS REQUIRED, upon installation, and after an extended power outage, see Power Outage Memory, page 14. When the transformer is plugged into the electrical outlet, the model code and a test number (example: J1.1), begins to flash in the faceplate display. - Page 12 PROGRAMMING THE FACEPLATE TIMER SUGGESTED RECHARGE DAYS The filter must recharge to clean iron out of the filtering mineral. How often recharge is needed depends on two things. 1. The parts per million (PPM) of iron in your water supply and; 2.
- Page 13 START UP CHECKLIST After completing the preceding installation and programming steps, check all the fol- lowing: Make sure the bypass valve(s) are in the “service” postion. Check for leaks. Open a filtered water faucet and confirm that the air pump runs. Pump will run for 8 seconds after water flow has stoped.
-
Page 14: Faceplate Timer Features, Settings And Service
FACEPLATE TIMER FEATURES, SETTINGS AND SERVICE NORMAL OPERATION, TIMER DISPLAYS ......... During normal operation, the to flash in the display, along present time of day, and AM or... -
Page 15: General Information
FACEPLATE TIMER FEATURES, SETTINGS AND SERVICE service: RECHARGE CYCLE TIME ADJUSTMENTS ........The default settings for backwash (25 minutes) and fast rinse (5 minutes) cycles of recharge are factory set for maximum performance of the filter. - Page 16 WATER FLOW PATHS THROUGH VALVE FIGURE 11 SERVICE CYCLE FIGURE 12 FLOW PLUG BACKWASH CYCLE FIGURE 13 FAST RINSE CYCLE...
-
Page 17: Troubleshooting
Description of Operation - - Air pump activation & solenoid venting system When service water flows through the filter, it rotates the turbine (located in the valve’s outlet port), sending a signal to the controller (PWA). The controller then activates a 24V power supply to the vent solenoid and relay box. -
Page 18: Manual Advance Diagnostics
MANUAL ADVANCE DIAGNOSTICS " Use the following procedures to advance the filter valve through the recharge cycles to check operation. Remove top cover to observe valve rotation. NOTE: Display must show time and day. 1. Press and hold the Select button until the display shows “000--- ---”. position markers (valve in... -
Page 19: Other Service
service: MANUAL INITIATED ELECTRONICS DIAGNOSTIC ......1. Press and hold the Select Press the Up button to display button until the display shows the number of days this face “000--- ---”... -
Page 20: Repair Parts
REPAIR PARTS Valve Assembly (see pages 22 & 23) WARNING: FILTER TANK CONTAINS AIR. TO RELIEVE PRES- SURE, PUT BYPASS VALVE IN BYPASS AND ADVANCE FILTER VALVE TO BACKWASH BEFORE DISASSEMBLY. - Page 21 REPAIR PARTS PART PART DESCRIPTION DESCRIPTION 7085297 Transformer, 24V --- 40VA Distributor O---ring Kit 7112963 (includes Key Nos. 14---16) 7132840 Power Cord O---ring, 13/16 I.D. x 1---1/16 O.D. 7322801 Wire Harness, Solenoid O---ring, 2---7/8 I.D. x 3---1/4 O.D. 7260554 Top Cover (order following decal) O---ring, 2---3/4 I.D.
- Page 22 REPAIR PARTS flow plug assembly assembled view wear--- strip seal cross--- section view...
- Page 23 REPAIR PARTS PART PART DESCRIPTION DESCRIPTION 7224087 Screw, #6-20 x 7/8 (2 req.) 7271204 Installation Adaptor, 1” (2 req.) 7286039 Motor (incl. 2 ea. of Key No. 50) 7311127 O---ring, 1---1/16 x 1---5/16 (4 req.) 0900857 Screw, #6-20 x 3/8 (3 req.) Turbine &...
- Page 24 ECODYNE WATER CONDITIONING, 1890 Woodlane Drive, Woodbury, MN 55125...
