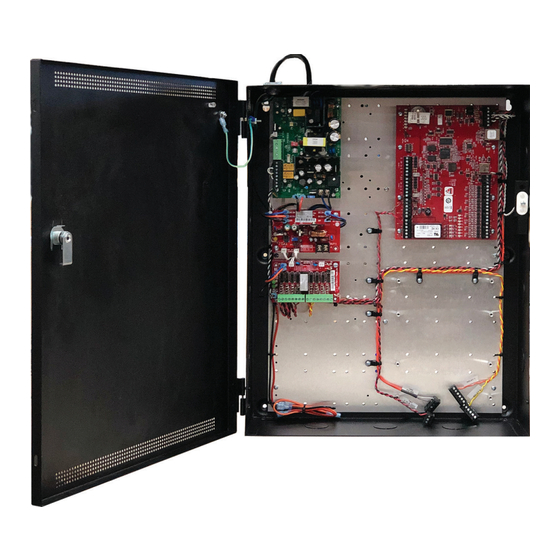

Summary of Contents for Alarm ADC-ACC1-17
- Page 1 Smarter Access Control Quick Start Guide...
- Page 2 Pre-installation checklist Ensure your customer has an Alarm.com account with a service plan that supports Access Control. Mount and wire all system hardware according to manufacturer’s installation instructions. One or more controllers ADC-ACC1-17 Door Controller ADC-ACC2-34 Two Door Controller ADC-ACX1 and ADC-ACX2 expansion modules (optional)
- Page 3 Basic configuration Expanded configuration - ADC-ACC1-17* Control 1 supervised and 1 unsupervised reader with Add up to 8 expansion modules to the ADC-ACC1-17 to the ADC-ACC1-17 Door Controller. control up to 17 readers. Control 2 supervised readers with the ADC-ACC2-34 ❶...
- Page 4 Add hardware to Alarm.com account Expanded configuration - ADC-ACC2-34* Controllers Add up to 16 expansion modules to the ADC-ACC2-34 to 1. Disconnect any Ethernet cables from all controllers control up to 34 readers. in the system. ❶ ADC-ACC2-34 2. Navigate to the Access Control tab on the ❷...
- Page 5 14. Repeat steps 12 and 13 for all card formats you plan to use with this system and click “Save.” To add or manage Users, Access Plans, and Timetables, navigate to the User Access tab on the Customer Website or Mobile App. Questions? Visit alarm.com/supportcenter...
- Page 7 8281 Greensboro Drive 190314 Suite 100 © 2019 Alarm.com. All rights reserved. Tysons, VA 22102 Made in China.
