Spring Reverb Mk ii
(November 2017 onwards)

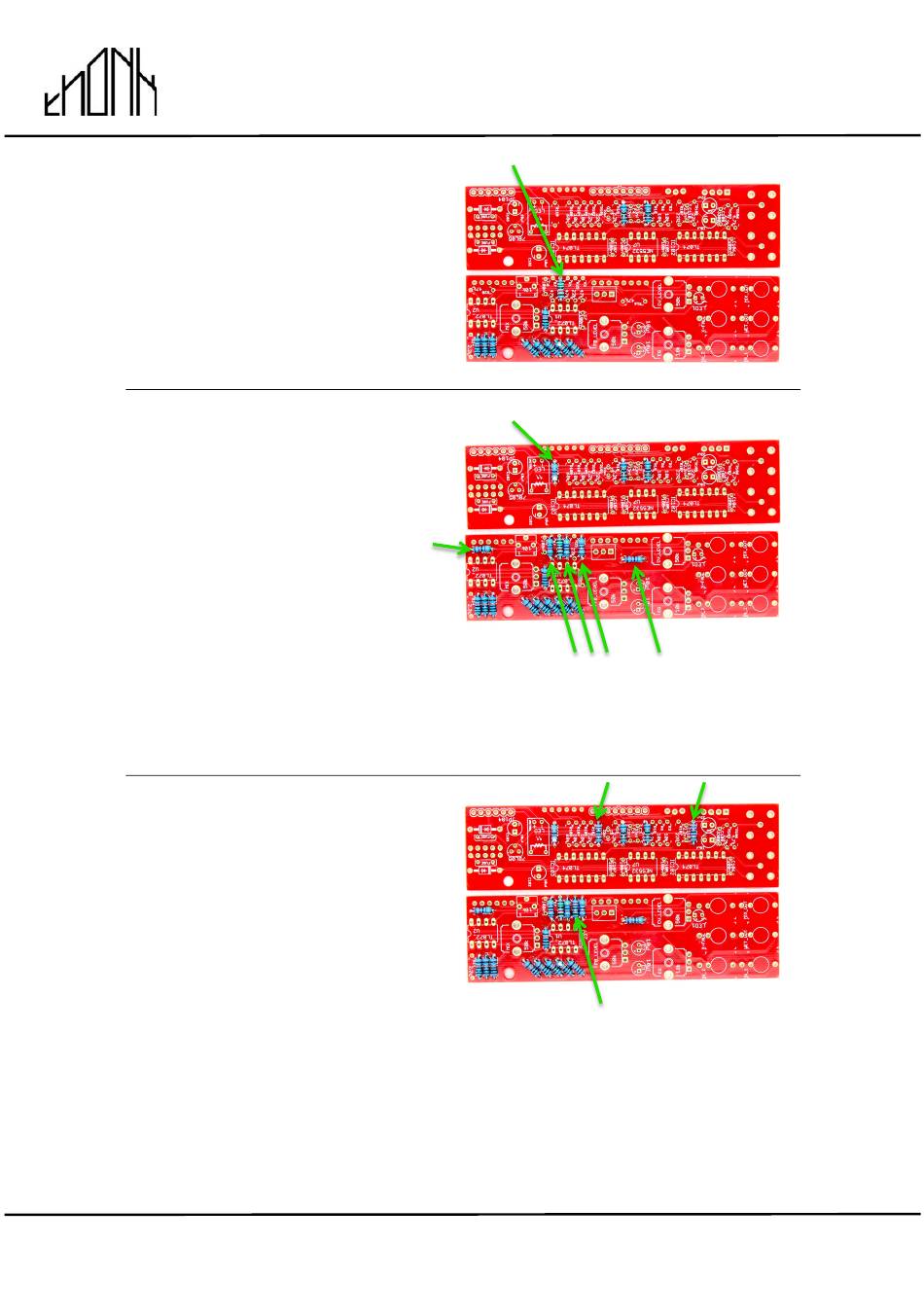

5.
Finally in that resistor bag you will
have a single 15k resistor left,
solder it into position R26 shown on
the FRONT PCB
6.
Next identify the resistor bag
containing the six 47K resistors and
solder into the positions shown on
BOTH PCBs
R1, R2, R7, R16, R20, R110
NOTE! The resistance value for
R110 is not labeled as the value
depends on the type of Vactrol
used, for Thonk kits or when using a
VTL5C3 vactrol this should be a
47K resistor.
7.
In the same bag you'll also find
three 22K resistors, solder them
into the positions R25, R101 and
R109
shown on the BOTH PCBs
