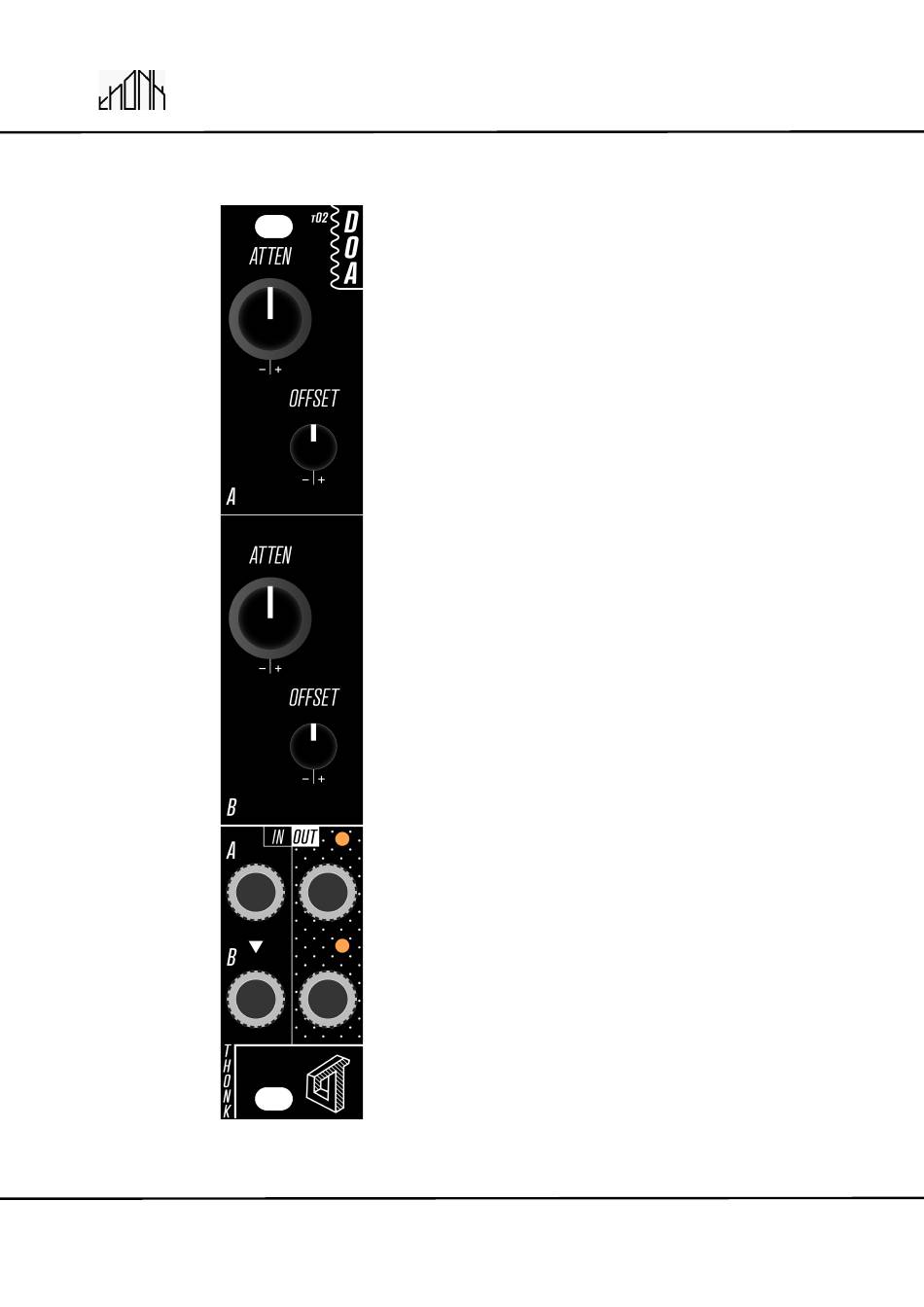

- Page 1 THONK SYNTH Eurorack DIY Kit Version 1.2 02 DOA Instructions THONK SYNTH DUAL OFFSET ATTENUVERTER Eurorack DIY Kit Build Instructions October 14 2024 www.thonk.co.uk...
-
Page 2: Tools Required
For the most recent version of this document please visit https://www.thonk.co.uk/shop/thonk-synth-t02-doa-kit/ This document should be used in conjunction with the relevant user manual. All Thonk kits are sold under our standard Terms and Conditions - http://www.thonk.co.uk/faq/ DIY INSTRUCTIONS This document gives detailed instructions that assume you have purchased a complete kit from www.thonk.co.uk. -
Page 3: Solder Joints
THONK SYNTH Eurorack DIY Kit Version 1.2 02 DOA Instructions SOLDER JOINTS Your solder joints should look like those shown as ‘OK’ below, they should have that neat conical shape on BOTH sides of the PCB. If they don’t look the same on both sides then stop! Work out why from the soldering guides linked and don’t continue until you are getting those results. -
Page 4: Build Instructions
THONK SYNTH Eurorack DIY Kit Version 1.2 02 DOA Instructions BUILD INSTRUCTIONS First take the PCB and solder the 2x5 power header to the rear of the board (the side without the SMD components). Check that this is soldered flush to... - Page 5 THONK SYNTH Eurorack DIY Kit Version 1.2 02 DOA Instructions Place the two clear bi colour LED’s. CHECK ORIENTATION – these components are polarized and must be placed as pictured with the long leg inserted into the pad marked with ‘+’.
- Page 6 THONK SYNTH Eurorack DIY Kit Version 1.2 02 DOA Instructions Place the panel and secure the pots and jacks with the remaining nuts, tighten firmly to hold all components in place but don’t overtighten. Use masking tape or similar placed...
- Page 7 THONK SYNTH Eurorack DIY Kit Version 1.2 02 DOA Instructions For the next step find the knob and knob cap which come as separate pieces. First place the knob onto the pot, with the pot turned fully counter clockwise. This is your ‘zero’ point for the knob.
- Page 8 THONK SYNTH Eurorack DIY Kit Version 1.2 02 DOA Instructions The module is now complete – follow the user manual and the link to the Thonk website for general module info. https://www.thonk.co.uk/shop/thon k-synth-t02-doa-kit/ October 14 2024 www.thonk.co.uk...
