Kinman Hx Quick Start Manual

Pickups

Advertisement

Changing covers on Kinman Hx pickups.
1) It is important to remove the cover correctly so as to avoid damaging the
pickup.
2) Insert two mounting screws into the screw holes from the back of the pickup
so they only protrude into the cover ears slightly.
3) Grab the screws between thumb and forefinger to secure the pickup.
4) Grab the cover between thumb and forefinger and gently and carefully wriggle
the cover away from the pickup.

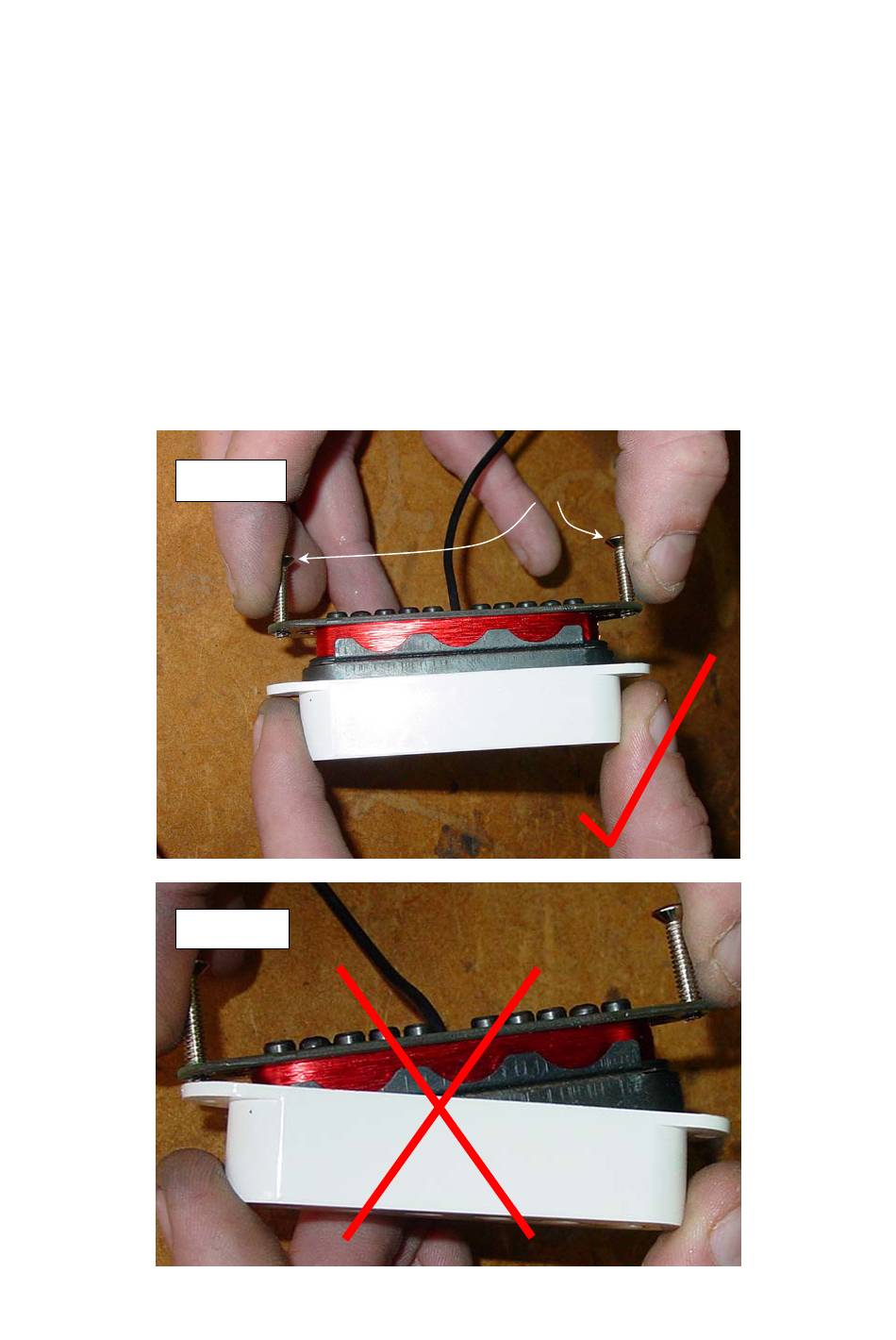

5) IMPORTANT: Keep the cover parallel to the pickup as in photo 1, do not let
it *Skew* as in photo 2. Skewing is the major cause of damage to pickups.
Photo #1
Photo #2
1-Sep-04
1 of 2 pages.
2 mount screws
inserted from back.
Do not Skew the
cover!!
