3. CHARGING A VEHICLE

3.1 Starting the Charge

1) Ensure that the EO Mini Pro is powered and that the Status
LED is pulsing blue.
2) Insert the cable into the
vehicle first.
3) Insert the other end of
the cable into the EO
Mini Pro.
4) The vehicle should start
to charge immediately
or will charge at the
scheduled time.
5) Set the charging station
configuration options
using the app or
dashboard –
see figure 1.
When a vehicle is
plugged into the EO Mini
Pro, then the following
summary screen is
available.

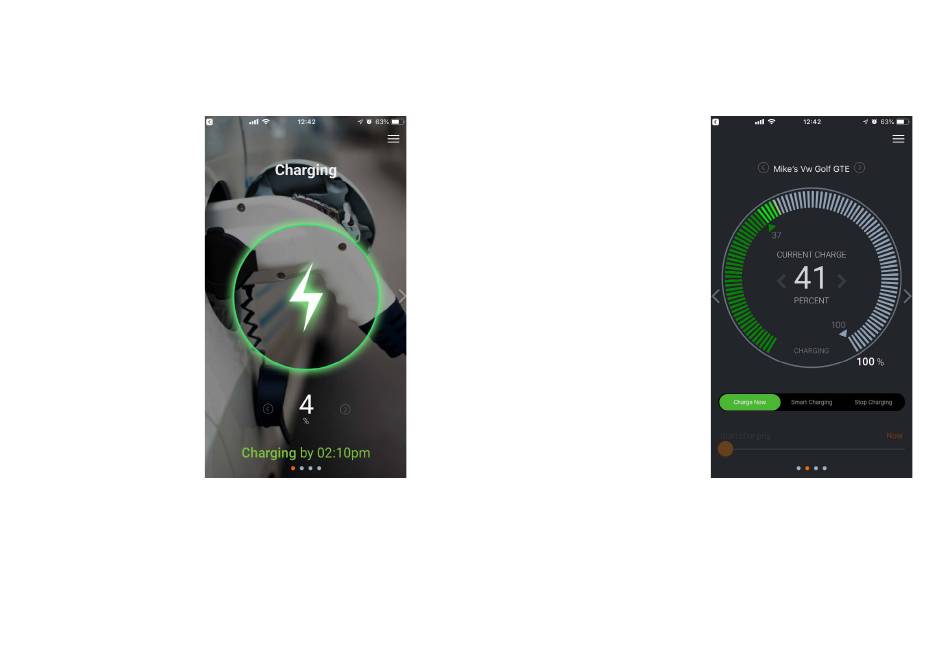

Figure 1 - Summary screen on the App
EO Mini Pro Installation Guide I April 2019
There are various options available:
Current State of Charge
a. This is set by the user when the charging
session has started. It is represented by the
Green inner triangle at 51% in Figure 2.
b. In order to set the current state of charge,
the user must move the green inner
triangle to the current state of charge of
the battery of the EV when the vehicle
is plugged in. This will allow the app to
calculate how much energy and time is
required to charge up the vehicle
Charge Now
a. Press this button to start charging
immediately. This will override any
Smart Charging functionality currently
programmed
Smart Charging
a. The user allows the EO Mini Pro to
determine when to start charging. This
will charge the car according to the
Time Of Use or the minimum charge
functionality.
Stop Charging
a. Press this button to stop the charging
session immediately (this will tell the car
that no power is available).

Minimum Charge

a. The Orange line indicates the minimum level of charge that has been defined
in the settings of the app.

3.2 Stopping the Charge

1) Stop the charging session from the vehicle e.g. unlock the vehicle
2) Remove the cable from the vehicle first
3) Remove the cable from the EO Mini Pro
If the user swipes right then the
Charging Screen is available.
Figure 2 - The charging details
4
