5. External Interfaces continued
CELL LED:
LED STATUS
Green
Red
* When the CELLULAR LED stays red (not registered) for more than a few minutes after powering the POTSwap, it is usually an indication of a poor
antenna connection or a problem with the activation on the cellular network. Check that the SIM card is properly installed and that it has valid
activation with a cellular carrier.
GPS LED:
LED STATUS
Green
Red

PUSH BUTTONS

Two push buttons are provided on the front panel of the POTSwap. These can be operated with a small diameter
object such as a paperclip. There is tactile feedback that indicates when the push button has been operated.
Applying pressure to the push buttons beyond the point at which they actuate can damage the switch.
The RESET push button performs the same function as powering the unit off and then on; the configuration
parameters are not affected.

PUSH BUTTON FUNCTIONS

PUSH BUTTON
MODE
RESET
PHONE – FXS Connector:
A standard RJ11 jack (6P2C – 6 position 2 conductor) supports the landline telephone interface.
This jack simulates what would be provided by a land-line based telephone central office, including power, ringing
signal and voice transport.
Any standard telephone device can be connected to this connector.
Under no circumstances should the PHONE – FXS connector be connected to
another powered telephone line – e.g. a telephone wall jack or PBX line.
CELLULAR RADIO
Registered home or roaming
Not Registered
Indication
GPS has location fix
No GPS location fix
FUNCTION
Future Use
System Restart

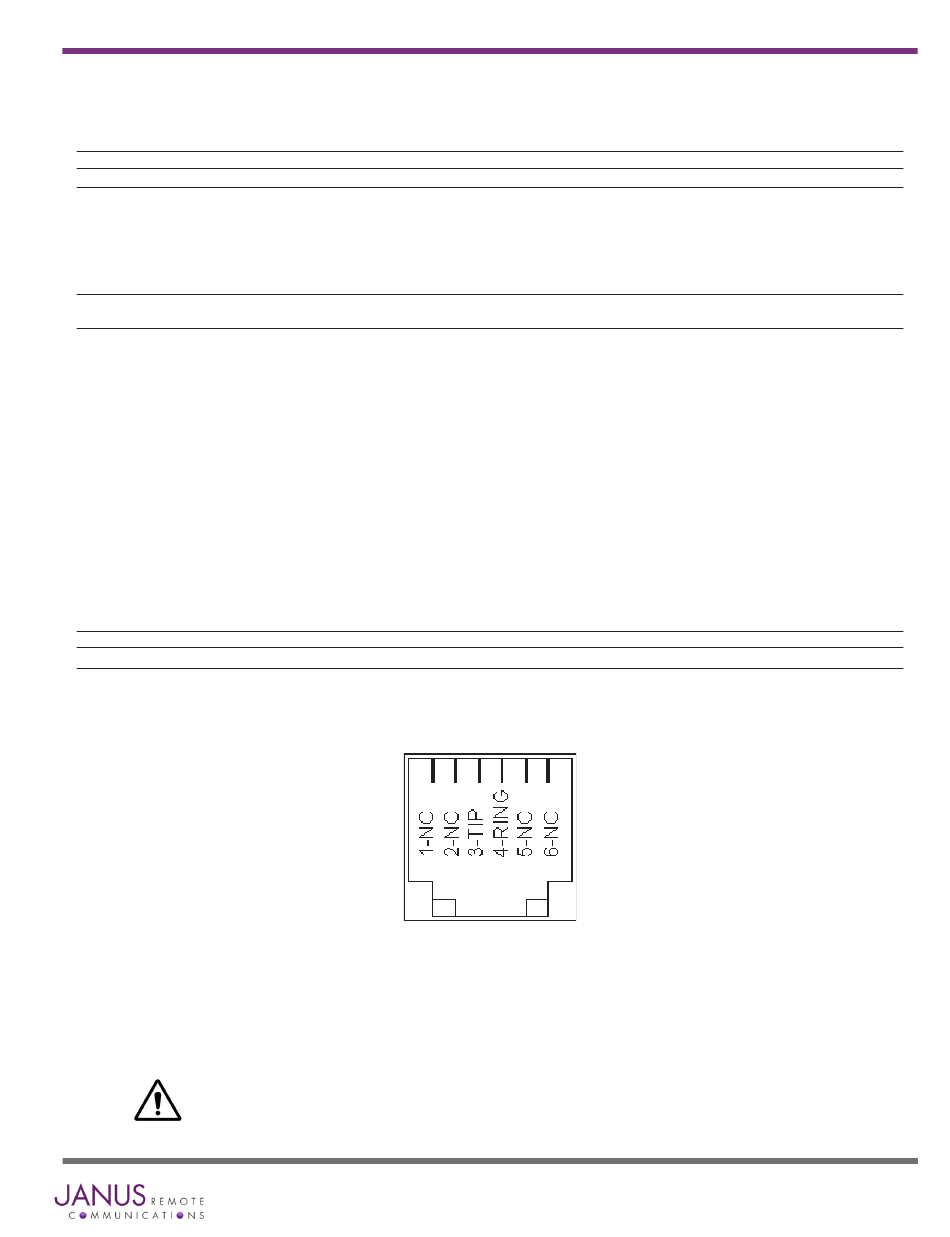

Figure 5 RJ11 Jack
