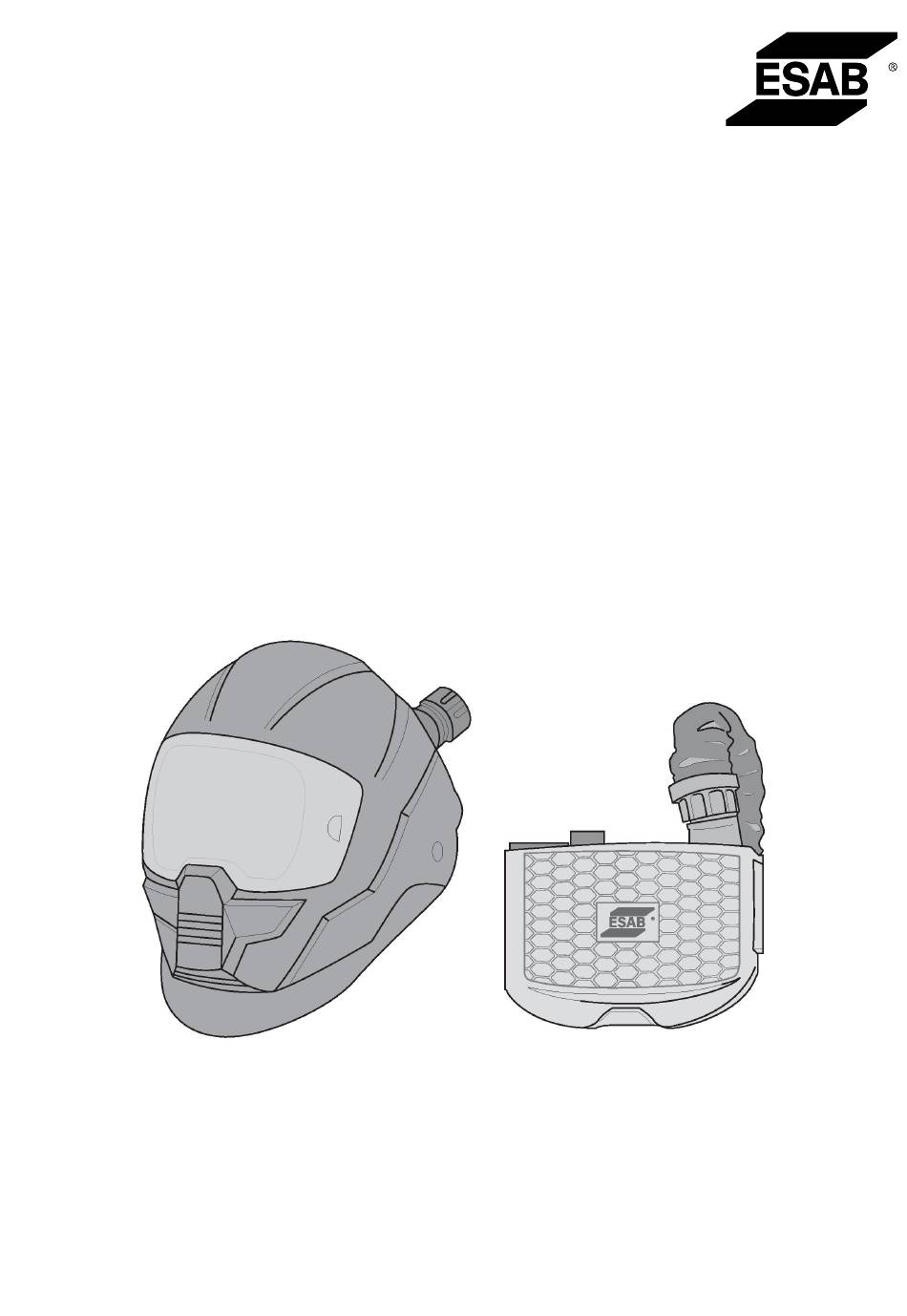

- Page 1 ESAB PAPR System Respiratory protective device Instruction manual ESAB PAPR System GB 20180614...
- Page 2 ESAB AB Lindholmsallén 9 Box 8004 402 77 Gothenburg Sweden Phone +46 (0) 31 50 90 00 www.esab.com...
-
Page 3: Table Of Contents
Storage and transportation ..............TROUBLESHOOTING ................. CERTIFIED HELMETS ..................18 ORDERING SPARE PARTS ................19 ORDERING NUMBERS AND SPARE PARTS LIST ........... 20 ESAB PAPR System ....................Sentinel A50 Air ......................Warrior Tech Air......................F20 and F20 Air......................G30 and G30 Air ...................... -
Page 4: Safety
• Do not use the charger if it is visibly damaged. Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. ESAB PAPR System - 5 -...
-
Page 6: Introduction

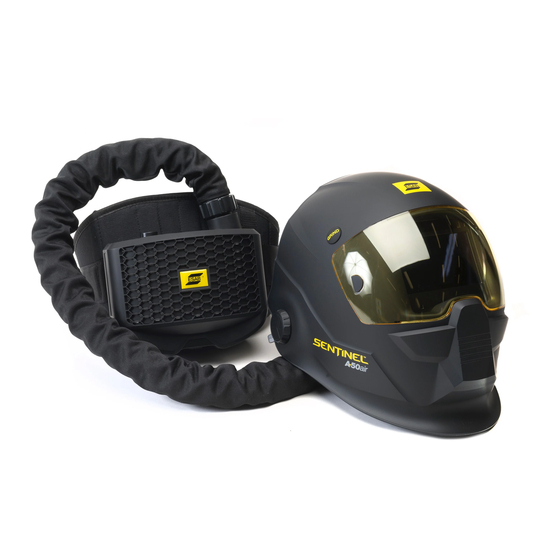

Overview The ESAB PAPR System is a respiratory protective system that circulates over-pressured air in the hood. The belt-mounted blower unit delivers air through a filter and via an air hose into the headpiece. The supply of filtered air creates positive pressure inside of the headpiece, which prevents the external contaminated air from entering the breathing zone. - Page 7 Airflow into the head unit decreases or stops. • Contaminant can be smelt or tasted inside the head unit. • In the unlikely event of an allergic reaction to the material of the headpiece. ESAB PAPR System - 7 - © ESAB AB 2018...
-
Page 8: Technical Data
3 TECHNICAL DATA TECHNICAL DATA System overview The ESAB PAPR System is a belt mounted powered respirator with a replaceable, disposable high efficiency particle filter. The system is certified with the helmets covered in the “Certified helmets” section. The unit has a removable and rechargeable Lithium-ion battery. Battery life varies depending on the air quality and particle concentration of the work area. -
Page 9: Warranty
ESAB provides warranty on defects of material and workmanship according to legal requirements. Consumables are exempt from this warranty. ESAB provides warranty on the ESAB Blower unit for a period of 12 months from the date of purchase against mechanical or electrical defects. -
Page 10: Operation
Make sure that the battery is the indicated way up. Make sure that the battery is snapped into position. 4.1.1 Belt adjustment Fasten the belt using the adjusters to achieve a comfortable and secure fit. Secure any excess belt. ESAB PAPR System - 10 - © ESAB AB 2018... -
Page 11: Particle Filter
Loosen Tighten 4.1.2 Particle filter Use only particle filters supplied by ESAB. WARNING! Using any other filter voids the warranty and/or poses a serious risk to the health of the operator. Make sure to use correct kind of filter to acheive suitable protection from the hazard. The respiratory power unit is equipped with a high efficiency particle filter of class P R SL. -
Page 12: Inserting A New Filter
Pull the elasticated chin guard downwards and at the same time pull the helmet down. Ensure the elasticated chin guard fits comfortably under the chin. The welding helmet is now ready for use. ESAB PAPR System - 12 - © ESAB AB 2018... -
Page 13: Usage
Alarm test Block the air outlet with the palm of a hand or other suitable means. The motor will try to compensate by increasing the speed until the alarm sounds. ESAB PAPR System - 13 - © ESAB AB 2018... -
Page 14: Air Flow Test
4.3.3 Batteries WARNING! Use only ESAB original battery charger delivered with the product. Using any other battery charger voids the warranty and poses a serious risk of fire or explosion to the health of the operator. NOTE! Batteries are delivered partially charged. All batteries must be fully charged before first use. -
Page 15: Replacing The Battery
Make sure the battery is facing the correct direction, see "Assembly" section. Slide it into the blower until the battery catch engages. Make sure that the battery catch is fully locked. ESAB PAPR System - 15 - © ESAB AB 2018... -
Page 16: Maintenance
Store or transport the blower and head units in the container in which they were provided, or in similar container. Protect it from direct sunlight, solvents and physical damage. Store between 0-40 °C and below 75% RH. ESAB PAPR System - 16 - © ESAB AB 2018... -
Page 17: Troubleshooting
Battery cannot be charged. Battery contact is damaged. Check the battery contact. Charger is faulty. Contact supplier. Battery cannot be charged Battery is worn out. Install a new battery. sufficiently. ESAB PAPR System - 17 - © ESAB AB 2018... -
Page 18: Certified Helmets
CERTIFIED HELMETS CERTIFIED HELMETS Helmets certified together with the PAPR system: SENTINEL A50™ Warrior™ Tech ESAB PAPR System - 18 - © ESAB AB 2018... -
Page 19: Ordering Spare Parts
SL device offering an Assigned Protection Factor of 20 / 50 according to BS4275. Certified by APAVE SUDEUROPE SAS Notified Body 0082. The ESAB PAPR System can provide this level of protection when used with filters provided by the manufacturer marked ESAB and EN12941:1998 TH2/3P R SL. -
Page 20: Ordering Numbers And Spare Parts List
ORDERING NUMBERS AND SPARE PARTS LIST ORDERING NUMBERS AND SPARE PARTS LIST ESAB PAPR System Item Ordering no. Denomination Notes 0700 002 303 Proban hose cover 1000 mm 0700 002 304 Proban hose cover 850 mm 0700 002 305 Air hose standard... -
Page 21: Sentinel A50 Air
Warrior Tech Air Item Ordering no. Denomination Notes 0700 000 010 Front lens 0700 000 419 Warrior lens retainer 0700 000 420 Headgear and airduct 0700 000 421 Warrior face seal ESAB PAPR System - 21 - © ESAB AB 2018... -
Page 22: F20 And F20 Air
60 × 110 mm 0700 000 415 Headgear 0700 000 414 Sweatband 0700 000 522 Head and face seal 0700 000 420 Headgear including airduct 0700 000 274 Sweatband for air ESAB PAPR System - 22 - © ESAB AB 2018... -
Page 23: G30 And G30 Air
0700 000 507 Outer flip visor G30 DIN 10 0700 000 420 Headgear including air duct 0700 000 512 Head and face seal G30, G40 and G50 0700 000 274 Sweatband for air ESAB PAPR System - 23 - © ESAB AB 2018... -
Page 24: G40, G50, G40 Air And G50 Air
G40 60 × 110 mm and 90 × 110 mm 0700 000 415 Headgear 0700 000 420 Headgear including air duct 0700 000 951 Head and face seal G30, G40 and G50 0700 000 274 Sweatband for air ESAB PAPR System - 24 - © ESAB AB 2018... - Page 25 ORDERING NUMBERS AND SPARE PARTS LIST ESAB PAPR System - 25 - © ESAB AB 2018...
- Page 26 For contact information visit esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 http://manuals.esab.com...
