- Page 1 Universal valve 1-function Montageanleitung Instruzioni di montaggio Installation Instructions Montage-instructie Instrucciones de montaje Instrukcja montażu 装配说明 Instructions de montage VILLEROY-B OCH.COM...

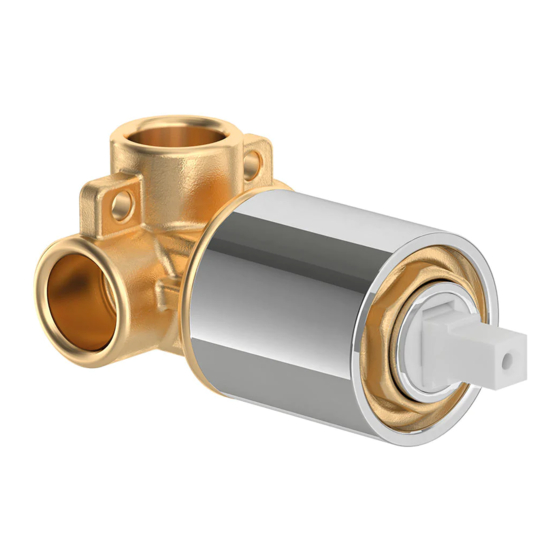

- Page 2 TVS00036150061 Universal valve 1-function www.villeroy-boch.com // V 1.0 // 19.05.2017 //...
- Page 3 Notes prior to installation Inspect all parts prior to installation for suitability and/or defects. Any suspected defect should be reported as soon as possible. Should any product be installed despite a fault having been found and reported, Argent will not accept liability for the cost of labour to remove and install any replacement product/s.
- Page 4 Based on the size of the body and the wall type, either secure it to the noggins or embed it into the wall at an approximate height of 1100 mm. Installation depth of body max. 67 mm, min. 47 mm. Ensure that body is installed level, plump and square.
- Page 5 Either sheet around the mixer body with fibre cement sheeting or backfill the exposed channels ready for tiling. Ensure tiles are cut as close to the plastic template covering the mixer dome as possible: remove the plastic template after the tiling is complete.
- Page 6 www.villeroy-boch.com // V 1.0 // 19.05.2017 //...
