Summary of Contents for CAE Healthcare LUCINA AR

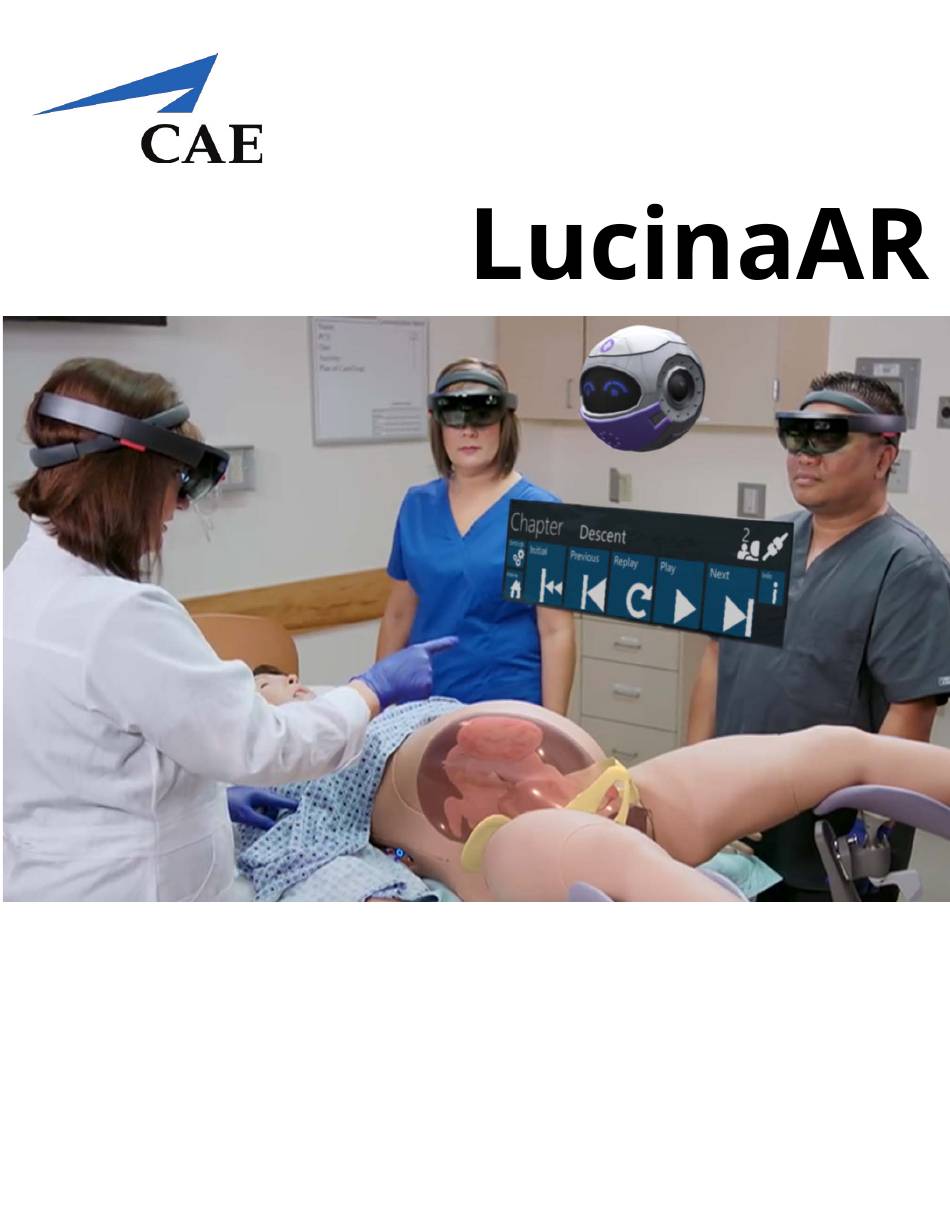

  • Page 1 ©2019 CAE 905K472052 v2.1...
  • Page 2 ©2019 CAE 905K472052 v2.1...
  • Page 3 Licensing ICENSING The maximum number of clients that can connect to the host varies depending on the license associated with your account. You can purchase a new license or upgrade your current license by contacting CAE. The refresh button, beside the version number, allows you to refresh your license after a new license has been purchased and associated with your account.
  • Page 4 CAELucinaAR Licensing ©2019 CAE 905K472052 v2.1...

  • Page 5: Safety And Warnings

    Safety and Warnings AFETY AND ARNINGS AC Adapter Safety Failure to take the following precautions can result in serious injury or death from electric shock or fire or in damage to the device. To select an appropriate power source for your HoloLens: •...
  • Page 6 CAELucinaAR Safety and Warnings To reduce heat related concerns, follow these guidelines: • Allow for adequate air circulation under and around the device • Use caution when operating your device with a pillow, blanket, hat or other soft material contacting the device, because the material can block the airflow which may result in the device overheating •...

  • Page 7: Skin Irritation

    Safety and Warnings The risk of photosensitive epileptic seizures may be reduced by taking the following precautions: • Using HoloLens in a well-lit room • Do not use HoloLens when you are drowsy or fatigued • If you or any of your relatives have a history of seizures or epilepsy, consult a doctor before using HoloLens Skin Irritation The HoloLens is made of materials commonly used in wearable consumer electronic devices.
  • Page 8 CAELucinaAR Safety and Warnings ©2019 CAE 905K472052 v2.1...

  • Page 9: Table Of Contents

    Table of Contents ABLE OF ONTENTS Licensing ........................i Safety and Warnings....................iii AC Adapter Safety ............iii Battery Safety .

  • Page 10: Table Of Contents

    Update Lucina AR ........

  • Page 11: Helpful Links

    Helpful Links ELPFUL INKS • Fitting your HoloLens: https://support.microsoft.com/en-us/help/12632 • Turning your HoloLens on or off: https://support.microsoft.com/en-us/help/12642 • HoloLens lights: https://support.microsoft.com/en-us/help/28982 • HoloLens buttons: https://support.microsoft.com/en-us/instantanswers/6ff53cab-1ec8- 087e-3a7e-554d18ae639c/find-out-what-the-hololens-buttons-do • Using gestures: https://support.microsoft.com/en-us/help/12644 • Start menu and finding your apps: https://support.microsoft.com/en-us/help/12638 • Spaces on HoloLens: https://support.microsoft.com/en-us/help/13760/hololens-spaces- on-hololens •...

  • Page 12: Before Beginning Setup

    CAELucinaAR Before Beginning Setup EFORE EGINNING ETUP Prior to beginning setup, it is important to understand some basic concepts and environmental considerations to ensure a safe and productive learning experience. Using Hand Gestures The Microsoft HoloLens has several hand gestures that users should become familiar with to properly operate the device.

  • Page 13: Gaze

    Before Beginning Setup Gaze A gaze can be used to move the cursor and highlight apps and other holograms for selection. The cursor follows whole head movements as opposed to simple movement of the eyes. Holograms are highlighted when they are available to be selected. Gaze Air Tap Use air tap, along with gaze, to select apps and other holograms.

  • Page 14: Tap And Hold

    CAELucinaAR Before Beginning Setup 5. Keep your elbow low and comfortable. Air Tap 6. Tap your finger down, then quickly raise it back up again. Tap and Hold To tap and hold, start with an air tap, but keep your finger down instead of raising it back up. ©2019 CAE 905K472052 v2.1...

  • Page 15: Zoom And Rotate Gestures

    Before Beginning Setup Use tap and hold to: • Scroll: On the app bar, select Scroll Tool. Tap and hold until the tool appears, then slowly move your hand up and down or side to side. To scroll faster, move your hand farther from the center of the tool.

  • Page 16: Know Your Surroundings

    CAELucinaAR Before Beginning Setup around. This directs the device to return visual feedback on its spatial mapping, drawing green triangles on the surfaces it knows about. Note: The HoloLens continuously tracks its surroundings to maintain its position in the World. Here are examples of things that can confuse the device.

  • Page 17: Stay Comfortable

    Before Beginning Setup Stay Comfortable Some people may experience discomfort such as nausea, motion sickness, dizziness, disorientation, headache, fatigue, eye strain, or dry eyes when using mixed or virtual reality, particularly as they adjust to using it. Typically, motion sickness and related symptoms occur when there is a mismatch between what you see and what your body perceives.
  • Page 18 CAELucinaAR Before Beginning Setup If symptoms are severe or persist, consult your doctor. Viewing AR or Mixed Reality is not known to harm vision development or cause binocular vision disorders. If you are not able to view the AR effect clearly and comfortably, consider consulting an eye doctor, as you may have an undiagnosed binocular vision disorder.

  • Page 19: Setup

    Setup ETUP Prior to using the HoloLens and simulator exercises, it is necessary to setup and configure the network settings for the HoloLens to function properly. Setup LucinaAR Validate Microsoft HoloLens Account Charge the HoloLens Connect and Start the HoloLens Power On the HoloLens Establish the Network Connection Update the System...

  • Page 20: Battery Leds

    CAELucinaAR Setup Battery LEDs LED Action Indication Scrolling Center Outward HoloLens is Starting All On HoloLens is on and charging (Battery life is shown in 20% increments) Turning Off one at a time HoloLens is Shutting Down All turn Off at once HoloLens has gone into Standby All Lighted - One Blinking - All Lighted Battery is Critically Low - HoloLens needs to Charge...

  • Page 21: Power On The Hololens

    Setup 2. Connect the network cable between any of the blue ports on the router and the Ethernet LAN port on Lucina’s right side. Lucina Ethernet Ports 3. Press the power button located on the right side of the manikin’s torso to turn on Lucina and wait for the manikin to say “hello.”...

  • Page 22: Establish A Network Connection

    CAELucinaAR Setup 3. Bloom to view the Start menu. Establish a Network Connection The HoloLens is pre-configured to connect to the router. To ensure the router is connected: 1. Verify the wireless connectivity to the network by viewing the WiFi status indicator at the top of the Start menu.
  • Page 23 Setup 4. Select the Network & Internet icon with air tap along with gaze. Settings Window Network & Internet Icon 5. Connect to a WiFi network with Internet capabilities. If required, enter the password for the network. NOTE: Use care when selecting characters on the virtual keyboard. 6.
  • Page 24 CAELucinaAR Setup 9. Select the Restart now button with air tap along with gaze to complete the installation. Settings Window Restart Now Button NOTE: This step could take more than 20 minutes to complete. While the HoloLens is restarting, you may connect the HoloLens to power, and place the HoloLens upright in its case to keep it from sleeping.

  • Page 25: Download Updates From Microsoft Store

    Setup Download Updates from Microsoft Store To download LucinaAR updates from the Microsoft Store: 1. Bloom to show the Start menu. If the Microsoft Store icon is not shown on the Start menu, do one of the following: Select the All Apps icon using air tap along with gaze. º...
  • Page 26 CAELucinaAR Setup 4. Select the Downloads and updates option with one of the following methods: Use air tap along with gaze. º Use gaze and follow the voice command prompt by saying “Downloads and updates” º when it appears at the bottom of the Downloads and updates option. Downloads and Updates Option 5.

  • Page 27: Update Lucina Ar

    Setup Update Lucina AR To update the LucinaAR App: 1. Select the Download icon for the LucinaAR application with air tap along with gaze. Download Icon NOTE: The download may take a few minutes to complete. You can follow the progress of the download when the LucinaAR application appears in the download queue section.
  • Page 28 CAELucinaAR Setup 3. Select the Launch button to launch the LucinaAR application with one of the following methods: Use air tap along with gaze. º Use gaze and follow the voice command prompt by saying "Launch" when it appears º at the bottom of the Launch button.
  • Page 29 Setup 5. Air tap on Iris to skip her introduction. Air Tap to Skip Iris’s Introduction 6. Select the Refresh button in the Settings menu by using air tap along with gaze. The Refresh Button in the Settings Menu 7. Verify that the Version number at the bottom of the Settings menu has been updated and that the license number is correct.

  • Page 30: Manage Network Connections

    CAELucinaAR Setup Manage Network Connections To remove available networks from the Known Networks list: 1. Bloom to show the Start menu. 2. Select the Settings icon with air tap along with gaze. The Settings Icon 3. Move the Settings window with gaze, and air tap to anchor it in place and run. 4.
  • Page 31 Setup NOTE: Depending on the number of available WiFi networks, you may need to air scroll to the bottom of the list to see the Manage known networks option. Network & Internet Manage Known Networks Option 6. Select any network other than your product’s WiFi network with air tap along with gaze, and select the Forget button with air tap along with gaze when it appears.

  • Page 32: Configure The Start Menu

    CAELucinaAR Setup Configure the Start Menu HoloLens operating system updates may alter your Start menu configuration. Start Menu If this is the case, you can unpin or pin applications to your Start menu by selecting the application with air tap along with gaze until the Unpin or Pin options appear, respectively. Select the Unpin or Pin options with one of the following methods: Use air tap along with gaze.

  • Page 33: Using Lucinaar

    Using LucinaAR SING UCINA The LucinaAR app enhances the simulation learning experience through the use of augmented reality and allows learners to gain a deeper understanding of the manikin’s physiology during clincical scenarios. Launch the LucinaAR App 1. Bloom to view the Start menu. 2.

  • Page 34: Lucinaar App Icons

    CAELucinaAR Using LucinaAR LucinaAR App Icons The following icons will provide feedback and allow you to perform functions: Connected: Indicates that the HoloLens is connected to Lucina’s Ethernet. Not Connected: Indicates that the HoloLens is NOT connected to Lucina’s Ethernet. Multi-User: Indicates that you are operating in Multi-User Mode.

  • Page 35: Tutorial Mode

    Using LucinaAR Tutorial Mode When you first start the application, you will be transferred to the Tutorial Mode. In this mode, you will learn everything you need to know about LucinaAR to properly use the application. If you skipped the tutorial by mistake on your first start of the application, or if you’d like a reminder, you can always access the Tutorial Mode by clicking the Tutorial button on the Settings Menu at the beginning of the application.

  • Page 36: Practice Modes

    CAELucinaAR Using LucinaAR Practice Modes Single User The single user mode uses pre-recorded data to drive the phsyiological values during the experience. If you select this mode, a holographic manikin will automatically be used. To use the application in single usermode: 1.
  • Page 37 Using LucinaAR c. To start the calibration, select the same SCE that was selected in Müse. Select Your Experience Menu 3. On Gaze Calibration: a. Place yourself on the left side of the manikin to match the hologram with the good orientation atop the manikin.
  • Page 38 CAELucinaAR Using LucinaAR c. Try to place the hologram as close as possible to the figure below, focus specially on the red circle on the lower border of the vaginal area. Fine Tuning Calibration - Single User d. When you are placed on the side of Lucina as shown below, keep the hologram at one inch of distance as in the above figure.

  • Page 39: Multi-User

    Using LucinaAR In Experience Chapter controls are as follows: In Experience Chapter Controls Multi-User Instructor 1. Visualize the 4 corners of the Fitbox and tap to continue 2. On the Select your experience menu: a. Tap Multi-User Instructor. b. Tap Physical Manikin. c.

  • Page 40: Holographic Mode

    CAELucinaAR Using LucinaAR 4. Follow the changes of the Host Client. NOTE: Tapping the Home button exits the experience. Holographic Mode In this mode, you will have essentially the same simulation as practice mode, but the physical manikin will be replaced by a holograph. Single User 1.

  • Page 41: Multi-User

    Using LucinaAR 5. On Fine Tuning calibration, tap the arrows to move the bed to your preferred position. Fine Tune Calibration - Holographic Mode 6. To start the simulation, tap Done. 7. In preparation mode, you will have the same controls as practice mode. Multi-User Instructor 1.

  • Page 42: End The Simulation

    CAELucinaAR Using LucinaAR You automaticaly receive the position of the instructor’s holograms. If you are satisfied with the positon of the instructor’s holograms, simply wait for the instructor to start the chapter. Holgram Sharing Screen If you feel the need to recalibrate the holograms to the desired position, you can stop receiving the instructor’s holograms and proceed with manual calibration, as done in Single mode.
  • Page 43 Using LucinaAR Power Off You must power off the Hololens and simulator. To power off the HoloLens: 1. Press and hold down the power button on the head band until the HoloLens says, “Goodbye.” 2. Plug the power supply into the HoloLens and allow the unit to recharge. To power off the simulator: 1.
  • Page 44 CAELucinaAR Using LucinaAR ©2019 CAE 905K472052 v2.1...

  • Page 45: Troubleshooting

    Troubleshooting ROUBLESHOOTING If you encounter problems while operating your LucinaAR, check the common solutions below prior to contacting CAE Customer Service. Wireless Connection Issue To connect to the desired simulator network: 1. Bloom to show the Start menu. 2. Select the Settings icon using one of the following methods: •...
  • Page 46 CAELucinaAR Troubleshooting 3. Select the Network & Internet icon by using air tap along with gaze. Settings Window Network and Internet Icon 4. Select the Settings icon in the Start menu. 5. Air tap the Settings window to anchor it in place. 6.

  • Page 47: Simulator Not Found Error

    Troubleshooting Simulator Not Found Error While selecting your experience, if the application detects any problem, you might encounter a warning icon like the following: Select Your Experience Screen with Warning Message Click on the button with the warning icon to open the Troubleshooting panel ©2019 CAE 905K472052 v2.1...
  • Page 48 CAELucinaAR Troubleshooting You will find information about your current issue and appropriate steps to help you solve the problem. Troubleshooting Panel ©2019 CAE 905K472052 v2.1...
