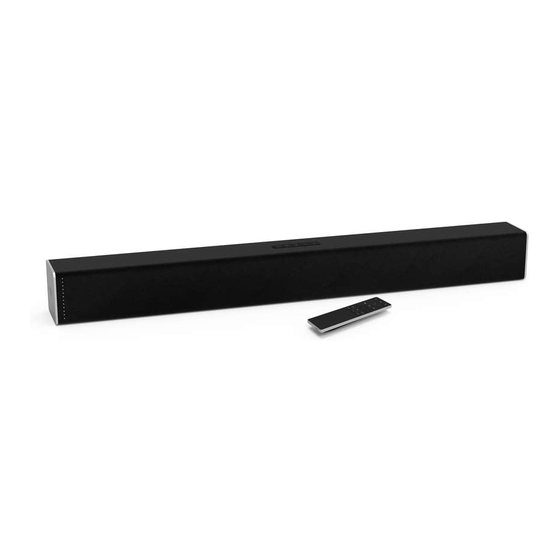

- Page 1 QUICK START GUIDE Model: SB2920-D6E...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may • Do not use your Unit if any abnormality occurs. If any smoke or odor becomes apparent, result in electric shock or fire. To prevent your Unit from being damaged, the following rules should unplug the power cord and contact your dealer immediately.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Package Contents ..............4 Controls & Connections ............5 fire or it in First-Time Setup................ 7 nit. Using the Remote ..............10 not be LED Indicators ................. 11 Bluetooth Pairing ..............13 ot place pose it Using Bluetooth Mode ............13 e same Advanced Setup .............. -
Page 4: Package Contents
PACKAGE CONTENTS High Defi nition Sound Bar Remote Control with Quick Start Guide 2 x AAA Batteries Power Adapter Digital Optical Stereo RCA to 3.5mm Cable Audio Cable 2 x Sound Bar Wall 2 x Wall Wall Mount Mount Brackets Mount Screws Template (Size: M4 x 10mm) -
Page 5: Controls & Connections
CONTROLS & CONNECTIONS Back of Sound Bar SUB OUT Subwoofer Out USB* Analog Audio In USB In OPTICAL (Stereo 3.5mm) Digital Optical Power Port Audio In Analog Audio In DIGITAL (Stereo RCA) Coaxial In * Supports .WAV fi le format playback only. ENG - 5... - Page 6 Bluetooth Input Hold to pair. (See ‘Bluetooth Pairing’ for more information.) Volume Increase or decrease the loudness of the audio. Input Press to change the audio source. Power Press to turn sound bar on or off . Top of Sound Bar ENG - 6...
-
Page 7: First-Time Setup
FIRST-TIME SETUP CHOOSE ONE CABLE GOOD BETTER Back of Sound Bar DIGITAL OPTICAL DIGITAL COAXIAL 3.5MM TO 3.5MM TO CABLE CABLE RCA CABLE RCA CABLE ‡ *† GOOD BETTER BETTER GOOD off. * Cable not included. † Not all TVs have the audio outputs shown above. To connect the AND CONNECT Sound Bar directly to your other devices (Blu-Ray player, game system, etc.) see your device’s user manual. - Page 8 Connect the included power adapter to the sound bar DC IN as shown. Plug the power cable (suitable to your region) into an electrical outlet. ENG - 8...
- Page 9 2. Insert the included AAA batteries and gently slide away from the remote. the battery cover back into place. When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries. When initially connected to power, turn your TV on.
-
Page 10: Using The Remote
USING THE REMOTE Input Press to change input source. (Press and Hold for 3 seconds to enable the Auto Input Detection mode) Power Bluetooth Press to turn the sound bar on or off. Press to enter Bluetooth input. (To enter force pair mode, press and hold for 5 seconds) Enter/Play/Pause Volume +/- Press to select an option. -
Page 11: Led Indicators
Press and hold the button on the remote. The sound bar will be discoverable for 15 (When searching for device) minutes. You can now search for the sound bar (VIZIO SB2920) using your Bluetooth Bluetooth Flash from the bottom to Device. - Page 12 Function LED Behavior Description Press the TSHD button to enable/disable DTS TruSurround. When enabled (On), TruSurround On all inputs will produce virtual surround sound. When disabled (Off), all sources will TruSurround On/Off playback in stereo. TruSurround Off Press the TREBLE button then press the Next/Previous button to increase/decrease Treble Two center LEDs indicate the treble level.
-
Page 13: Bluetooth Pairing
Once the device is paired, the LED Indicators will stop fl ashing. You can now search for the sound bar (VIZIO SB2920) using your Bluetooth device. For more information, refer to the user documentation that came with the device. -
Page 14: Advanced Setup
ADVANCED SETUP Back of Sound Bar 3.5MM TO DIGITAL OPTICAL DIGITAL COAXIAL 3.5MM TO RCA CABLE CABLE CABLE RCA CABLE Game Console Network Media Tablet/MP3 Player/Laptop USB Thumb Player Drive* * Supports .WAV fi le format playback only. ENG - 14... -
Page 15: Using Button Combinations
3 times Note: This will erase all settings and preferences that you have set. Enable/disable the use of a VIZIO TV remote control to power on and VIZIO TV adjust the volume of the sound bar. To enable/disable this function,... -
Page 16: Wall-Mounting The Sound Bar
WALL-MOUNTING THE SOUND BAR Wall-Mount Screw Holes Back of Sound Bar Insert the two wall-mount screws into the wall-mount screw holes, and then tighten them with a Phillips screwdriver. Place the included wall mounting template against the wall under your TV. Mark the four bracket holes using a pencil. ENG - 16... - Page 17 Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate your home’s construction. If in doubt, consult a professional installer.
-
Page 18: Help & Troubleshooting
HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the top of your sound bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •... -
Page 19: Limited Warranty
You will be responsible for restoring all applicable user data and downloaded applications onto the product returned to you. In case of replacement, VIZIO cannot guarantee that you will receive the same model of product. If your model is not available, a product of equal value and similar style will be provided, or you may request a refund of the original purchase price. - Page 20 Exclusions and Limitations If you are a consumer and VIZIO fails to comply with these terms, to the extent permitted by law, VIZIO may be responsible for loss or damage you suffer that is a foreseeable result of VIZIO breaking the terms of this warranty or its failing to use reasonable care and skill, but VIZIO is not responsible for any loss or damage that is not foreseeable.
-
Page 21: Specifications
SPECIFICATIONS Sound bar: 2 x 5.80 cm full-range drivers 2 x passive radiators Connections: 1 x 3.5 mm stereo audio r any 1 x RCA stereo audio 1 x Optical (Toslink) 1 x Coaxial digital audio 1 x USB Bluetooth (wireless) Sound Pressure Level 95 dB (System):... -
Page 22: Legal & Compliance
LEGAL & COMPLIANCE Declaration of Conformity (DoC) Disposal of Old Equipment and Batteries Hereby, Vizio Inc declares that this product is Only for European Union and countries with recycling in compliance with the essential requirements systems and other relevant provisions of Directive 2014/53/EU. - Page 23 Bluetooth SIG, Inc. and ® any use of such marks by VIZIO,Inc. is under license. Other trademarks and trade names are those of their respective owners. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited.
