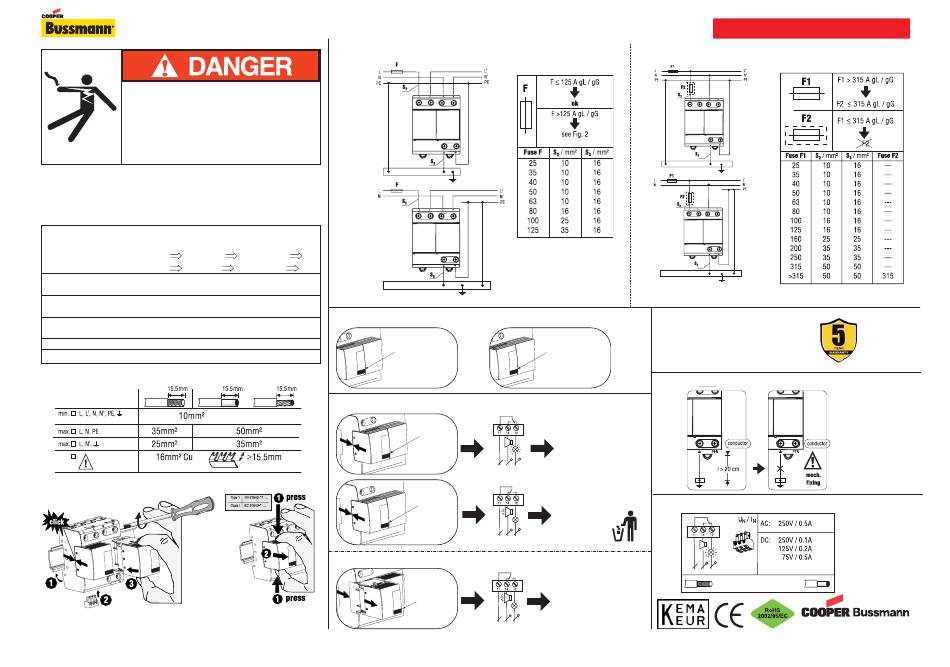

Cooper Bussmann BSPS2255TN Installation Instructions

Surge Protection Made Simple

Hazardous Voltage

Will cause severe injury or death.
Working on or near energized circuits poses a
serious risk of electrical shock. De-energize all
circuits before installing or servicing this equipment
and follow all prescribed safety procedures.
IEC 61643-1 Type I, Two-Pole
TN & TT System Installation Instructions
BSPS2255TN(R) & BSPS2255TT(R) Technical Data
Voltage U c 255V/50Hz
I fi 50kA rms
I imp (10/350μS) TN 25kA (L PE), 25kA (N
TT 25kA (L N), 50kA (N
Max. Fuse 125A gL/gG - Series connection - Figure 1
315A gL/gG - Parallel connection - Figure 2
Types: W/O Remote BSPS2255TN
With Remote BSPS2255TNR

Replacement Modules

2X - BPS255IEC*
Operating Temperature -40°C to +80°C (+60°C Series connection - Fig. 1)
IP Rating IP20
Conductors and Busbars for Use in IEC Systems

Mounting

Phillips Head Driver
Torque to 7 N•m

System Installation

3A1514 ©2010 Cooper Bussmann St. Louis, MO 63178
Publication No. 1542/US Update 12.10 ID-No. 062576
™

Wiring

TN
Main Earthing Bar
TT
PE), 50kA (L+N PE)
PE), 50kA (L+N PE)
Main Earthing Bar
BSPS2255TT
BSPS2255TTR

Visual Indication Status

1X - BPS255IEC*
1X - BPS50NPEIEC**
Green = Good
Fault Indication & Remote Contact Signaling (with modules installed)

Testing Remote Contact Signaling (with modules removed)

Module Replacement

This Product Is Obsolete
No recommended replacement is available
Figure 1 - Series Connection & Fusing
* *
TN/TT Parallel conection
* **
Fuse sizes are suitable for
K=115 70°C or higher rated
cable
Red = Replace
Green
Green = Good
Red
Red = Replace
Remove/Test
Green
REMOTE OK
IEC APPLICATIONS
Figure 2 - Parallel Connection & Fusing
TN
* *
Main Earthing Bar
TT
* **
Main Earthing Bar
Fuse sizes are suitable for K=115 70°C
or higher rated cable
Warranty
See document 3A1502 at
www.cooperbussmann.com/surge
for details of limited warranty.
Mechanical Fixing

Remote Contact Signaling

2
60/75°C max. 1.5mm /14AWG
