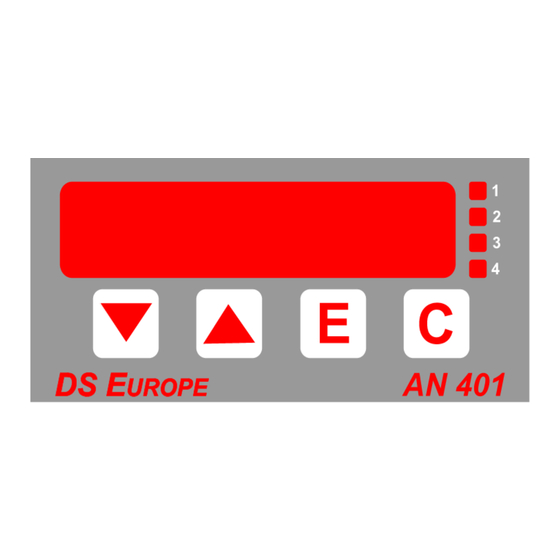

- Page 1 DS EUROPE by S2Tech T R A N S D U C E R S A N D I N D U S T R I A L E L E C T R O N I C S MICROPROCESSOR...
- Page 2 This manual contains information protected by copyright. No part of this manual may be photocopied, or reproduced in any form, or translated without prior written consent from S2Tech. Preliminary manual AN 401 Plus V2 r12 25/10/12...
- Page 3 Additional or updated copies of this document may be found on our web site at the following address: www.s2tech.it The Products, which are the subjects of this manual, are designed and manufactured for general use; therefore, being not possible to specify limits of use for all applications, the Buyer shall introduce safety measures in order to avoid personal injuries, damages to property or damages due to plants stoppage, etc.
-
Page 4: Table Of Contents
-4 / 20- Summary CE declaration ................... 5 Electrical connection ................. 6 Rear terminal connections ....................6 Power Supply Connection ....................6 2.2.1 Power Supply ....................... 6 Connection of 0 to 80 mV differential signal input card [I1 option] ......7 Connection of ±... -
Page 5: Ce Declaration
-5 / 20- CE declaration Applied Council’s directives: 89/336/CEE modified by directives 92/31/CEE, 93/68/CEE Conformity to Standards: EMC: EN 50081-2: 1994 - Emissions, General Norm EN 55011 EN 50082-2: 1995 - Susceptibility, General Norm ENV 50140 ENV 50141 EN 61000-4-4 EN 61000-4-2 EN 61000-4-8 ENV 50204... -
Page 6: Electrical Connection
-6 / 20- Electrical connection 2.1 Rear terminal connections RJ-11A CanBus RJ-11B RS-485 RS-232 INPUT 5 4 3 EARTH Figure 1: AN401plus rear view. 2.2 Power Supply Connection Terminal Description Power Supply, polarity free Power Supply, polarity free Earth Connection EARTH 2.2.1 Power Supply ... -
Page 7: Connection Of 0 To 80 Mv Differential Signal Input Card [I1 Option]
-7 / 20- 2.3 Connection of 0 to 80 mV differential signal input card [I1 option] Terminal Description Note DS Europe color code + Transducer’s signal input WHITE from 0 to ± 80 mV - Transducer’s signal input GREEN + 5 Vdc power supply: transducers has to - Power supply to transducer BLACK... -
Page 8: Connection Of 0 To 5 Volt [O1 Option] And 0-10 Volt [O2 Option] Output Cards
-8 / 20- For longer connections, between transducer and instrument, verify that at the transducer’s end You can measure a power supply voltage of 18 Vdc minimum. To calibrate an AN401plus, connected with a PCX_ss magnetostrictive transducer, follow the general procedures described in the “AN401plus quick start manual”... -
Page 9: Connection Of I/O Card [D1 Option]
-9 / 20- 2.10 Connection of I/O card [D1 option]. Terminal Description Opto-insulator electrical Opto-insulated output 1 (open collector) characteristics Opto-insulated output 2 (open collector) - Maximum DC voltage: 50 Vdc. Opto-insulated output 3 (open collector) - Maximum current: 40 mA. Opto-insulated output 4 (open collector) - Settling time: from 18 µS to 10... -
Page 10: Connection To External Inputs
-10 / 20- 2.11 Connection to external Inputs On AN 401 plus are available four opto-insulated inputs. Their behaviour depends from the selected instrument’s operating mode. Please refer to the chosen operating mode. Digital inputs can be connected to the “INPUT” screw terminal. Terminal Description Note... -
Page 11: Connection Of (1) Rs-232(Db-9) Serial Port
-11 / 20- 2.13 Connection of (0) RS-232(DB-9) serial port Communication serial port used, for its flexibility, for configuration and for reading of measurements in an ambient not to noisy, from the electrical point of view (induced and radiated disturbs), and with a serial connection cable not longer than 3 meters (baud rate can be lowered, in order to optimize serial connection for longer connection lines). -
Page 12: Rs485 And Rs422 Line Terminator Resistor
-12 / 20- 2.14.2 RS485 and RS422 line terminator resistor MULTI DROP connections, like RS485 and RS422, require having a resistance applied at both ends of the communication line (if not yet present inside the connected devices); one is to be placed in parallel to the last AN401plus and one on the PLC or computer on the other end. -
Page 13: Operating Parameter Setting
-13 / 20- Operating parameter setting Preliminary manual AN 401 Plus V2 r12 25/10/12... -
Page 14: Analog Output Setting
-14 / 20- Analog output setting Note: valid only if an analog output card is installed into AN401plus. Analog output card is active for all operating modes. DMODE command allows setting analog output in the following ways DMODE = 1 DMODE = 0 Current analog output behavior can be set in the same way. -
Page 15: Serial Connection Setting
-15 / 20- Serial connection setting BAUD set value Serial data transmission rate (baud) Default values Serial data transmission rate (baud) Baud rate 4 (9600 baud) 1200 Address 2400 4800 9600 19200 38400 57600 Table 1: Available baud rate values. Preliminary manual AN 401 Plus V2 r12 25/10/12... -
Page 16: Measurement Functions
-16 / 20- 7 Measurement functions Measures GROSS TARE NET = (GROSS – Dynamic ZERO) Display Keyboard Push button C Set Dynamic ZERO = Measured value Push button E When pressed display shows Dynamic ZERO value ... -
Page 17: Peak Function
-17 / 20- 7.1 Peak function The peak function stores and displays the maximum value reached by transducer’s signal when the KEY4 rear contact is activated (see table 1) Key 4 rear contact has to be kept closed as long as peak value is to be displayed (see chapter 2.10). When this function is active, the leftmost LED dot under the minus sign is powered on. -
Page 18: Dsenet Serial Protocol
-18 / 20- DSENET serial protocol NOTE: for protocol compactness it was decided to use only one character to address an instrument. After the first ten numbers, address numbering continues with alphabet letters, thus A means 10, B means 11 and so on until Z that means 35. -
Page 19: Timestamp "R
-19 / 20- 8.2 Timestamp “r ” To obtain, from AN401plus, measured value with timestamp reference send command “r”. Timestamp is obtained from an incremental counter related to the measure performed by AN401plus and its value is ranging from 0 to 65535; when maximum is reached It restarts from zero. -
Page 20: Sales Conditions
S2Tech liability is limited to the above; S2Tech is not liable for any personal injuries, damages to property or damages due to stoppage of machinery or plants caused by installation and use of supplied Product (including, without any limits, any lost profits, lost savings, stoppage of activities, lost information or any other economic losses).
