- Page 1 User manual and installation guide bluechimney.dk Version 2...
-
Page 2: Table Of Contents
English Index 1.0 Product information ........................1 1.1 Contents ............................1 1.2 Use ..............................1 1.3 Function ............................1 1.4 Chimney sweeping .......................... 2 1.5 Warranty ............................2 1.6 Specifications and dimensions ...................... 2 1.7 Installation ............................3 1.8 Electrical connection ........................3 1.9 Maintenance and troubleshooting .................... -
Page 3: Product Information

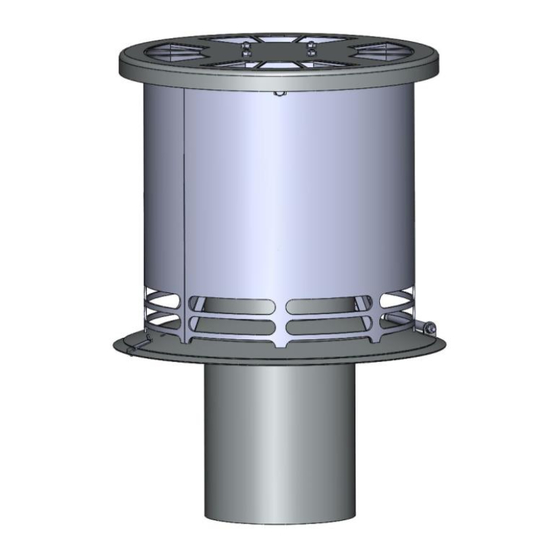

BlueChimney can be used for chimneys where a steady natural draught is wanted. Before lighting a fire in the fireplace, BlueChimney must be started on full speed. When the logs burn, the air supply and speed of BlueChimney should be adjusted until bright and calm flames appear in the fireplace. -
Page 4: Chimney Sweeping
English dilution and diffusion effect is obtained. BlueChimney is an open unit and when you light the fire correctly, there is no risk of smoke poisoning or obstruction. BlueChimney has automatic built-in safety, protection and maintenance functions which start the fan when the temperature exceeds 35°C. -
Page 5: Installation
English 1.7 Installation BlueChimney should be placed in the middle of the vent on top of the chimney. If you have a chimney cap, it must be removed because the smoke extractor works as a rain cap. National rules of movements on roofs must be followed. - Page 6 Note: The speed regulator cannot be mounted outside Remote control: If BlueChimney is purchased with a remote control as an integral part of the shipment, the speed regulator is not included. The remote control user manual appears...
- Page 7 Finally, put the plug from the power supply in the control box, and connect the power supply to a switched on socket outlet. Now, the BlueChimney is ready for use. Important! The power supply should always be connected to constant current – also in the summer period - and cannot be placed where there is a risk of water, splashes, moisture or temperatures above 50 °C.
-
Page 8: Maintenance And Troubleshooting
Axial wing Engine print Control box print Speed regulator Propeller 1.9.2 Maintenance When used regularly, the BlueChimney needs maintenance corresponding to the periodical chimney sweep visits. However, at least once a year the BlueChimney should be cleaned thoroughly by an expert. -
Page 9: Ec Declaration Of Conformity
IMPORTANT! Disconnect the power from unit before you start cleaning. When cleaning, the top ring should be dismounted and the BlueChimney cleaned thoroughly on the inside. The axial wing should be carefully cleaned to remove soot or it can be replaced. The safety net must be cleaned from soot and dirt.
