Summary of Contents for Snap Appliance Snap Disk 30SA

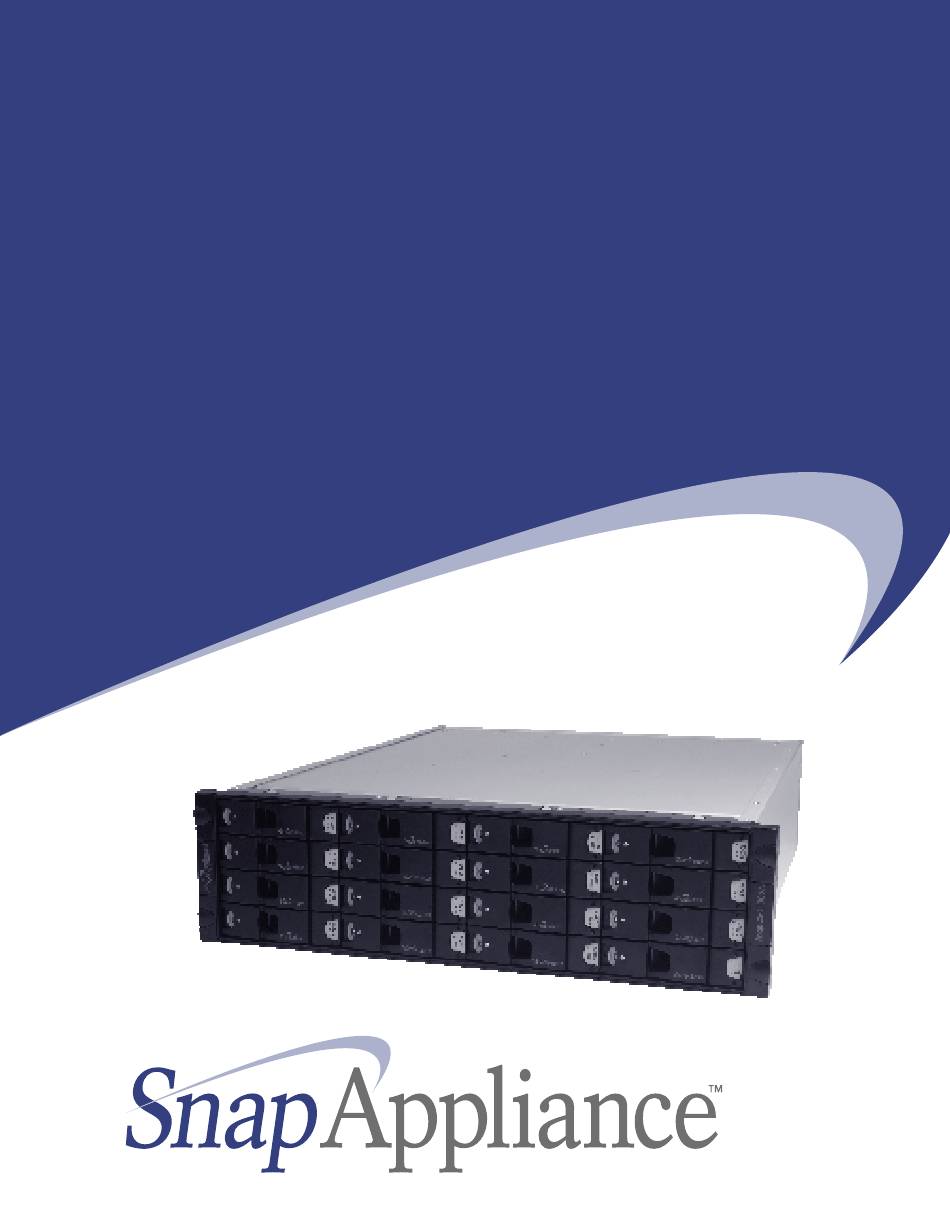

- Page 1 Quick Start Guide and User CD Kurzanleitung und Benutzer-CD Guía de iniciación rápida y CD del usuario Guide de mise en route rapide et CD de l’utilisateur...
-
Page 2: Hardware Features
Hardware Features Hot-swappable disk drives (sixteen) Optical FC connector Power connector Quick Start Guide FC Address module Power/Fan module status lights Rack mount shelves Disk drive locking tool Copper FC connector Power/Fan module power switch FC loopback terminator Optical FC cable Power/Fan module Rack mount screws Copper FC cable... -
Page 3: About This Guide
Overview Every Snap Disk 30SA ships with a 3 meter optical FC cable, a 1meter copper FC cable, and one optical FC loopback terminator. Multiple Snap Disk 30SAs can be connected to a Snap Server in a single loop configuration. - Page 4 OPTICAL connector on the Snap Disk 30SA. If installing a single Snap Disk 30SA, make sure the terminator (TERM) switch is in the ON position, and then check the ID and Dip Switch settings as described below. If installing additional units, make sure the TERM switch is in the OFF position and proceed to the next section.
-
Page 5: Connecting The Power Cords
Snap Disk 30SAs to a power source via the same UPS device. Plug the power cords (female end) into the power connectors on the Snap Disk 30SA. Plug the other end (male end) of each power cord into a UPS (recommended) or properly grounded electrical outlet.
