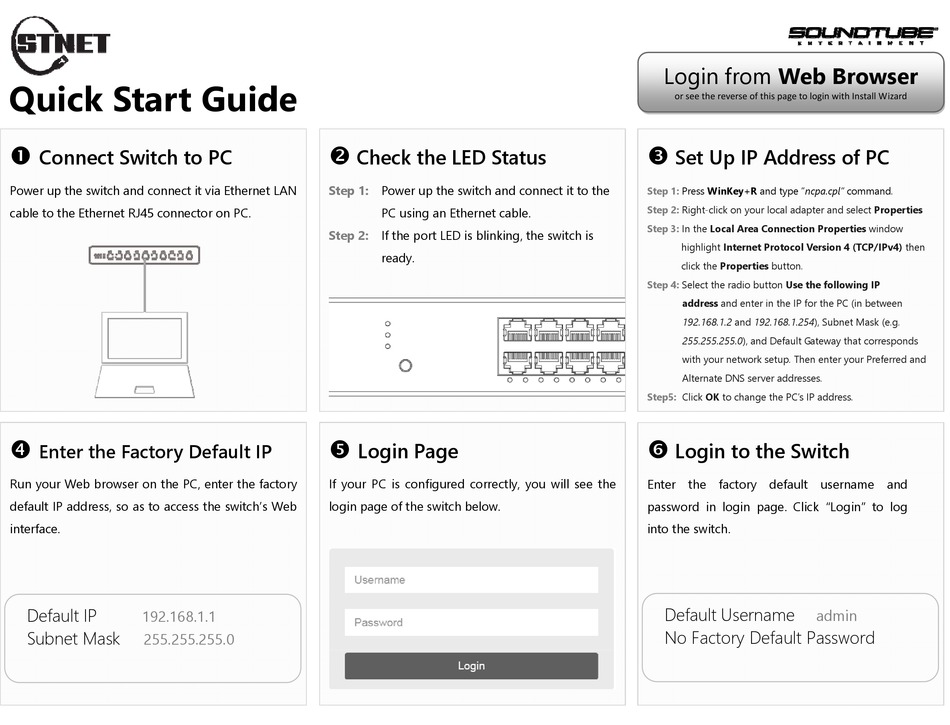

SoundTube STNet Switch II Quick Start Manual

Quick Start Guide

Connect Switch to PC
Power up the switch and connect it via Ethernet LAN
cable to the Ethernet RJ45 connector on PC.

Enter the Factory Default IP
Run your Web browser on the PC, enter the factory
default IP address, so as to access the switch's Web
interface.
Default IP
192.168.1.1
Subnet Mask
255.255.255.0

Check the LED Status
Step 1: Power up the switch and connect it to the
PC using an Ethernet cable.
Step 2: If the port LED is blinking, the switch is
ready.


Login Page

If your PC is configured correctly, you will see the
login page of the switch below.
Login from Web Browser
or see the reverse of this page to login with Install Wizard

Set Up IP Address of PC
Step 1: Press WinKey+R and type "ncpa.cpl" command.
Step 2: Right-click on your local adapter and select Properties
Step 3: In the Local Area Connection Properties window
highlight Internet Protocol Version 4 (TCP/IPv4) then
click the Properties button.
Step 4: Select the radio button Use the following IP
address and enter in the IP for the PC (in between
192.168.1.2 and 192.168.1.254), Subnet Mask (e.g.
255.255.255.0), and Default Gateway that corresponds
with your network setup. Then enter your Preferred and
Alternate DNS server addresses.
Step5: Click OK to change the PC's IP address.

Login to the Switch
Enter the factory default username and
password in login page. Click "Login" to log
into the switch.
Default Username
No Factory Default Password
admin
