FORESIGHT CD816P Manual

Programmable 8 input 16 Output Video Distributor in 1U Rack Mounting Panel
ITEM NO.: CD816P
CD816P is designed to distribute equal video signals to multiple locations.
capable of set up the input/output configuration by inside software. The application is
perfect for larger industry CCTV installation where need distribute equal video signals
to multiple locations. They are suitable for different floor in a building or different
electrical field.

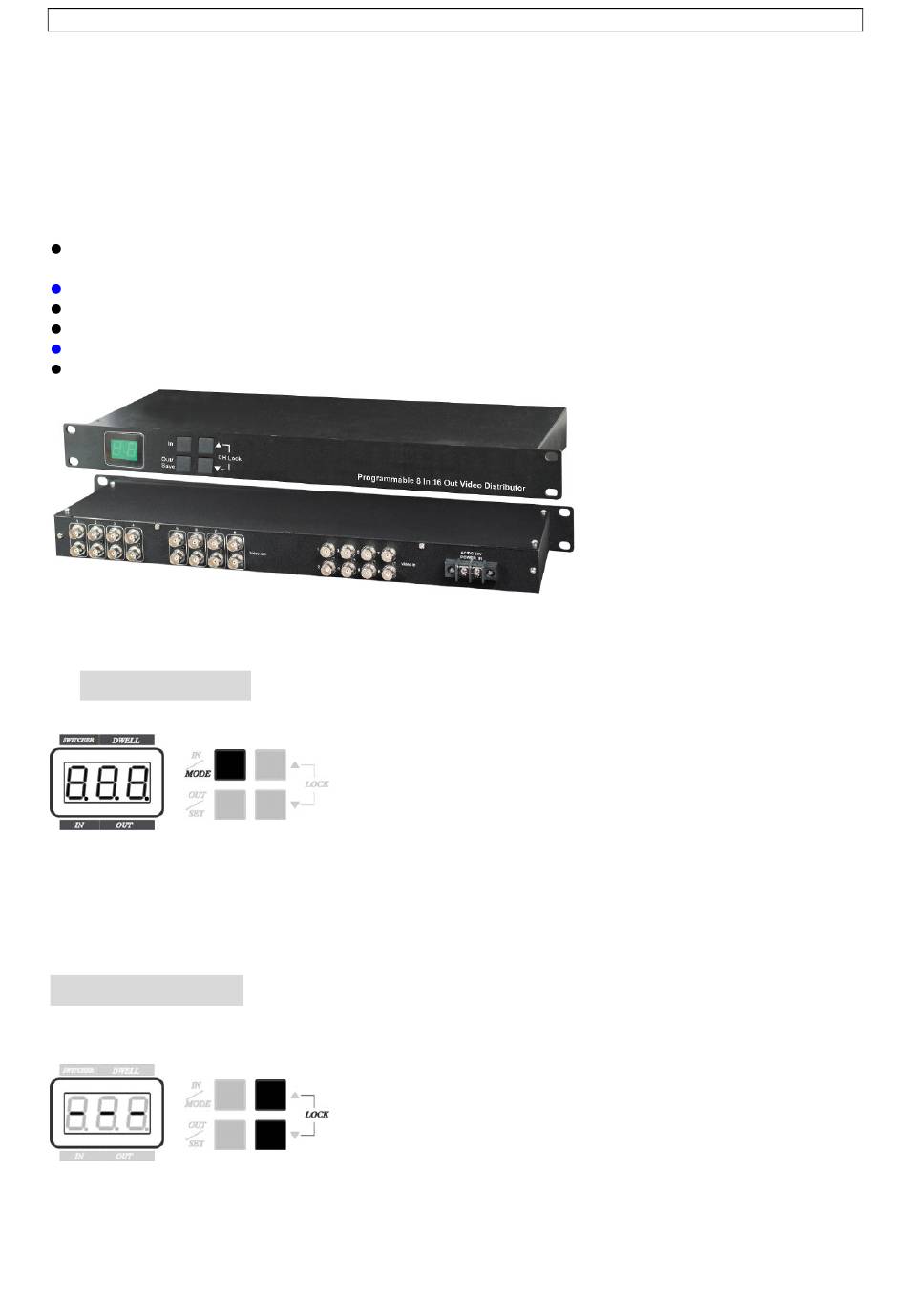

CD816P Programmable 8 Input to 16 Output Video Distributor

Features:

Professional version, configurable at 8 video input/16 video output by software, jumperless
for easy setting.
LED display and 4 buttons for setting, each operation.
Each video input (8) could set up "1-16" video output.
Built in memory function, no need resetting after power disconnection.
Channel 16 including extra "switcher output" function.
Power supply included.

Panel Setting and Control:

1. Mode Option:

Under DISTRIBUTOR mode: set up the Video Out from 1 to 16.
Under SWITCHER mode: set up the Video Out form 1-15. Switcher output at channel 16.

2. Button Lock:

Under LOCK mode: If press any keys, no any moving and the LED panel will display
"---".
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Press [MODE] button(over 0.5 second) for switching
"DISTRIBUTOR" mode & "SWITCHER" mode.
To press [▲] and [▼] button (over 0.5 seconds), to
lock or unlock the setting.
mistouch the button to change the original setting.
It could avoid anyone
It is
