GEH-1814
A—C SUPPLY OF CORRECT FREQUENCY
POTENT I OMETER
I
S 2
-__
T
1 T
l
MF—2 TIMER
5V6
DEVICE FUNCT!O.N NUMBERS
58
—
UNDER AND OVERVOLTAGE RELAY, TYPE 14V53
SI
SEAL—IN UNIT WITH TARGET.

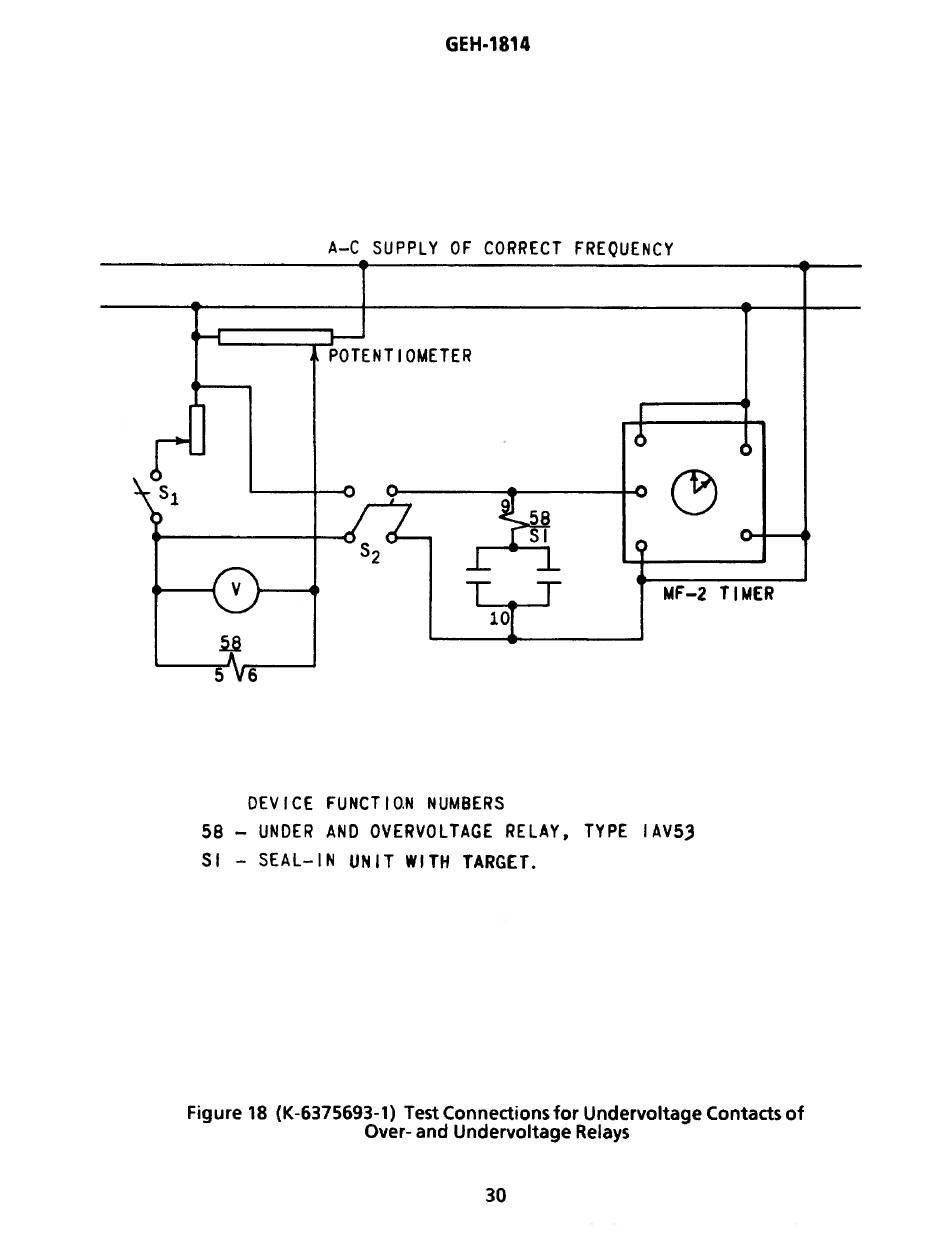

Figure 18 (K-6375693-1) Test Connections for Undervoltage Contacts of
Over- and Undervoltage Relays
30
