Conne Cting Plug; Auxil Iary Brush - GE IAV53E Instructions Manual

GE H-i 814
MAIN BRUSH
NOTE:A FTER ENGAG ING AUXIL IARY BRUSH ,CONNE CTING PLUG
TRAVE LS
1/4
INCH BEFOR E ENGAG ING THE MAIN BRUSH ON
THE TERMI NAL BLOCK

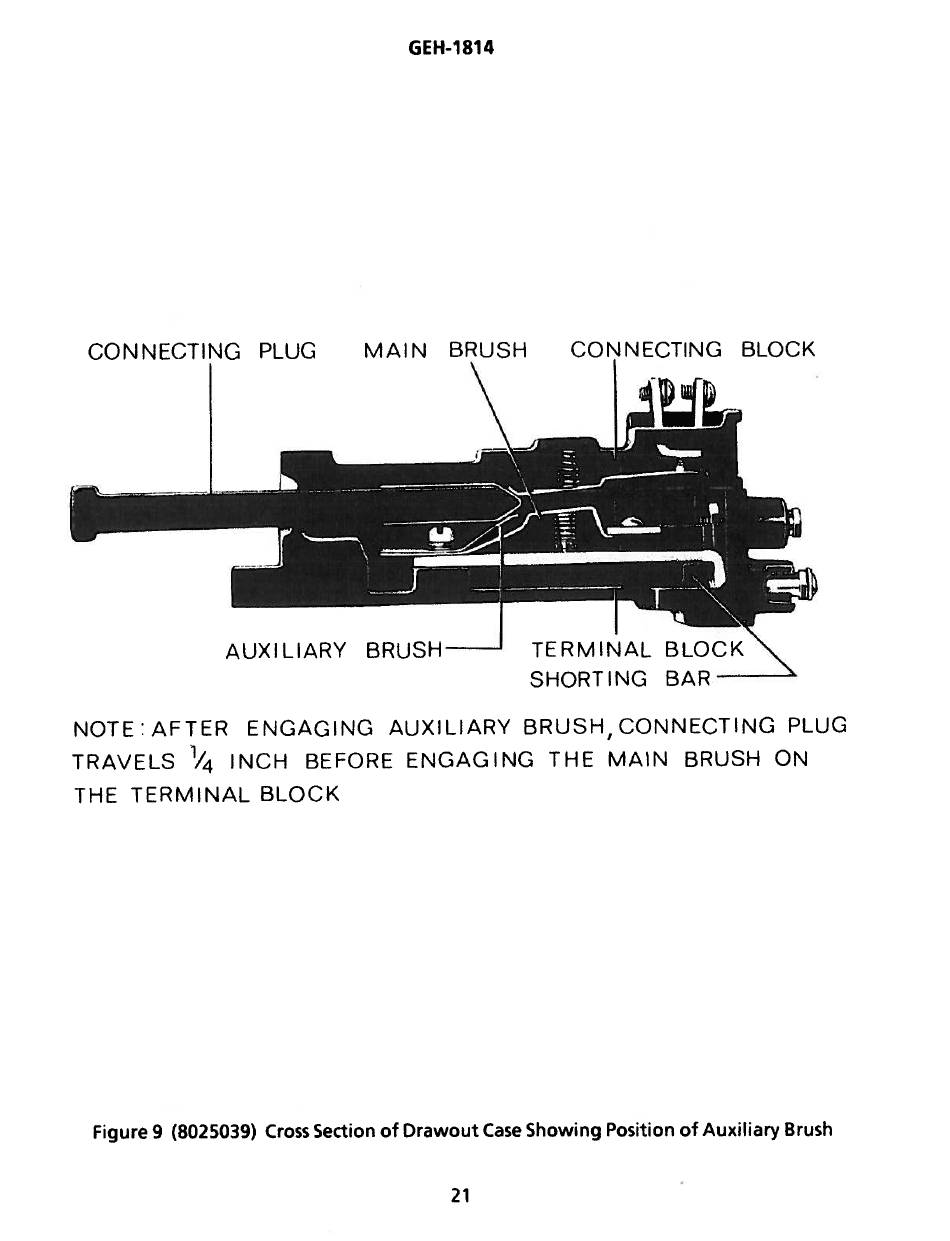

Figure 9 (8025039) Cross Section of Drawou t Case Showing Position of Auxiliary Brush
CONNE CTING PLUG
CONNE CTING BLOCK
AUXIL IARY BRUSH
TERMI NAL BLOCK
SHORT ING BAR
