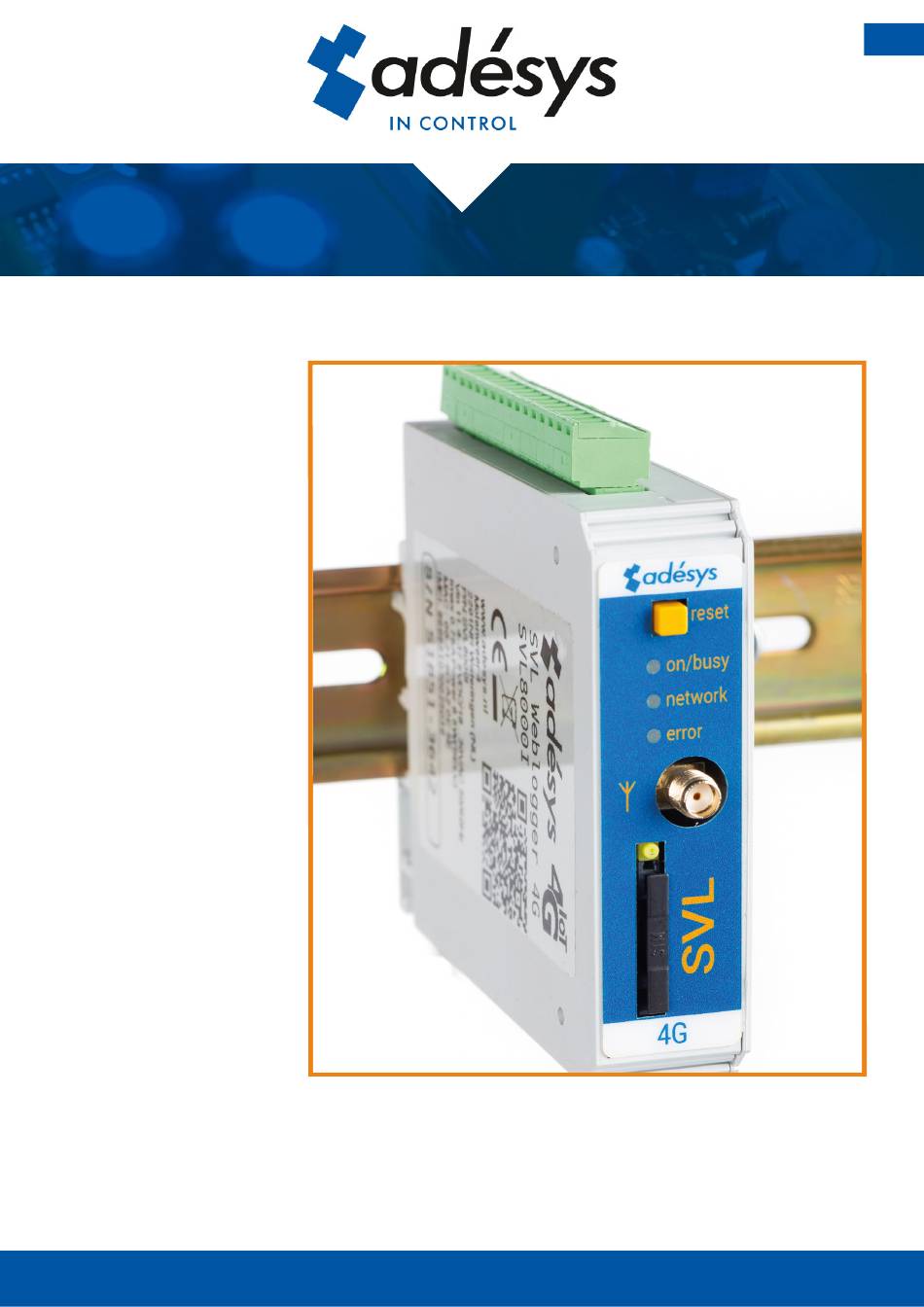

- Page 1 Manual SVL Version 06-2019 MEASURING - ALERTING - CONNECTING...
-
Page 2: Table Of Contents
Adesys B.V. | Wateringen Index Introduction Variants Features of the SVL-series Safety criteria Checking the delivery Environment Warranty and repair Liability 1.8 Identification Connection Positioning 2.2 Affixing and removal: DIN rail SIM card Antenna Power supply 2.5.1 SV-20 mains adapter 2.5.2 Power supply Reset key... -
Page 3: Introduction
Adesys B.V. | Wateringen Introduction This manual covers the SVL module equipped with firmware version 1.0 and higher. The SVL is an alarm dialer and can be used to monitor processes and report alarms via SMS and E-mail. 1.1 Variants The SVL is available in multiple variants: • The SVL with universal inputs and an output open collector; • The SVL with universal inputs, output open collector and a relay output;... -
Page 4: Liability
Adesys B.V. | Wateringen 1.7 Liability Adésys accepts no liability for consequential loss in the event of the stagnation of the alarm. An alarm dialer does not provide a 100% guarantee against damage, it is merely a tool to prevent damage. You should therefore discuss the remaining risk with your insurer. 1.8 Identification Figure 1 Identification SVL... -
Page 5: Connection
Adesys B.V. | Wateringen Connection To connect the SVL correctly, we recommend using exclusively Camden CTB922HE/# type connectors. Measurements may be affected if other connectors are used. Positioning Position the SVL where it is not affected by direct sunlight or other heat sources. Choose the place of installation such that moisture cannot penetrate the device. The SVL can be mounted onto the TS35 rail without screws. The permitted ambient temperature range for the electronics is -20°C to +55°C. -
Page 6: Antenna
Adesys B.V. | Wateringen The use of a ‘Prepaid’ SIM card for dialling purposes is strongly discouraged. The mobile network cannot automatically request the call credit, which means that this can be run down without anyone noticing, resulting in outgoing notifications coming to a standstill. 2.4 Antenna Connect the antenna cable to the SVL’s antenna connection. -
Page 7: Inputs And Outputs
Adesys B.V. | Wateringen not be able to connect. This can be entered in SV-prog in the 2G/4G window. The SVL does not provide a notification if something goes wrong with the APN. For more information about the APN, please contact your provider. 2.9 Inputs and outputs It is possible to connect several variants of inputs and outputs to the SVL, such as contact inputs, voltage inputs dc and relay outputs. When connecting different inputs it is important to look carefully at the wiring... -
Page 8: Recovery Report (Idle)
Adesys B.V. | Wateringen 3.4.2 Recovery report (idle) If desired, a recovery report SMS can be sent after the input goes into idle mode. The default setting is off even if nothing has been selected. Select ‘Yes’ to activate this notification. A recovery report will always be sent to the external server. 3.4.3 System errors Various system errors can be detected by the SVL. Notifications can be set up individually for each error. Depending upon the error, this is displayed in the programming tool and a notification is sent via SMS. By default the notification of all system errors via SMS is switched off. Connections The term ‘connections’ is used to mean the connection to an external server. With the SVL it is possible to make a connection to Checkmyproces.com or to a dedicated server. 3.5.1 Checkmyproces.com Checkmyproces is a server on which the status of the SVL can be logged and is displayed via the cloud. -
Page 9: Factory Reset
Adesys B.V. | Wateringen 3.6.4 Factory reset By performing a factory reset all settings will be lost and a reset to the default settings will be prompted. Notification procedure The notification procedure starts in the event of a status change or error. If set up, the SVL will first establish a data connection and send data, and then send the associated notification message to the first contact on the call list that has been set up. Figure 2 Notification prodecure 4.1... -
Page 10: Output Switching By Sms
Adesys B.V. | Wateringen Output switching by SMS With the SVL, the output channel can be switched by means of an SMS message. The SMS message should be structured as follows: #<Command><parameter1><parameter2># • Command = O (Output). • Parameter1 = A (Active) of I (Idle) of P (Puls schakelen, default: 2 seconden active). • Parameter2 = Ingangsnummer. Note: The output number is not the same as the relay number. Relay number 1 is output 5. -
Page 11: Appendices
Adesys B.V. | Wateringen Appendices 6.1 Led status indication Number of flashes for error (red) Problem with GSM module No SIM card detected Incorrect pin code PUK code necessary Power failure No SMS central number / no antenna level No telephone number coupled to input / 2G/4G connection cannot be... - Page 12 Adesys B.V. | Wateringen Hardware 4201 4G Type I/O SVL0040-I SVL0022-I SVL0400-I SVL0402-I SVL0420-I SVL0800-I Contact inputs 0 - 8 max. contactresistance 1kΩ max. Vinl Pulse counter 0 - 8 Filter (pulse duration Tmin) • fast 1.2–20 ms • average 20–100 ms •...
- Page 13 Adesys B.V. | Wateringen Enclosure and operating conditions Enclosure DIN-rail (TS35) mounting; enclosure fire retardant UL94-V0 Dimmensions (W x H x D) 23 x 95 x 102 (mm) Weight 125gr Operating temperature Between -20°C ... +55°C Air humidity Between 20% ... 85% (niet gecondenseerd) IP code IP10 Maximum heigth Up to 2000 metres (above 2000 metres the maximum operating temperature is reduced by 1.5°C per 300 metres up to...
- Page 14 Molenweer 4 +31 174 794022 2291 NR Wateringen www.adesys.nl The Netherlands info@adesys.nl Also available in this SV-product line: SVA 4G alarm dialler SVM 4G modem Checkmyprocess.com Industrial 4G SMS/E-mail Industrial 4G modem/sms Convenient display of current alarm dialler for monitoring of...
