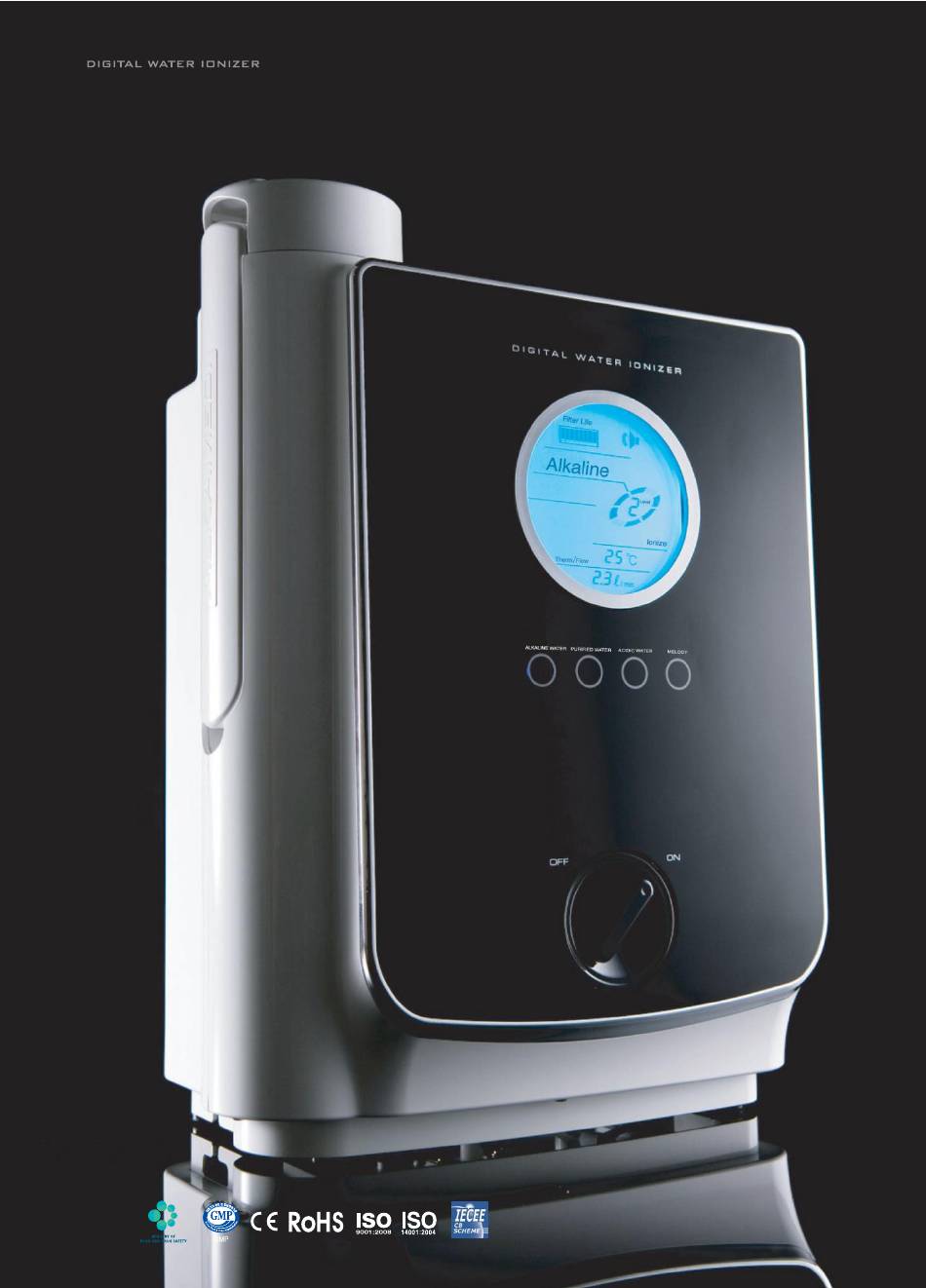

Alkamedi AMS4000 Operation Manual

Alkamedi AMS4000 Operation Manual

Digital water ionizer

Advertisement

AMS 4000 AMS 4000S
Operation Manual
Make sure to read this manual to correctly use the unit.
Keep the manual in an easy-to-find place for anytime reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMS4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alkamedi AMS4000

  • Page 1 AMS 4000 AMS 4000S Operation Manual Make sure to read this manual to correctly use the unit. Keep the manual in an easy-to-find place for anytime reference.
  • Page 2: Table Of Contents

    AMS 4 0 0 0 Contents AMS 4000S Contents SAFETY INSTRUCTIONS ······························································································································································ 3 APPEARANCE AND FUNCTIONAL STRUCTURE ························································································································ 7 INSTALLATION ·············································································································································································· 9 PACKAGE CONTENTS ······························································································································································· 12 HOW TO OPERATE ····································································································································································· 13 HOW TO OUTPUT ALKALINE IONIZED WATER ························································································································ 14 HOW TO OUTPUT ACIDIC IONIZED WATER ····························································································································· 15 HOW TO OUTPUT PURIFIED WATER ········································································································································...
  • Page 3: Safety Instructions

    AMS 4 0 0 0 SAFETY INSTRUCTIONS AMS 4000S ※ Make sure to read the following for your safety and protection Warning symbol to indicate importance of danger such as fire and personal injury. Caution symbol to indicate precautions and damage to the unit. IMPORTANT DISCLAIMER NOTE ABOUT DRINKING IONIZED WATER Disclaimer: ·...
  • Page 4 AMS 4 0 0 0 SAFETY INSTRUCTIONS AMS 4000S ① For electrical safety When the unit is imersed into water, pull out the power plug immediately and then take the unit out of the water. Avoid an electric circuit overload of an outlet or electric wiring. Connect the unit power plug to the correspondent AC voltage outlet.
  • Page 5 AMS 4 0 0 0 SAFETY INSTRUCTIONS AMS 4000S ③ Operational safety guidelines Do not disassemble, repair and/or modify in any situation. ▶ Personal safety could be compromised. ▶ For repair, please contact our authorized sales agent. Do not use any other water than sanitary drinkable safe water (municipal water etc).
  • Page 6 AMS 4 0 0 0 SAFETY INSTRUCTIONS AMS 4000S ④ Summary ·Do not give too high a drawing tension to the power cord when you pull the cord out of a socket. ·Keep the unit in a dry environment. ·Keep the unit clean away from dust, hot temperature, sunlight, salts, chemicals, etc. ·Do not attempt to modify the color, shape, or appearance of the unit.
  • Page 7 AMS 4 0 0 0 APPEARANCE AND FUNCTIONAL STRUCTURE AMS 4000S FRONT FACE, SIDE 1 Front Side. 2 Alkaline Water Outlet Dispenser. -AMS 4000: Fold-down(hidden) type dispenser -AMS 4000S: Flexible SUS Tube Dispenser 3 LCD Screen (Function Indicator) 4 Touch Buttons. 5 Operation Knob(Water Supply Control Valve) BACK FACE, SIDE 6 Main Power Switch.
  • Page 8: Appearance And Functional Structure

    AMS 4 0 0 0 APPEARANCE AND FUNCTIONAL STRUCTURE AMS 4000S LCD SCREEN (Function Indicator Window) 1. Filter Life Indicator. Replace filter when it flickers. 2. Filter Authenticity Indicator. It is to identify the filter authenticity. It flickers when an 9.
  • Page 9: Installation

    AMS 4 0 0 0 INSTALLATION AMS 4000S VIEW OF AN INSTALLED UNIT WALL- MOUNT INSTALLATION ① Vertically attach the provided installation- guide paper on the intended location of the wall after slightly pasting the guide paper with water. ② Drill holes into the wall on the wall stud position as shown in the guide paper and insert the screw holders.
  • Page 10 AMS 4 0 0 0 INSTALLATION AMS 4000S INSTALLATION PROCEDURE ① Select a solid flat surface with proximity to a power supply for desired location. ② Connect the provided 1/4" hose to water inlet port firmly. - In case of one touch fitting type, have water inlet port nozzle put into the hose hole completely (fasten the safety key thereon after the connection).
  • Page 11 AMS 4 0 0 0 INSTALLATION AMS 4000S AMS 4000 USAGE OF THE ALKALINE WATER FOLD-DOWN(HIDDEN) TYPE DISPENSER Handle the dispenser as per the following diagram. ·Lift up the dispenser arm to the height of the unit to have it positioned horizontally. ·Spread alkaline water fold-down(hidden) type dispenser out horizontally &...
  • Page 12: Package Contents

    AMS 4 0 0 0 PACKAGE CONTENTS AMS 4000S [AMS 4000 ] [AMS 4000S ] Unit Body Water Outlet Dispenser Cover (AMS 4000 only) *The AMS 4000S will be equipped with the flex Check Valve steel hose with handle type dispenser...
  • Page 13: How To Operate

    AMS 4 0 0 0 HOW TO OPERATE AMS 4000S HOW TO OPERATE-POWER / WATER SUPPLY 1. Plug in the AC power plug firmly. 2. Turn on the main power. Switch on the right side. ▶ The unit will beep and the LCD screen will display the initial modes 3.
  • Page 14: How To Output Alkaline Ionized Water

    AMS 4 0 0 0 HOW TO OUTPUT ALKALINE IONIZED WATER AMS 4000S HOW TO OUTPUT ALKALINE IONIZED WATER 1. Rotate the operation knob clockwise to have water inflow into the unit. 2. Push the alkaline water button and choose the pH level by pushing the button repeatedly.
  • Page 15: How To Output Acidic Ionized Water

    AMS 4 0 0 0 HOW TO OUTPUT ACIDIC IONIZED WATER AMS 4000S HOW TO OUTPUT ACIDIC IONIZED WATER 1. Rotate the operation knobclockwise to have a water inflow into the unit. ▶ Alkaline water mode appears initially 2. Push the acidic water button for acidic water outlet mode. ▶...
  • Page 16: How To Output Purified Water

    AMS 4 0 0 0 HOW TO OUTPUT PURIFIED WATER AMS 4000S HOW TO OUTPUT PURIFIED WATER 1. Purified water only can be operated in a standby mode.(in a finished condition of flow direction change after closed the water) 2. Push the purified water button.(LCD screen will be changed to purified water) ※In order to drink purified water during the use of alkaline water or acidic water, please push the purified water button after...
  • Page 17: Melody On/Off & Volume Adjustment

    AMS 4 0 0 0 MELODY ON/OFF & VOLUME ADJUSTMENT AMS 4000S MELODY ON/OFF 1. Just push the melody button to turn the melody sound on or off. ▶ Push the melody button, and the melody sound will be mute. ▶...
  • Page 18: Filter Replacement

    AMS 4 0 0 0 FILTER REPLACEMENT AMS 4000S FILTER REPLACEMENT 1. Replace the filter when the filter life indicator flickers. ▶ When a filter life is over, the filter life icon flickers and there is a voice guide please replace with a new filter” “...
  • Page 19 AMS 4 0 0 0 FILTER REPLACEMENT AMS 4000S 5. Insert the new authorized filter 1 Insert the new filter. 2 Push down the filter and drag the filter handle at the same time. 3 Connect the filter top cable with the filter connection terminal. ※...
  • Page 20 AMS 4 0 0 0 FILTER REPLACEMENT AMS 4000S Please consider replacing the filter with a new one even if the filter life indicator is not indicating the replacement timing (Filter life), in the event of the following abnormal conditions: ▶...
  • Page 21: Filter Composition

    AMS 4 0 0 0 FILTER COMPOSITION AMS 4000S CARBON FILTER COMPOSITION 7 - Step Comprehensive Water Purification(Standard) *Sediment filters big particles, substances, rust, and dirt, etc. *Pre-activated Carbon provides first round activated carbon filtering of impurities to improve color and tastes of water while removing odor. *Calcium removes residual chlorine in the source water.
  • Page 22: Ph Value Test

    AMS 4 0 0 0 pH VALUE TEST AMS 4000S COMPRATIVE pH TEST � Fill up to 2/3 of each provided test tube or a glass container with alkaline ionized water, acidic ionized water and tap(city) water respectively � After putting up to five drops of pH test reagent into each tube, shake the tube or container properly to mix well �...
  • Page 23: Troubleshooting

    AMS 4 0 0 0 TROUBLESHOOTING AMS 4000S Abnormal condition Cause Treatment ·Insufficient water inflow. ·Increase water inflow. ·A power cord is not properly ·Ensure that power cord is plugged plugged in. in correctly. Main power lamp does not come on. ·The fuse is blown.
  • Page 24 AMS 4 0 0 0 TROUBLESHOOTING AMS 4000S Abnormal condition Cause Treatment ·Filter life (longevity) is expired. ·Filter life is extremely shortened as ·Filter replacement is needed. poor quality water is used. Strange smell from output water ·Due to sudden change of source ·Select pH level 1~2 i.e.
  • Page 25: Unit Specifications

    AMS 4 0 0 0 UNIT SPECIFICATIONS AMS 4000S UNIT SPECIFICATIONS Product Manufacture Permission No. No.2670 by KFDA Product Classification Medical substance generator (Ionized water generator) Model AMS 4000 & AMS 4000S AC 230V 50Hz (Different voltage and Hz to be Input Voltage available as per user’s requirement) Power Consumption...
  • Page 26: Warranty Card

    AMS 4 0 0 0 WARRANTY CARD AMS 4000S WARRANTY CARD Product Model No Name Purchase Serial No date ☎ Shop name Seller Address ☎ Name Buyer Address This product passed the precise inspection under strict quality control. In case the product is found to have any defect in production or to get any spontaneous mechanical malfunction within the warranty term, return the unit to our sales agency, distributor or our service center along with this warranty sheet for repair free of charge.
  • Page 27 AMS 4 0 0 0 AMS 4000S MEMO...
  • Page 28 Such water used for quality test at the factory may remain inside of the unit Producer : ALKAMEDI CO., LTD. Address : Megavalley 601, 602-ho, 268, Hagui-ro, Dongan-gu, Anyang-si, Gyeonggi-do 14056, Rep. of Korea Ver.2 -1404 Marketed by : SUZUION TECHNOLOGIES PVT LTD.
