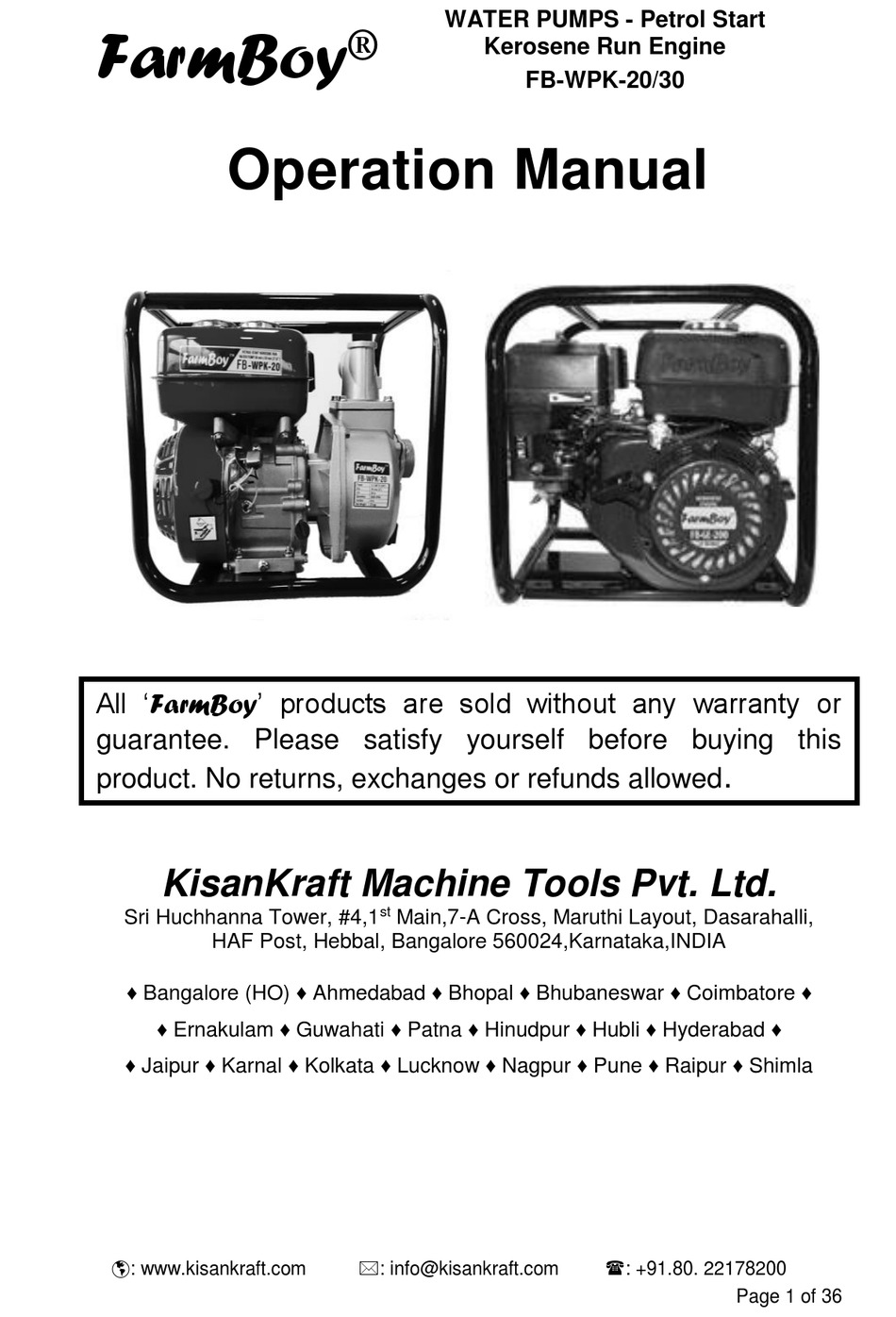

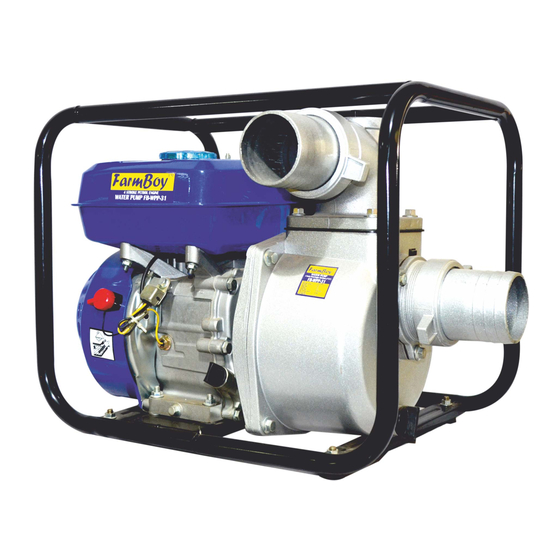

WATER PUMPS - Petrol Start
FarmBoy
®
Kerosene Run Engine
FB-WPK-20/30
Operation Manual
All 'FarmBoy' products are sold without any warranty or
guarantee. Please satisfy yourself before buying this
.
product. No returns, exchanges or refunds allowed
KisanKraft Machine Tools Pvt. Ltd.
st
Sri Huchhanna Tower, #4,1
Main,7-A Cross, Maruthi Layout, Dasarahalli,
HAF Post, Hebbal, Bangalore 560024,Karnataka,INDIA
♦ Bangalore (HO) ♦ Ahmedabad ♦ Bhopal ♦ Bhubaneswar ♦ Coimbatore ♦
♦ Ernakulam ♦ Guwahati ♦ Patna ♦ Hinudpur ♦ Hubli ♦ Hyderabad ♦
♦ Jaipur ♦ Karnal ♦ Kolkata ♦ Lucknow ♦ Nagpur ♦ Pune ♦ Raipur ♦ Shimla
: info@kisankraft.com
: +91.80. 22178200
: www.kisankraft.com
Page 1 of 36
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KISANKRAFT FarmBoy FB-WPK-20
Summary of Contents for KISANKRAFT FarmBoy FB-WPK-20
- Page 1 All ‘FarmBoy’ products are sold without any warranty or guarantee. Please satisfy yourself before buying this product. No returns, exchanges or refunds allowed KisanKraft Machine Tools Pvt. Ltd. Sri Huchhanna Tower, #4,1 Main,7-A Cross, Maruthi Layout, Dasarahalli, HAF Post, Hebbal, Bangalore 560024,Karnataka,INDIA ♦...
-
Page 2: Table Of Contents
MAINTENANCE ....................4 STORAGE......................5 TROUBLESHOOTING ..................5 TECHNICAL SPECIFICATIONS ................5 WATER PUMP PARTS DIAGRAM..............6 WATER PUMP PARTS LIST ................7 OPERATION MANUAL KEROSENE ENGINE ............8 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 2 of 36... -
Page 3: Before Getting Started
Open the crankcase cover to check the fuel level. Please add fuel when the lever is low. Check the air cleaner: • Disconnect the papilionaceous (flower petal like) nut washer and air cleaner filter. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 3 of 36... -
Page 4: Starting The Engine
Newly equip the foam filter element and air cleaner filter. Spark plug: It would be kept 0.7-0.8 mm between the spark plug and no carbon so as to assure the normal running : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 4 of 36... -
Page 5: Storage
Fix any leakage in the pipe Damage in impeller Replace the impeller TECHNICAL SPECIFICATIONS Model FB-WPK-20 FB-WPK-30 Rated power 2.5kW (3.3 hp) 3 kW(4.1hp) Displacement 163 cc 196 cc Engine Type 4-stroke : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 5 of 36... -
Page 6: Water Pump Parts Diagram
(20W 40 Grade) (20W 40 Grade) Total head lift 20 m 27 m Suction head lift Diameter of suction 50 mm (2”) 80 mm (3”) discharge pipe WATER PUMP PARTS DIAGRAM : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 6 of 36... -
Page 7: Water Pump Parts List
Cover, Taper filter 13-1.12 Turbine 13-1.28 Taper filter 13-1.13 O-Ring Part No Part Name 14-1 Water Pump Parts 14-2 Frame absorber 14-3 14-4 Spring washer 14-5 washer 14-6 Bolt 14-7 Bolt : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 7 of 36... -
Page 8: Operation Manual Kerosene Engine
Exhaust contains POISONOUS Carbon Mono Oxide gas To prevent fire hazard, please keep the Engine in operation at least 1-meter (3 feet) away from Combustible Inflammable materials, buildings equipment. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 8 of 36... -
Page 9: Www.kisankraft.com
CAUTION: Spilled fuel is a fire hazard. Do NOT cover the Engine when in operation! Do NOT connect any pipe to exhaust muffler! Do NOT tilt the Engine more than 21 degrees. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 9 of 36... -
Page 10: Www.kisankraft.com
Please check the Engine Oil Level by putting the engine on a flat surface If the oil level looks low, please check the Oil Level. Add oil to the recommended level : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 10 of 36... -
Page 11: Www.kisankraft.com
Engine will be very hard to start. (2) Do not put Petrol with Oil-mixed in it. (3) Do not put dirty, contaminated fuel Air Filter: Open Air-cleaner cover and remove the air cleaner element. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 11 of 36... -
Page 12: Www.kisankraft.com
Clean air filter element and refit it in the Air-filter of the engine. Starting the Engine (COLD START): Turn the Engine switch to ON position Put the choke in the shown position. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 12 of 36... -
Page 13: Www.kisankraft.com
11. Do not leave the rope. Do not allow rope to snap back. 12. Return the rope slowly, by hand, to the recoil starter 13. Turn the fuel cock to RUN position. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 13 of 36... -
Page 14: Www.kisankraft.com
Then pull the rope fast. Do not leave the rope. Do not allow the rope to snap back. Return the rope slowly, by hand, to the recoil starter : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 14 of 36... -
Page 15: Www.kisankraft.com
Engine Oil Check Change Air Cleaner Check Clean Check, Spark Plug Clean, Readjust Muffler Clean Cylinder Head Clean Fuel Filter & Chang Clean Fuel Pipe Check, Valves Readjust Important: : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 15 of 36... -
Page 16: Www.kisankraft.com
Remove the Spark Plug Clean the carbon deposits Measure the gap – it should be 0.6- 0.7 mm If necessary, replace the spark plug Note: Always use genuine spare parts only. STORAGE : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 16 of 36... -
Page 17: Www.kisankraft.com
Close the oil drain bolt and Fill new recommended oil to the tighten it max level Pull the recoil starter slowly until Pack it in a closed box and store resistance is left : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 17 of 36... -
Page 18: Www.kisankraft.com
Kerosene Tank 3.8 L Petrol Tank 0.2 L 0.4 L Lube Oil Tank 0.6 L 0.7 L PTO Shaft Keyway and internal Counter clockwise from drive’s end PTO Shaft Rotation : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 18 of 36... -
Page 19: Www.kisankraft.com
Check both fuel levels fuel reaching carburetor? Is there good spark in the Spark Plug? If you are still not able to start it, please take the engine to the authorized dealer. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 19 of 36... -
Page 20: Www.kisankraft.com
Current Amplifier Sway bar Split Clip Side Plate Ball Bearing 6205 Oil seal 25x41.25x6 Wind guide Drain bolt Washer Drain bolt 1-10 Set pin 8x14 1-11 Centrifugal gear (set) 1-12 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 20 of 36... -
Page 21: Www.kisankraft.com
Bolt M6 x 10 1-14 Bolt M6 x 14 1-15 Bolt M6 x 12 1-16 Bolt M6 x 20 1-17 Rubber wire hoop 1-18 Washer Slip Cap 6x15x0.5 1-19 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 21 of 36... -
Page 22: Www.kisankraft.com
Flat Key 2-5.5 Ignition Coil Assembly Ignition Coil 2-6.1 Stop lead 2-6.2 Spark Plug Cap 2-6.3 Spark Plug Assembly. Spark plug 2-7.1 Washer, Spark Plug 2-7.2 Bolt 6 x 25 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 22 of 36... -
Page 23: Www.kisankraft.com
Oil Seal 25x41.25x6 Ball Bearing 6205 Gasket crankcase oil gauge assembly Oil Gauge 3-5.1 seal-oil gauge 3-5.2 Bolt M8 x 30 Oil Plug assembly Oil plug 3-7.1 Seal Oil Plug 3-7.2 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 23 of 36... -
Page 24: Www.kisankraft.com
Washer - recoil 5x17x0.5 4-1.5 Friction Spoil 16x1 4-1.6 Ratchet Spring 5.5x0.2 4-1.7 Roller 4-1.8 Starter spring 4-1.9 1-10 Starter cover 4-1.10 1-11 Rope 4-1.11 1-12 Pulley handle 4-1.12 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 24 of 36... -
Page 25: Www.kisankraft.com
Set pin 10x14 Bolt M8 x 60, 22 Stud Exhaust M8 x 32 Stud Intake M6 x 113 Cylinder head Assembly Gasket Cylinder head cover Cylinder head cover Bolt M6x12 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 25 of 36... -
Page 26: Www.kisankraft.com
Valve Spring Spring seat Intake Valve Rocker Ass. Stud Rocker Assembly 6-9.1 Rocker 6-9.2 Adjust Nut Sphere 6-9.3 Lock Nut 6-9.4 Spring Seat Exhaust Valve 6-10 Cap Exhaust valve 6-11 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 26 of 36... -
Page 27: Www.kisankraft.com
Piston Pin Clip Piston Pin Piston Ring Assembly First air ring 7-5.1 Second air ring 7-5.2 Oil ring Ass. 7-5.3 5-3.1 Scraper ring 7-5.3.1 5-3.2 Set off ring 7-5.3.2 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 27 of 36... -
Page 28: Www.kisankraft.com
Speed Adjustment Base Ass. 8-1.1 Adjustment Spring 8-1.2 Adjustment Screw 8-1.3 Speed Adjustment arm Return Spring Fine Adjustment Spring Pulling Rod Quadrate bolt M6x21 Nut M6 Bolt M6 x 12 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 28 of 36... -
Page 29: Www.kisankraft.com
Throttle Valve Cap 9-1.2.1 1-2.2 Throttle Valve axis 9-1.2.2 1-2.3 Throttle Valve 9-1.2.3 1-2.4 Screw M4x12 9-1.2.4 Chock Valve Assembly 9-1.3 1-3.1 Chock Valve cap 9-1.3.1 1-3.2 Chock Valve axis 9-1.3.2 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 29 of 36... -
Page 30: Www.kisankraft.com
Tighten bolt (Fuel cup) 9-1.17 1-18 O-ring 11x1.5 9-1.18 1-19 Hand grip chock valve Assembly 9-1.19 1-20 Sediment cup 9-1.20 1-21 O-ring 21x2 9-1.21 1-22 Fuel Valve 9-1.22 1-23 Handle Bar 9-1.23 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 30 of 36... -
Page 31: Www.kisankraft.com
Air Cleaner (Hemi -Dry type) Sl. No Part Name Part No Air Cleaner Assembly 10-1 Air Cleaner Seat Ass. 10-1.1 1-1.1 Air Cleaner seat 10-1.1.1 1-1.2 Seal Ring 10-1.1.2 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 31 of 36... -
Page 32: Www.kisankraft.com
10-1.2.2 1-2.3 Rubber Fixer 10-1.2.3 1-2.4 Decal Washer 10-1.2.4 Filter Case 10-1.3 Butter Fly nut M6 10-1.4 Seal Ring 32x47x3 10-1.5 Air duck 10-1.6 Nut M6 10-2 Muffler Parts : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 32 of 36... -
Page 33: Www.kisankraft.com
Screw M5 x 8 11-1.3 Spring washer Φ5 11-1.4 Washer Φ 5 11-1.5 Washer Φ 8 11-2 Spring Φ 8 11-3 Nut M8 11-4 Gasket (Exhaust Part) 11-5 Fuel Tank-kerosene Engine : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 33 of 36... -
Page 34: Www.kisankraft.com
1-4.2 Fuel joint 12-1.4.2 Fuel tube 8.5x4.5 12-2 Clip Fuel tube 12-3 Bolt M6 x 28 12-4 Nut M6 12-5 Fuel joint 12-6 Bracket 12-7 Fuel tube 8.5x4.5 12-8 : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 34 of 36... -
Page 35: Www.kisankraft.com
KisanKraft ® PRODUCT RANGE KisanKraft has a large range of products to serve the farmers. A list of our products is given below: Brush Cutters and Accessories Cultivators and Accessories Brush Cutter/Power Weeder Petrol and Diesel Backpack Brush Cutter Sprayers and Accessories... - Page 36 KisanKraft ® Wide Range of Products for Every Need MISSED CALL: 07676065555 For more information give Many of our products have BIS: ISI certification. : info@kisankraft.com : +91.80. 22178200 : www.kisankraft.com Page 36 of 36...
